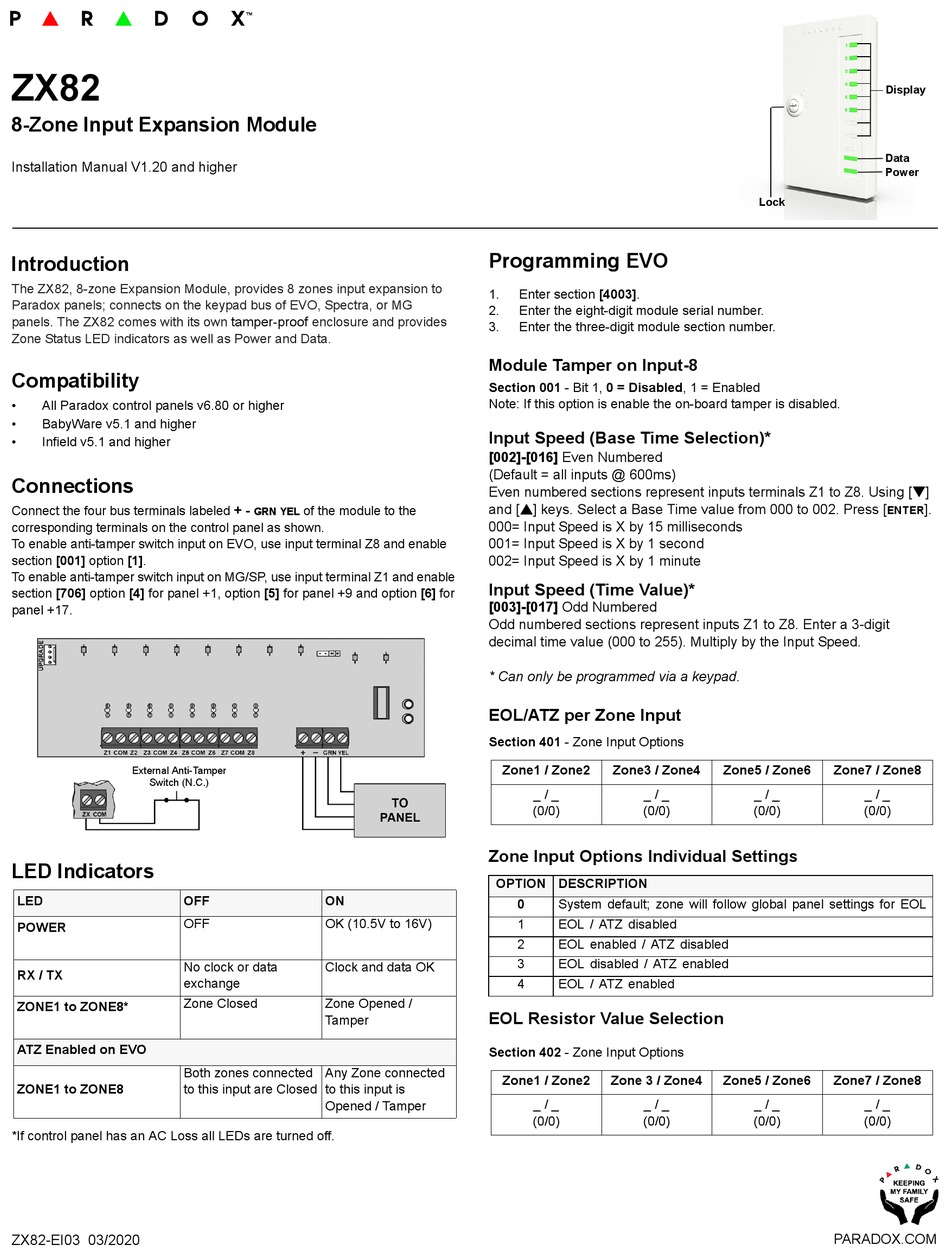

Paradox ZX82 Installation Manual

ZX82
8-Zone Input Expansion Module
Installation Manual V1.20 and higher
Introduction

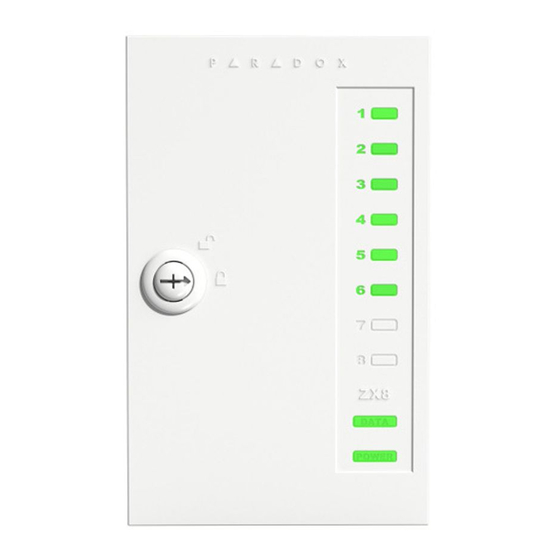

The ZX82, 8-zone Expansion Module, provides 8 zones input expansion to
Paradox panels; connects on the keypad bus of EVO, Spectra, or MG
panels. The ZX82 comes with its own
Zone Status LED indicators as well as Power and Data.
Compatibility
• All Paradox control panels v6.80 or higher
• BabyWare v5.1 and higher
• Infield v5.1 and higher
Connections
Connect the four bus terminals labeled + -
corresponding terminals on the control panel as shown.
To enable anti-tamper switch input on EVO, use input terminal Z8 and enable
section [001] option [1] .
To enable anti-tamper switch input on MG/SP, use input terminal Z1 and enable
section [706] option [4] for panel +1, option [5] for panel +9 and option [6] for
panel +17 .
External Anti-Tamper
Switch (N.C.)
LED Indicators
LED OFF
OFF
POWER
No clock or data
RX / TX
exchange
Zone Closed
ZONE1 to ZONE8*
ATZ Enabled on EVO
Both zones connected
ZONE1 to ZONE8 to this input are Closed
*If control panel has an AC Loss all LEDs are turned off.
ZX82-EI03 03/2020
tamper-proof enclosure and provides
of the module to the
GRN YEL
ON
OK (10.5V to 16V)
Clock and data OK
Zone Opened /
Tamper
Any Zone connected
to this input is
Opened / Tamper
Programming EVO
1. Enter section [4003].
2. Enter the eight-digit module serial number.
3. Enter the three-digit module section number.
Module Tamper on Input-8
Section 001 - Bit 1, 0 = Disabled, 1 = Enabled
Note: If this option is enable the on-board tamper is disabled.
Input Speed (Base Time Selection)*
[002]-[016] Even Numbered
(Default = all inputs @ 600ms)
Even numbered sections represent inputs terminals Z1 to Z8. Using []
and [] keys. Select a Base Time value from 000 to 002. Press [
000= Input Speed is X by 15 milliseconds
001= Input Speed is X by 1 second
002= Input Speed is X by 1 minute
Input Speed (Time Value)*
[003]-[017] Odd Numbered
Odd numbered sections represent inputs Z1 to Z8. Enter a 3-digit
decimal time value (000 to 255). Multiply by the Input Speed.
* Can only be programmed via a keypad.
EOL/ATZ per Zone Input
Section 401 - Zone Input Options
Zone1 / Zone2 Zone3 / Zone4
_ / _ _ / _
(0/0) (0/0)
Zone Input Options Individual Settings
OPTION DESCRIPTION
0 System default; zone will follow global panel settings for EOL
1 EOL / ATZ disabled
2 EOL enabled / ATZ disabled
3 EOL disabled / ATZ enabled
4 EOL / ATZ enabled
EOL Resistor Value Selection
Section 402 - Zone Input Options
Zone1 / Zone2 Zone 3 / Zone4
_ / _ _ / _
(0/0) (0/0)
Display
Data
Power
Lock
ENTER
Zone5 / Zone6 Zone7 / Zone8
_ / _ _ / _
(0/0) (0/0)
Zone5 / Zone6 Zone7 / Zone8
_ / _ _ / _
(0/0) (0/0)
