Paradox ZX22 Installation Manual

ZX22
Magellan Wireless 2-Zone Input
Expansion Module
Installation Manual V1.0 and higher

Introduction

The ZX22 is the Magellan wireless two-zone input and tamper
supervision expansion module with ultra-low power consumption.

Compatibility

• MG5000/MG5050 v4.92, MG5050+ v1.00., MG5075 v1.03
or higher versions
• SP5500/SP6000/SP7000 v7.14 and higher (with an RTX3)
• SP4000/SP65 v5.40 and higher (with an RTX3)
• EVO192 and EVOHD v7.31 and higher (with an RTX3)
• BabyWare v5.4.8 and higher
• InField v5.5.2 and higher

Connections

Connect the terminals to 3-15 VDC. Connect the tamper terminals
+ -
to an external tamper switch, if available.
COM and TMP
Important: Do not remove the double-sided tape, removing might
damage electrical components and malfunction the unit.
INFIELD
LEARN
UPGRADE SWITCH JP2 JP1

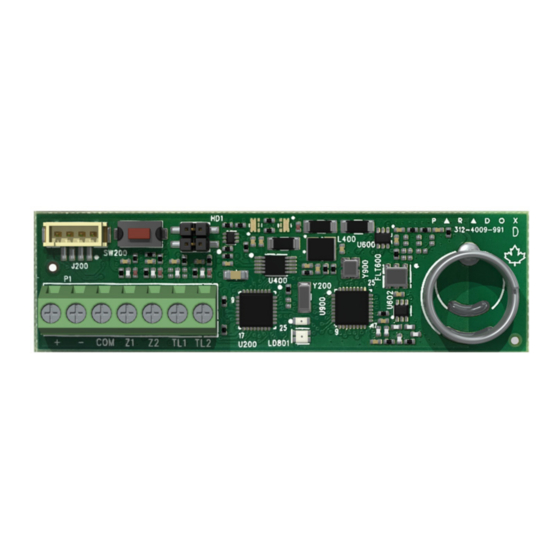

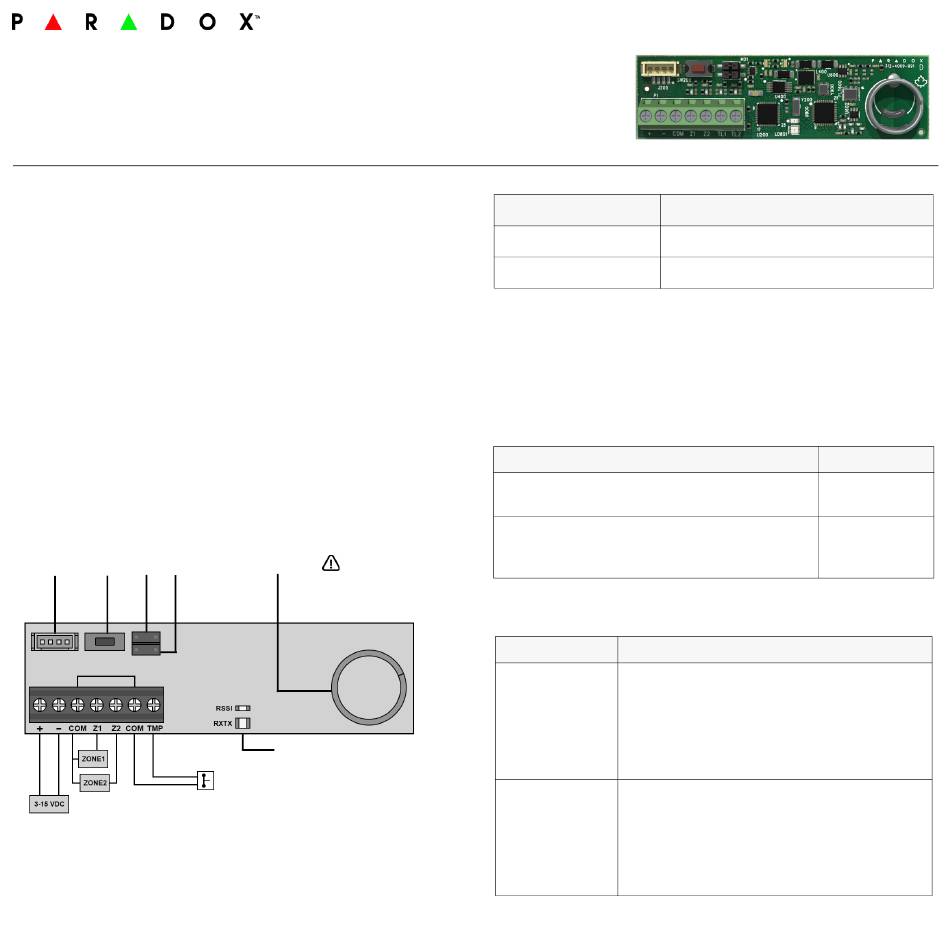

FIGURE 1: ZX22 PCB Layout
NOTE: If you switch the input voltage value higher or lower, please
wait 15 seconds before reconnecting power.
ZX22-EI01 03/2022
ANTENNA DO NOT CUT,
BEND, OR ALTER
THE ANTENNA.
LEDS
EXTERNAL TAMPER
SWITCH (N.C.)

LED Indicators

LED OFF
Receiving data / Transmitting data
RX (Green) / TX (Red)
For future use / M2 system
RSSI
NOTE: The RX/TX LED will stop blinking five minutes after power up to
save battery.

Learn Mode

(Within one minute of power up)
Learn mode allows you to teach the panel the serial numbers of Zone
1 and 2.
Input
Zone 1
Press and release the Learn button once
Zone 2
Press and release the Learn button twice within
one second

Jumpers

Jumper Description
ON (Normally Closed)
Z1 Closed = "Zone Closed" signal
Z1 Open = "Zone Open" signal
JP1 (Z1)
OFF (Normally Open)
Z1 Closed = "Zone Open" signal
Z1 Open = "Zone Closed" signal
ON (Normally Closed)
Z2 Closed = "Zone Closed" signal
Z2 Open = "Zone Open" signal
JP2 (Z2)
OFF (Normally Open)
Z2 Closed = "Zone Open" signal
Z2 Open = "Zone Closed" signal
Serial Number
SN
(e.g., 240 000)
SN+1
(e.g., 240 001)
PARADOX.COM
