π

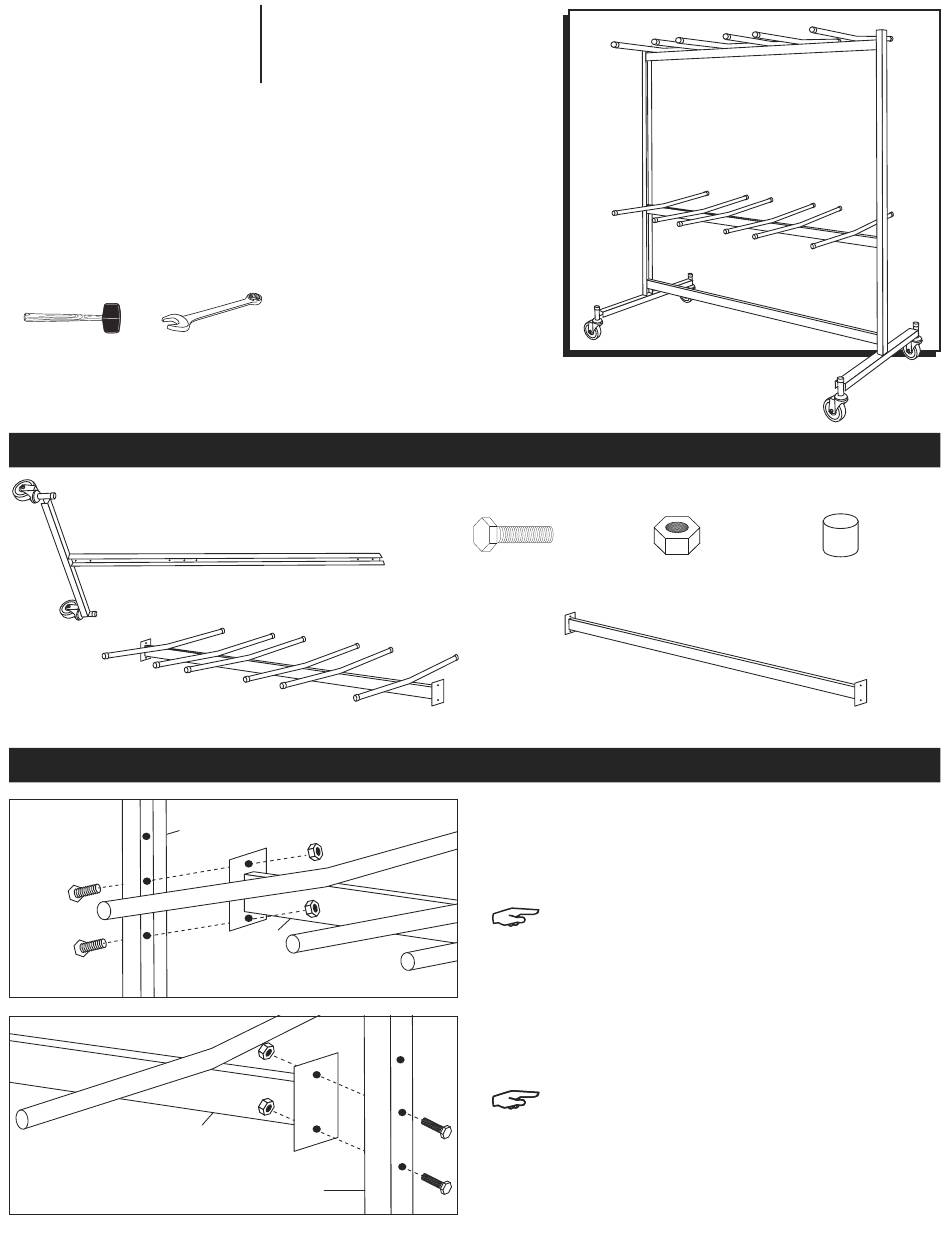

H-2789
FOLDING CHAIR
DOLLY – 2 TIER
TOOLS NEEDED
Rubber Mallet
Wrench
Crossbeam with Chair Hanger x 2
Figure 1
A
Figure 2
PAGE 1 OF 2
1-800-295-5510
uline.com
T-Bar x 2
B
B
A
PARTS
Nut x 12
ASSEMBLY
1.
Ensure there are no missing or damaged parts.
2. While holding up one of the T-bars (A), bolt
crossbeam (B) into the middle set of holes.
(See Figure 1)
NOTE: There are three holes in the middle set.
Use the two lower holes. (See Figure 1)
3. Bolt the other side of the crossbeam (B) to the
opposite T-bar (A) in the middle set of holes.
(See Figure 2)
NOTE: There are three holes in the middle set.
Use the two lower holes. (See Figure 2)
Bolt x 12
End Cap x 24
Base Crossbeam x 1
0319 IH-2789
Advertisement
Table of Contents
Related Manuals for U-Line H-2789
Summary of Contents for U-Line H-2789
- Page 1 π H-2789 1-800-295-5510 uline.com FOLDING CHAIR DOLLY – 2 TIER TOOLS NEEDED Rubber Mallet Wrench PARTS Nut x 12 Bolt x 12 End Cap x 24 T-Bar x 2 Crossbeam with Chair Hanger x 2 Base Crossbeam x 1 ASSEMBLY Ensure there are no missing or damaged parts.
- Page 2 ASSEMBLY CONTINUED 4. Bolt the second crossbeam (B) to the top set of holes Figure 3 of each T-bar (A). (See Figure 3) 5. Finally, bolt base crossbeam (C) to the bottom set of holes of each T-bar (A). (See Figure 4) Figure 4 6.
