Altronix TROVE T1RM3F4 Installation Manual page 5

1. Fasten spacers onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 4, pg. 5).
2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 4a, pg. 5).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
Mercury Access Controller
EP1502, MR52, MR16IN, MR16OUT
EP2500, MUX8
EP1501, MR51e
MR50
Fig. 4
A
B
D
A
B
D
T1RM3F4(D)
T1RM3F4(D): Configuration of Mercury Boards:
To IEC
connector
C
PWR1+
C
COM(-)
VR6 in mounted under PDS8(CB)
eFlow6NB
--- BAT + --- DC +
PDS8(CB)/VR6
P P
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
N
PWR1+ 1 2 3 4 5 6 7 8
Common Power Outputs (NEG)
TRIGGER
INPUT TRG
IN GND IN GND IN GND IN GND
1 2 3 4
ACM4(CB)
MAIN
NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
Pan Head Screw
Power Supply or
Sub-Assembly
Backplane
OFF - 24V
ON - 12V
PWR1+
N
COM(-)
PWR2+
RoHS
ACM4
ACCESS POWER
CONTROLLER
Pem Mounting
A
B
C
D

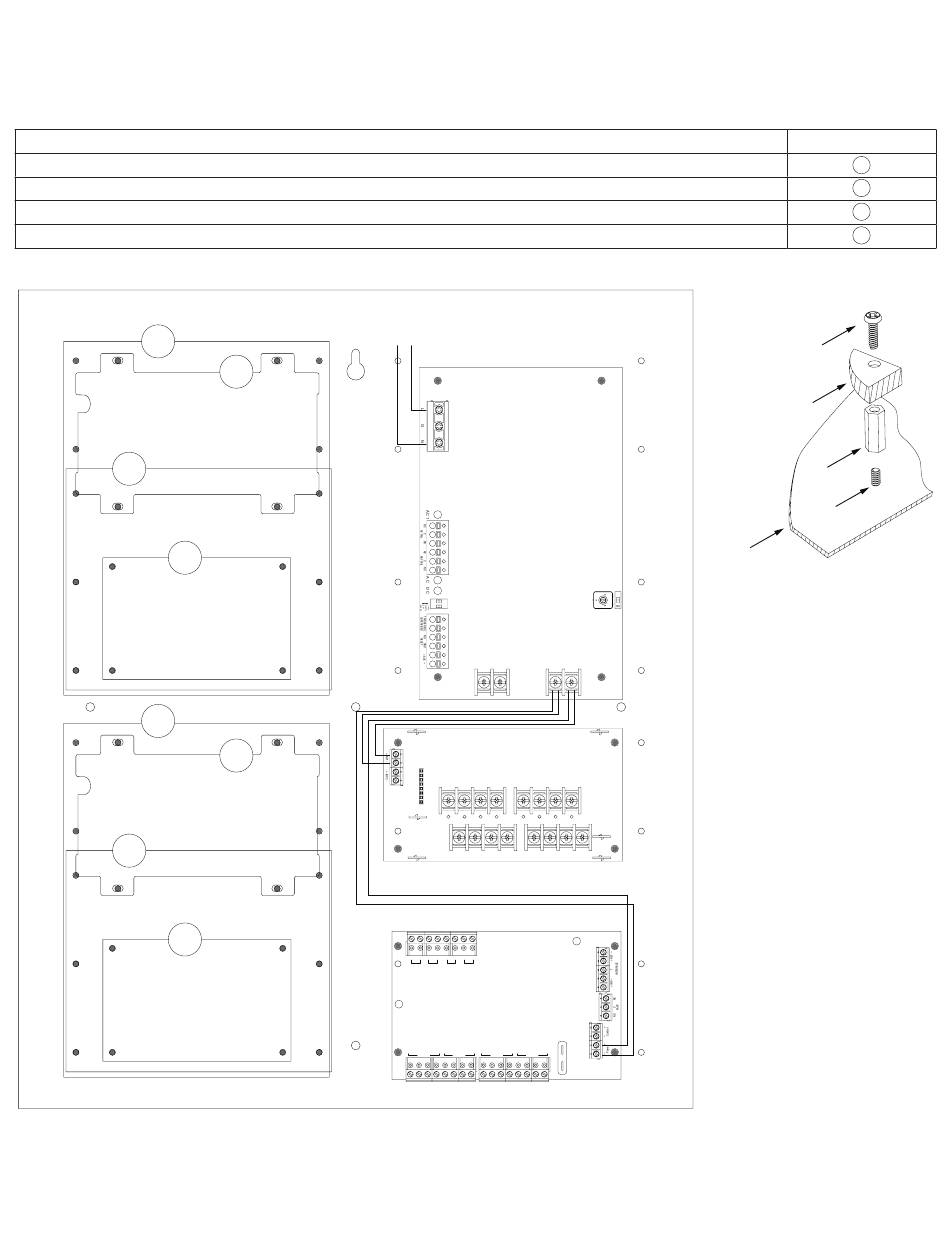

Fig. 4a
Spacer
Pem
