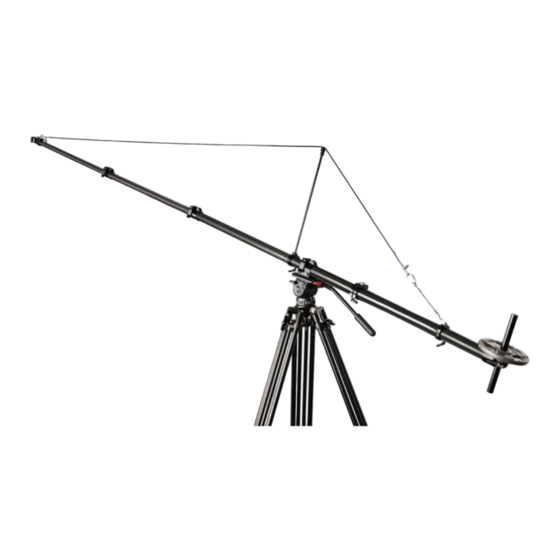

Fly-master 13ft Telescopic Carbon Fiber
Jib Crane
(JB-FLMS-01)
A s s e m b l y M a n u a l

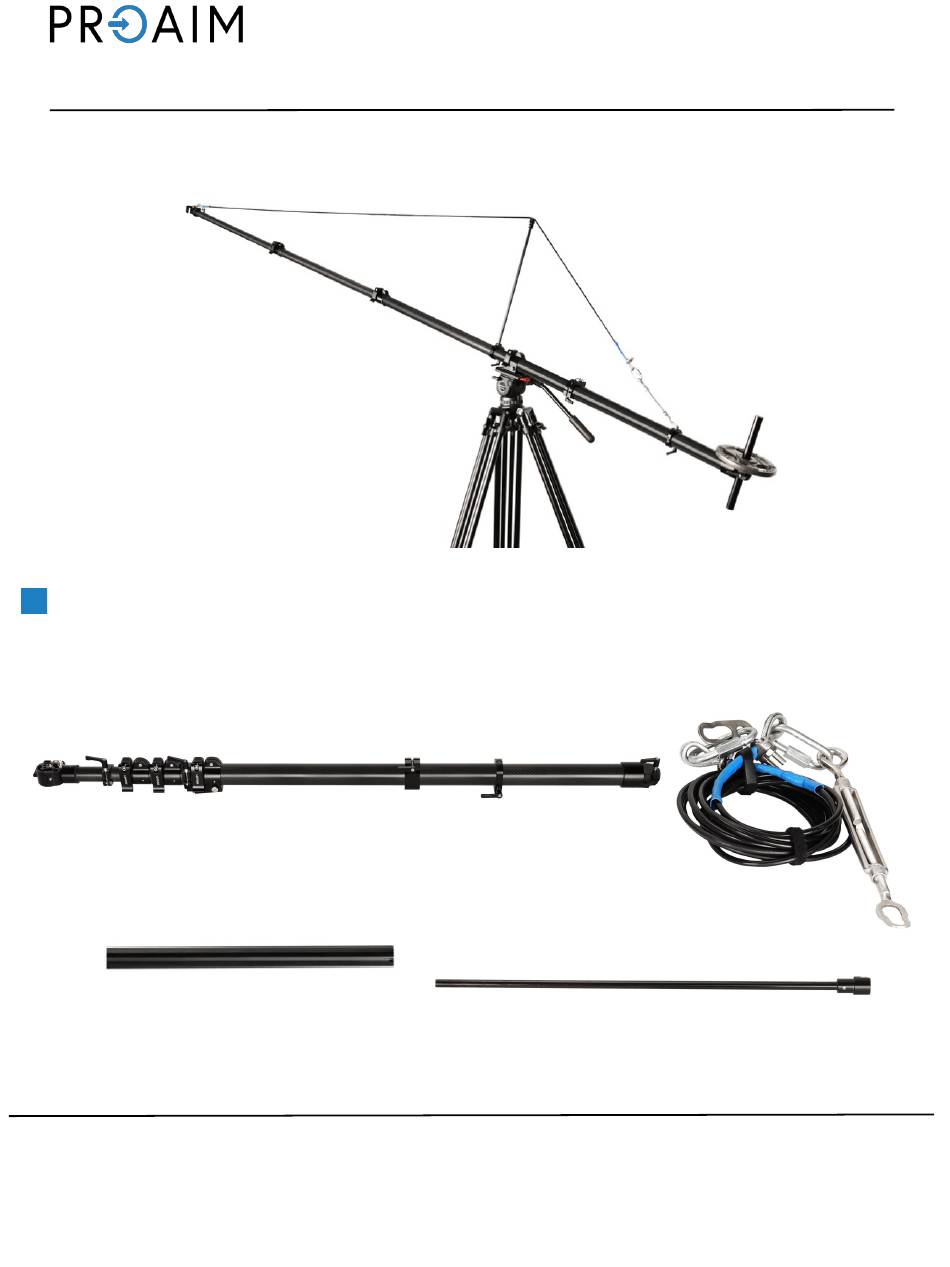

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Fly-Master Jib for Zhiyun Crane-2
Top Cable Wire
Weight Rod
Cable Guide Rod
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Table of Contents
Related Manuals for PROAIM JB-FLMS-01
Summary of Contents for PROAIM JB-FLMS-01
- Page 1 Fly-master 13ft Telescopic Carbon Fiber Jib Crane (JB-FLMS-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Fly Master Jib Setup Loosen the bottom clamp of the fluid head (Not Included) and mount it on the stand. Then properly tighten the bottom clamp on the 100mm bowl stand (Not Included), as shown in the image. NOTE: It comes with a tripod mount with 1/4"...
- Page 3 Loosen the knob and increase the height of the jib as shown in the image. NOTE: You can increase the lengths of jib as per requirement. Gimbal Setup Loosen the ratchet knob and open the clamp. Then remove the Gimbal mounting adapter, as shown in the image.
- Page 4 NOTE: It’s compatible with Zhiyun Crane-2 & other hand-held gimbals with 1/4” or 3/8” Mounting threads. Inserting weight rod in Fly master jib Loosen the knob and insert the weight rod. Properly tighten the knob. NOTE: Provided highly robust weight rod supports universal weight plates with a 25mm hole diameter.
- Page 5 Attaching Top cable wire Properly attach the first end of the top cable wire to the clamp. Similarly, insert the second end of the wire into the clamp, as shown in the image NOTE: It facilitates convenient underslung & over-slung operations for various shot requirements.
- Page 6 LCD Monitor Setup Properly match the threads of the LCD (Not Included) and mount the LCD, as shown in the image. Then properly tighten with the help of the knob. NOTE: Tripod mount also has a total of three 1/4"-20 threaded holes on the sides to attach monitors &...
- Page 7 YOUR PROAIM FLY-MASTER TELESCOPIC CARBON FIBER JIB CRANE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
