PROAIM Cinema Series Comet Assembly Manual

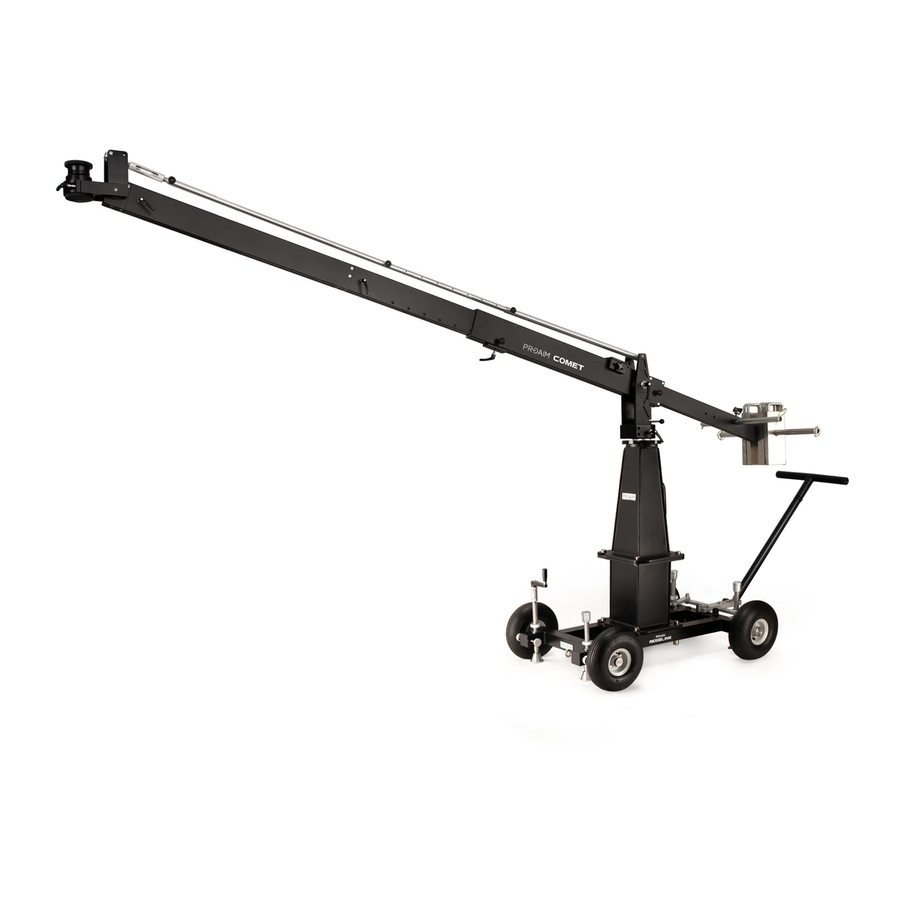

12ft euro cinema jib
Hide thumbs

Advertisement

Table of Contents

1
Comet 12ft Euro Cinema Jib
(JB-COMT)
A s s e m b l y M a n u a l

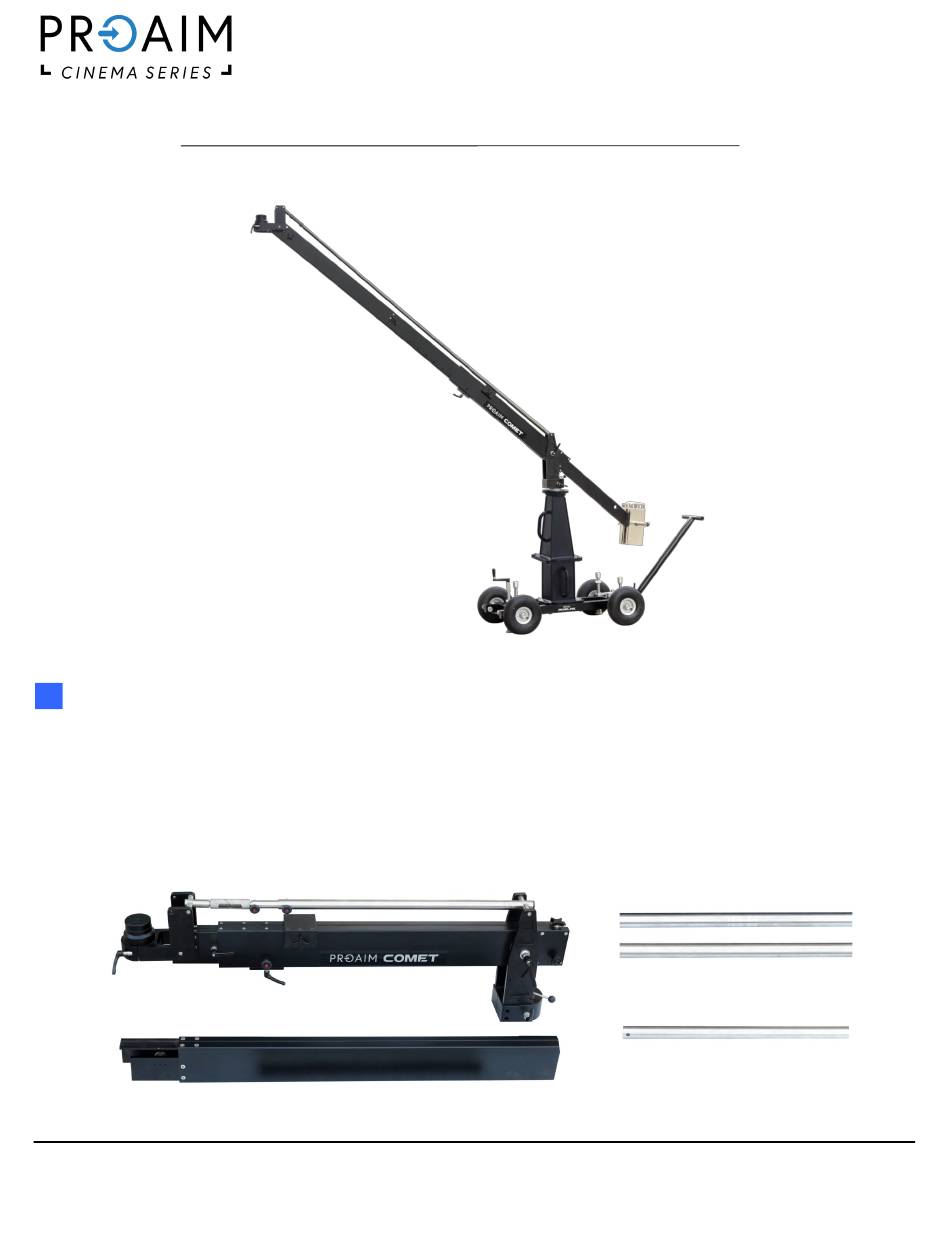

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
NOTE: If you have purchased (JB-COMT-01) kit, you will receive the following:
2 x Counterweight Rods
Proaim 7ft Comet Jib
1 x 3ft Extension Rod
1 x 3ft Extension Arm
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
