1.2
Required Software
The following software is required to operate the ADS54J69EVM and available online. See
Section 1.4
for links.
•
ADS54Jxx EVM GUI
The following software is required to operate the TSW14J56EVM and available online. See
Section 1.4
for links.
•
High Speed Data Converter Pro software, version 4.1 or higher
•
HSDC Pro GUI Updates (Rev. I) for High Speed Data Converter Pro Software, version 4.0 or lower
1.3
Evaluation Board Feature Identification Summary
The EVM features are labeled in
+5-V Input Power
Connector
USB Connector
(Backside)
Channel B
Analog Input
External
ADC Clock
Input
Channel A
Analog Input
1.4
References
•
ADS54Jxx EVM software, available at:
•
ADS54J69 datasheet (SBAS713), available at
•
LMK04828 datasheet (SNAS605), available at
•
TSW14J56EVM User's Guide (SLWU086), available at
•
High Speed Data Converter Pro software (SLWC107) and User's Guide (SLWU087), available at
www.ti.com/tool/dataconverterpro-sw
•
HSDC Pro GUI Updates (SLWC106), available at
NOTE: Schematics, layout, and BOM are available on the
www.ti.com.
SLAU662B – January 2016 – Revised May 2016
Submit Documentation Feedback
Figure
1.
ADC
ADC Reset Switch

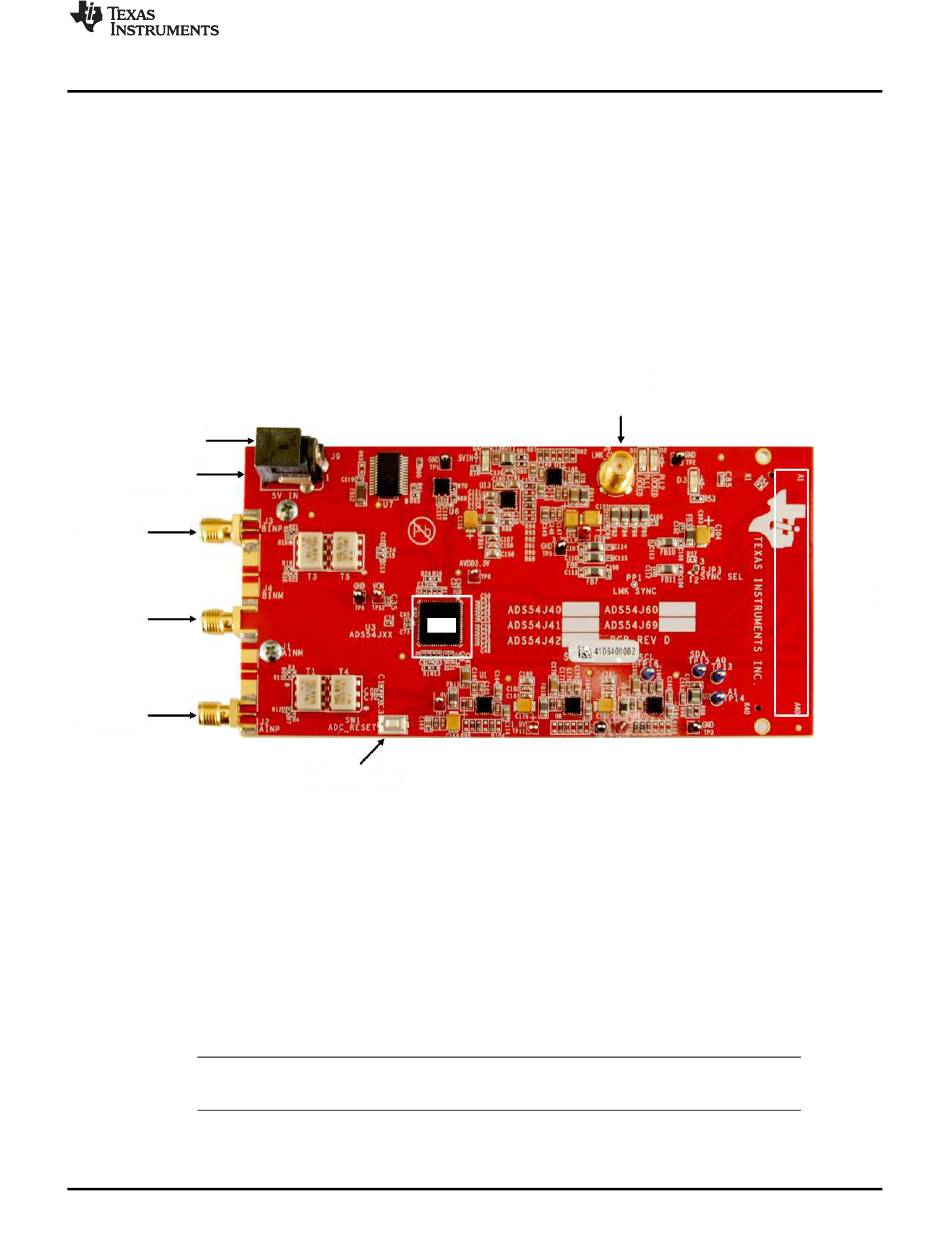

Figure 1. EVM Feature Locations
www.ti.com/tool/ADS54J69EVM
www.ti.com/product/ADS54J69
www.ti.com/product/lmk04828
Copyright © 2016, Texas Instruments Incorporated
LMK04828
Reference
Input
www.ti.com/tool/TSW14J56EVM
www.ti.com/tool/dataconverterpro-sw
ADS54J69EVM
product page on
Overview
References,
References,
FMC
Connector
(Backside)
