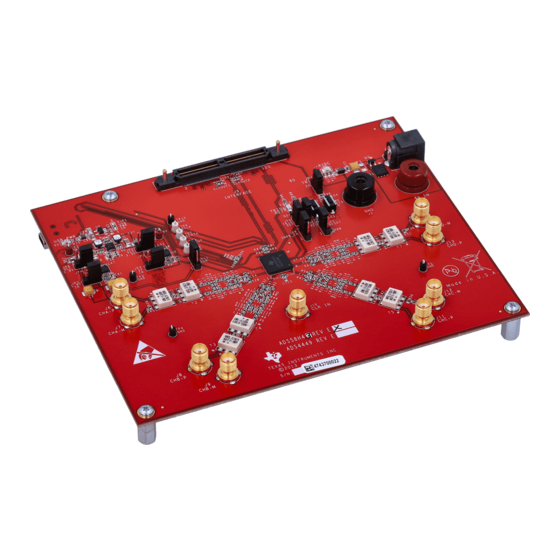

This document serves as a user's guide for the ADS58H4x (ADS58H40/ADS58H43) Evaluation Module
(EVM). The EVM provides a platform for evaluating the ADS58H40 or the ADS58H43, a quad-channel,
14-bit telecommunications analog-to-digital converter (ADC) operating at sampling rates of up to 250
MSPS. Designed for low-power consumption and high spurious free dynamic range (SFDR), the ADC has
low-noise performance and outstanding SFDR over a large input-frequency range.
The four ADC channels are separated into two blocks with two ADCs each. Each block can individually be
configured into three different operating modes: 11-bit Operating mode, 11-bit SNRBoost mode, 14-bit
High Resolution Burst mode.
This EVM is ideally suited for mating with the TSW1400 Capture Card for performing a data capture into a
capture buffer, uploading the sample data to a PC, performing an FFT, and reporting on SNR, SFDR, and
other performance metrics.
For more information regarding the ADS58H4x and the related evaluation tools, please refer to the
following:
ADS58H40 - Quad 14-bit 250-MSPS ADC with SNRBoost and Burst Mode (SBAS589)
TSW1400 - High-Speed Data Capture and Pattern Generation Platform (SLWU079)
ADS58H40 EVM Configuration Software (SLAC533). This software is compatible for both ADS58H40
and ADS58H43.
...................................................................................................................
1
1.1
1.2
1.3
1.4
2
2.1
2.2
3
3.1
3.2
3.3
3.4
1
2
3
4
5
6
7
8
9
10
SLAU455B - August 2012 - Revised May 2016
Submit Documentation Feedback
ADS58H4x (ADS58H40/ADS58H43) EVM
................................................................................................
.................................................................................................
...................................................................................
.............................................................................................................
.............................................................................................
.................................................................................................
......................................................................................................
...............................................................................................
..........................................................................................
List of Figures
..............................................................................
...............................................................................
..............................................................................................
.............................................................................................
......................................................................................................
................................................................................
..............................................................................................
Copyright © 2012-2016, Texas Instruments Incorporated
SLAU455B - August 2012 - Revised May 2016
Contents
..........................................................................
........................................................................
.......................................................................
.....................................................................
................................................................
.................................................
ADS58H4x (ADS58H40/ADS58H43) EVM
User's Guide
2
2
3
4
6
7
7
7
10
10
11
11
11
2
3
4
6
6
8
9
10
12
12
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADS58H4 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments ADS58H4 Series

  • Page 1: Table Of Contents

    ADS58H4x and TSW1400 Test Setup Block Diagram ..........Select ADS58H40 in the High Speed Converter Pro GUI Program ....................Load ADC Firmware Prompt SLAU455B – August 2012 – Revised May 2016 ADS58H4x (ADS58H40/ADS58H43) EVM Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
  • Page 2: Introduction

    CH C DCD[0]/OVRCD DCD[1:13]P/M 14-bit CH D CLKOUTCDP/M Power Supply Circuits 6 V only Figure 1. Simplified ADS58H4x EVM Block Diagram ADS58H4x (ADS58H40/ADS58H43) EVM SLAU455B – August 2012 – Revised May 2016 Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
  • Page 3: Evm Power Supply

    The low-noise LDOs can be bypassed, allowing the DC/DC power supply to directly power the ADC. In this implementation, adjust the feedback resistors of the DC/DC converter accordingly. SLAU455B – August 2012 – Revised May 2016 ADS58H4x (ADS58H40/ADS58H43) EVM Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
  • Page 4: Evm Connectors And Jumpers

    CH B input (positive) CH B input (negative) DNI ADC clock input CH C input (positive) CH C input (negative) DNI ADS58H4x (ADS58H40/ADS58H43) EVM SLAU455B – August 2012 – Revised May 2016 Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
  • Page 5 While JP12 is set in the 2-3 position, pressing SW2 allows the ADC to enter burst mode. This can also provide the initial pulse needed start the auto-burst process. SLAU455B – August 2012 – Revised May 2016 ADS58H4x (ADS58H40/ADS58H43) EVM Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
  • Page 6: Evm Adc Input Circuit Configurations

    For ADC evaluation, set the signal generator output to 10 dBm. 0.1 PF CLK IN 121 : 0.1 PF 121 : 0.1 PF Figure 5. ADS58H4x Clock Input Circuit ADS58H4x (ADS58H40/ADS58H43) EVM SLAU455B – August 2012 – Revised May 2016 Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
  • Page 7: Software Control

    ADS58H4x and a SNRBoost/Burst Mode tab for control of the special data capture modes. The GUI tabs provide a convenient and simplified interface to the most-used registers of each device. SLAU455B – August 2012 – Revised May 2016 ADS58H4x (ADS58H40/ADS58H43) EVM Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
  • Page 8: Ads58H4X Main Panel

    Software Control www.ti.com 2.2.1 Control Options Figure 6. ADS58H4x Main Panel ADS58H4x (ADS58H40/ADS58H43) EVM SLAU455B – August 2012 – Revised May 2016 Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
  • Page 9: Ads58H4X Snrboost/Burst Mode Panel

    Note: Reset the board after every power cycle and click the Reset USB button on the GUI • Exit: Stops the program SLAU455B – August 2012 – Revised May 2016 ADS58H4x (ADS58H40/ADS58H43) EVM Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
  • Page 10: Basic Test Procedure

    Channels Synchronized Sources Signal Signal Generator Generator (Input Source) (CLK Source) Figure 8. ADS58H4x and TSW1400 Test Setup Block Diagram ADS58H4x (ADS58H40/ADS58H43) EVM SLAU455B – August 2012 – Revised May 2016 Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
  • Page 11: Test Set-Up Connection

    (a) For 11-bit Operating Mode or 11-bit SNRBoost Mode, select the ADS58H40-11b device. (b) For 14-bit High Resolution Burst Mode, select the ADS58H40-14b device. SLAU455B – August 2012 – Revised May 2016 ADS58H4x (ADS58H40/ADS58H43) EVM Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
  • Page 12: Select Ads58H40 In The High Speed Converter Pro Gui Program

    170 MHz. 7. Select channel A, B, C, or D depending on which channel is connected to the signal generator. ADS58H4x (ADS58H40/ADS58H43) EVM SLAU455B – August 2012 – Revised May 2016 Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
  • Page 13 FFT screen or by entering the frequency location at the lower left-hand side of the High Speed Data Converter GUI. SLAU455B – August 2012 – Revised May 2016 ADS58H4x (ADS58H40/ADS58H43) EVM Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
  • Page 14 4. On the High Speed Data Converter Pro menu, select Data Capture Options → Trigger Option. Check both Trigger Mode Enable and Software Trigger Enable. ADS58H4x (ADS58H40/ADS58H43) EVM SLAU455B – August 2012 – Revised May 2016 Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
  • Page 15 7. Press the Capture button on the High Speed Data Converter Pro GUI. 8. Observe an FFT result similar to that of Figure SLAU455B – August 2012 – Revised May 2016 ADS58H4x (ADS58H40/ADS58H43) EVM Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
  • Page 16 NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from A Revision (October 2012) to B Revision ....................Page ................• Changed the entire Test Set-up Connection section. Revision History SLAU455B – August 2012 – Revised May 2016 Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated...
