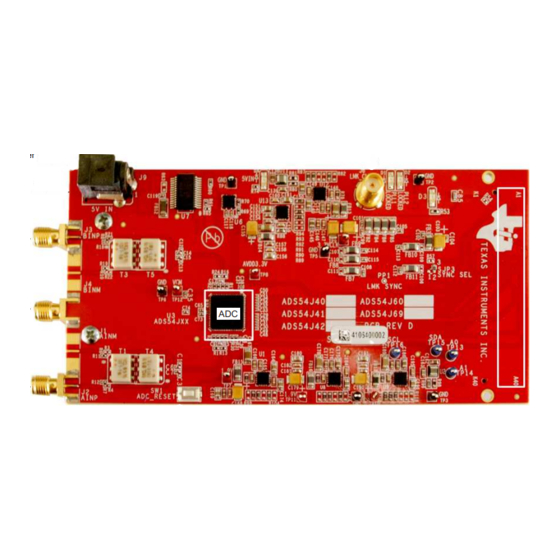

This user's guide describes the function and use of the ADS54J42 evaluation module. Included in this
document are a quick-start guide, instructions for optimizing evaluation results, software description,
alternate hardware configurations, and jumper, connector, and LED descriptions.
......................................................................................................................
1
1.1
1.2
1.3
1.4
2
2.1
2.2
2.3
2.4
3
3.1
3.2
3.3
4
4.1
4.2
5
5.1
5.2
1
2
3
4
5
6
7
8
9
1
2
3
4
5
Microsoft, Windows are registered trademarks of Microsoft Corporation.
SLAU674 - February 2016
Submit Documentation Feedback
.................................................................................................
..................................................................................................
..........................................................................................................
............................................................................................................
................................................................................................
.......................................................................................
.........................................................................................
.....................................................................................
............................................................................................
.............................................................................................
............................................................................................
................................................................................................
.......................................................................................................
..............................................................................................
....................................................................................................
......................................................................................
..................................................................................................
.............................................................................................
.....................................................................................................
......................................................................................................
......................................................................................
.................................................................................................
..............................................................................................................
.......................................................................................................
......................................................................................................
...........................................................................................
.................................................................................
........................................................................................................
................................................................................
........................................................................................
..................................................................................................
Copyright © 2016, Texas Instruments Incorporated
Contents
.............................................................
....................................................................
List of Figures
.........................................................
List of Tables
User's Guide
SLAU674 - February 2016
ADS54J42EVM
ADS54J42EVM
2
2
3
3
3
4
4
5
6
9
10
10
10
10
11
11
12
13
13
14
15
3
5
7
7
8
11
12
13
14
8
9
10
11
12
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADS54J42EVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments ADS54J42EVM

  • Page 1: Table Of Contents

    Troubleshooting Tips ................HSDC Pro Settings to Optimize Results ..................ADS54Jxx GUI Tab Descriptions ....................Low Level View Controls Microsoft, Windows are registered trademarks of Microsoft Corporation. SLAU674 – February 2016 ADS54J42EVM Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 2: Overview

    High Speed Data Converter Pro (HSDC Pro) software tool for high-speed data converter evaluation. The ADS54J42EVM was also designed to work with many of the development kits from leading FPGA vendors that contain an FMC connector.
  • Page 3: Required Software

    Overview www.ti.com Required Software The following software is required to operate the ADS54J42EVM and is available online. See References, Section 1.4 for links. • ADS54Jxx_EVM_GUI (Rev x) The following software is required to operate the TSW14J56EVM and is available online. See References, Section 1.4...
  • Page 4: Quick Start Guide

    2.1.1 ADS54Jxx EVM GUI Installation The ADS54Jxx EVM GUI is used to control the ADS54J42EVM. It must be used to properly configure the devices on the EVM. 1. Download the ADS54Jxx EVM GUI from the TI website. The...
  • Page 5: Hardware Setup Procedure

    Quick Start Guide www.ti.com Hardware Setup Procedure A typical test setup using the ADS54J42EVM and TSW14J56EVM is shown in Figure 2. This is the test setup used for the quick start procedure. The rest of this section describes the hardware setup steps.
  • Page 6: Software Setup Procedure

    2.3.1 ADS54J42 GUI Configuration 1. Open the ADS54Jxx EVM GUI by going to Start Menu → All Programs → Texas Instruments ADCs → ADS54Jxx EVM GUI. 2. Verify that the green USB Status indicator is lit in the top right corner of the GUI. If it is not lit, click the Reconnect USB button and check the USB Status indicator again.
  • Page 7: Ads54Jxx Gui Low Level View Tab

    Figure 3. ADS54Jxx GUI Low Level View Tab 2.3.2 HSDC Pro GUI Configuration 1. Open High Speed Data Converter Pro by going to Start Menu → All Programs → Texas Instruments → High Speed Data Converter Pro. The GUI main page looks as shown in Figure Figure 4.
  • Page 8: Channel 1 Data Capture Results From Quick Start Procedure

    Figure 5. Channel 1 Data Capture Results from Quick Start Procedure Table 1. Quick Start Performance Measurements Result Measured Value Units 70.03 dBFS SFDR 87.12 dBFS ADS54J42EVM SLAU674 – February 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 9: Quick Start Trouble Shooting

    Check that the spectral analysis parameters are properly configured. Verify that bandpass filters are used in the clock and input signal paths and that low-noise signal sources are used. SLAU674 – February 2016 ADS54J42EVM Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 10: Optimizing Evaluation Results

    Enable markers to narrow the Single-Tone FFT test analysis to a specific bandwidth. Data Capture Options → Capture Options Configure the number of contiguous samples per capture (capture depth). May also enable Continuous Capture and FFT Averaging. ADS54J42EVM SLAU674 – February 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 11: Software Description

    Allows write and read access to all device registers, also allows loading and saving of configuration files. Save the device configurations from this tab for use in your system. See Section 4.2 for more information. SLAU674 – February 2016 ADS54J42EVM Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 12: Low Level View

    Generic Read/Write Register Perform a generic read or write command to the device shown in the Block drop-down box using buttons the Address and Write Data information ADS54J42EVM SLAU674 – February 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 13: Alternate Hardware Configurations

    LMK04828. To accomplish this, send the 10-MHz reference output from the signal generator and connect it to J6 (CLKIN) of the ADS54J42EVM. This causes LED D1 to illuminate indicating the LMK VCXO source is locked to the external reference clock. The provided LMK configuration files work in this mode as well.
  • Page 14: Analog Input Options

    Bringing a 10-MHz signal into the CLKIN input synchronizes to external instruments. This is the board's default mode of operation. Analog Input Options The ADS54J42EVM allows for a differential analog input configuration in addition to the default using the single-ended transformer-coupled input. This option is described in the following section. 5.2.1 Differential Input Bypass the analog input transformers in favor of a differential input source.
  • Page 15: Appendix A Jumper, Connector, And Led Descriptions

    JESD204B FMC connector. Interfaces to TSW14J56EVM or FPGA evaluation boards J8 (USB) USB interface connector. Not used. J9 (+5V IN) 5-V power supply input SLAU674 – February 2016 Jumper, Connector, and LED Descriptions Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 16 Table 8. LED Descriptions Connector Description Not used 5-VDC power present LMK04828 locked to VCXO VCXO locked to external reference applied to J6 Jumper, Connector, and LED Descriptions SLAU674 – February 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 17 STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, or documentation (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein. Acceptance of the EVM is expressly subject to the following terms and conditions.
  • Page 18 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 19 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿6丁目24番1号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧くださ い。http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page SPACER EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
  • Page 20 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2015, Texas Instruments Incorporated...
  • Page 21 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
  • Page 22 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments ADS54J42EVM...
