Summary of Contents for Nexo IDS108

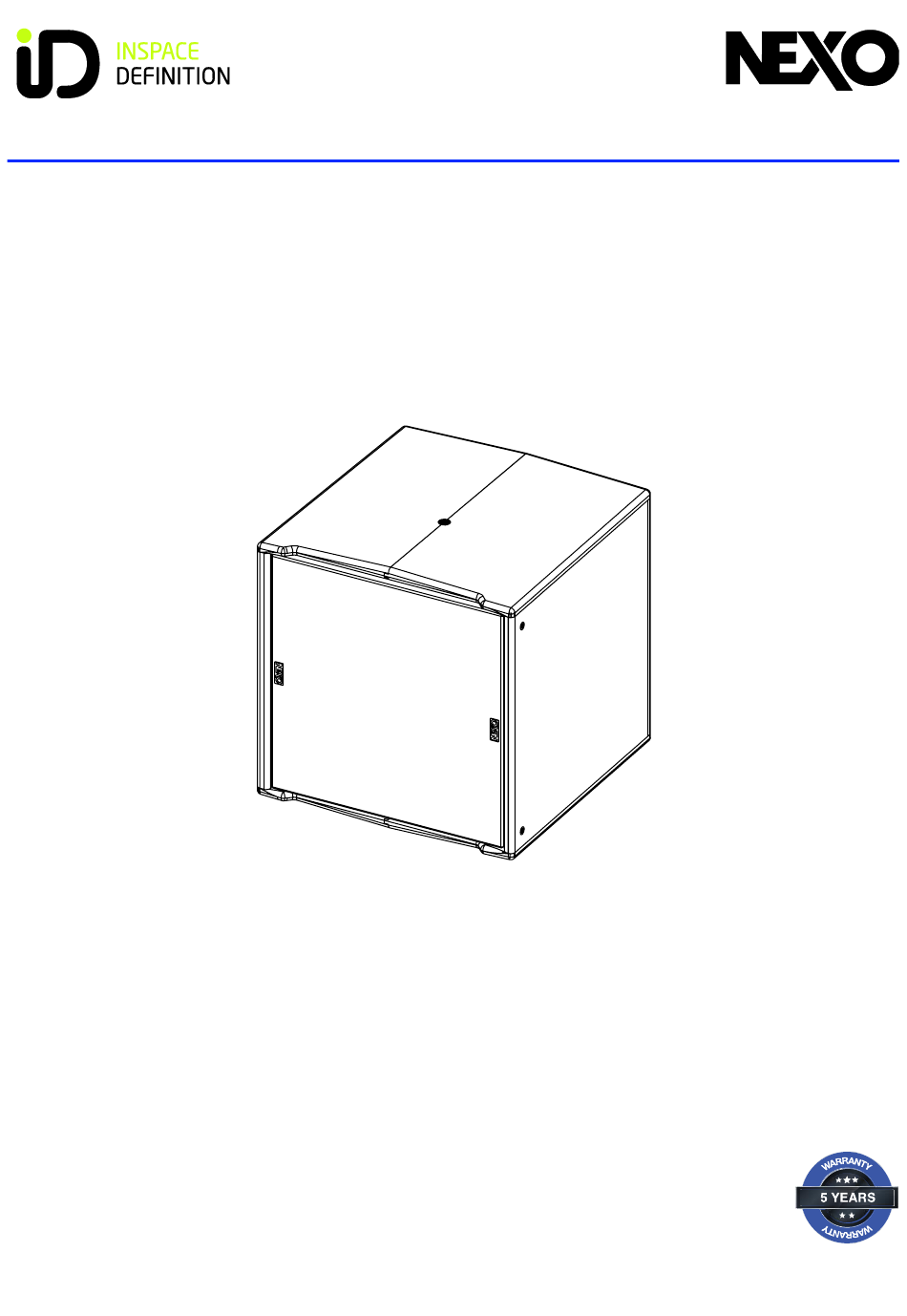

- Page 1 DP4983-01b-DI IDS108 / IDS108-I User manual...
-
Page 2: Table Of Contents
ARRAY EQ _____________________________________________________________________________ 9 MAINTENANCE ________________________________________________________________________ 10 TECHNICAL SPECIFICATIONS ___________________________________________________________ 12 USER NOTES _________________________________________________________________________ 13 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker... -
Page 3: Warnings
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system. -
Page 4: Equipment
EQUIPMENT EQUIPMENT 3 locations for hanging, 1 on each side (M10) and 1 on the top (M10) to place IDI-14TO108. Page 4 / 14 IDS108... - Page 5 Stand height and footprint must be defined to prevent assembly from collapsing. Ensure that audience is not allowed within a safety area which radius is equal or higher than assembly height. Test steadiness of the assembly by pushing in all directions. Page 5 / 14 IDS108...
-
Page 6: Description
→ The IDS108 subwoofer is equipped with two Speakon NL4 connectors with parallel-wired pins, IDS108 uses the 1+/1- pins, (2+/2- through). → The IDS108-I is supplied with a fixed cable (HO7ZZ-F), 2x 0.75mm2 section, length 2m, outside diameter 6.1mm ± 1mm. (+): Brown / Red; (-): Blue / Black →... -
Page 7: Setting Range
SETTING RANGE SETTING RANGE Please consult nexo-sa.com for NEXO TD Controllers firmware information. For a traditional use of the subwoofer, there are two setups for IDS108: • 50 – 120 Hz • 50 – 150 Hz IDS108 + ID14 Front of house and stage monitor applications... -
Page 8: Accessories
All IDS108 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling P8 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire P8 accessory range if any component is purchased from different supplier. -
Page 9: Array Eq
ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): Page 9 / 14 IDS108... -
Page 10: Maintenance
MAINTENANCE MAINTENANCE NOTE: Speakers and Grills can be sent back to NEXO for recycling Driver access Remove the 4 screws. Remove the 8 screws. Page 10 / 14 IDS108... - Page 11 05IDS108UA-I Complete grille Installation Black 05IDS108UA-IPW Complete grille Installation White 05LOGNEXO3 Adhesive Logo 05CNXNL4MDV-1 SpeakON with screws 05PREPM12 Cable-gland with O-ring; Black 05PREPM12-PW Cable-gland with O-ring; White 05RUBGRID01 Plastic foot Black 05RUBGRD01-PW Plastic foot Grey Page 11 / 14 IDS108...
-
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS IDS108 WITH NEXO ELECTRONICS Model IDS108 50 Hz – 150 kHz Frequency range (±6dB) Peak SPL Level (1m) 122dB Peak Operating voltage 30Vrms 50 – 120 Hz / 50 – 150 Hz Crossover Frequency 8Ω Nominal Impedance... -
Page 13: User Notes
USER NOTES USER NOTES Page 13 / 14 IDS108... - Page 14 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr Parc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 14 / 14 IDS108...
