DP4970-01-DI

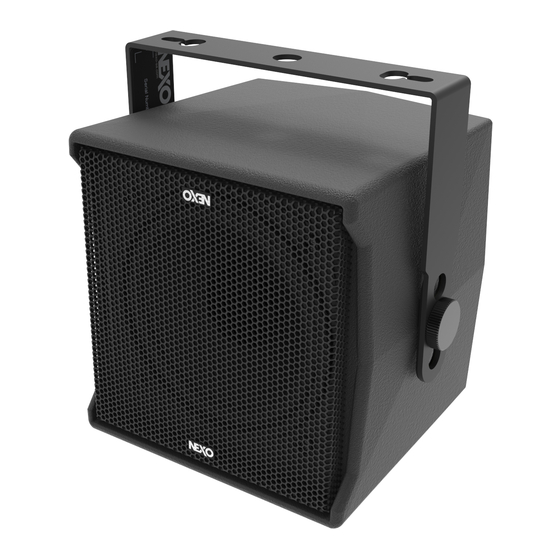

ID14 / ID14-I
User manual

Advertisement

Table of Contents
loading

Related Manuals for Nexo ID14

Summary of Contents for Nexo ID14

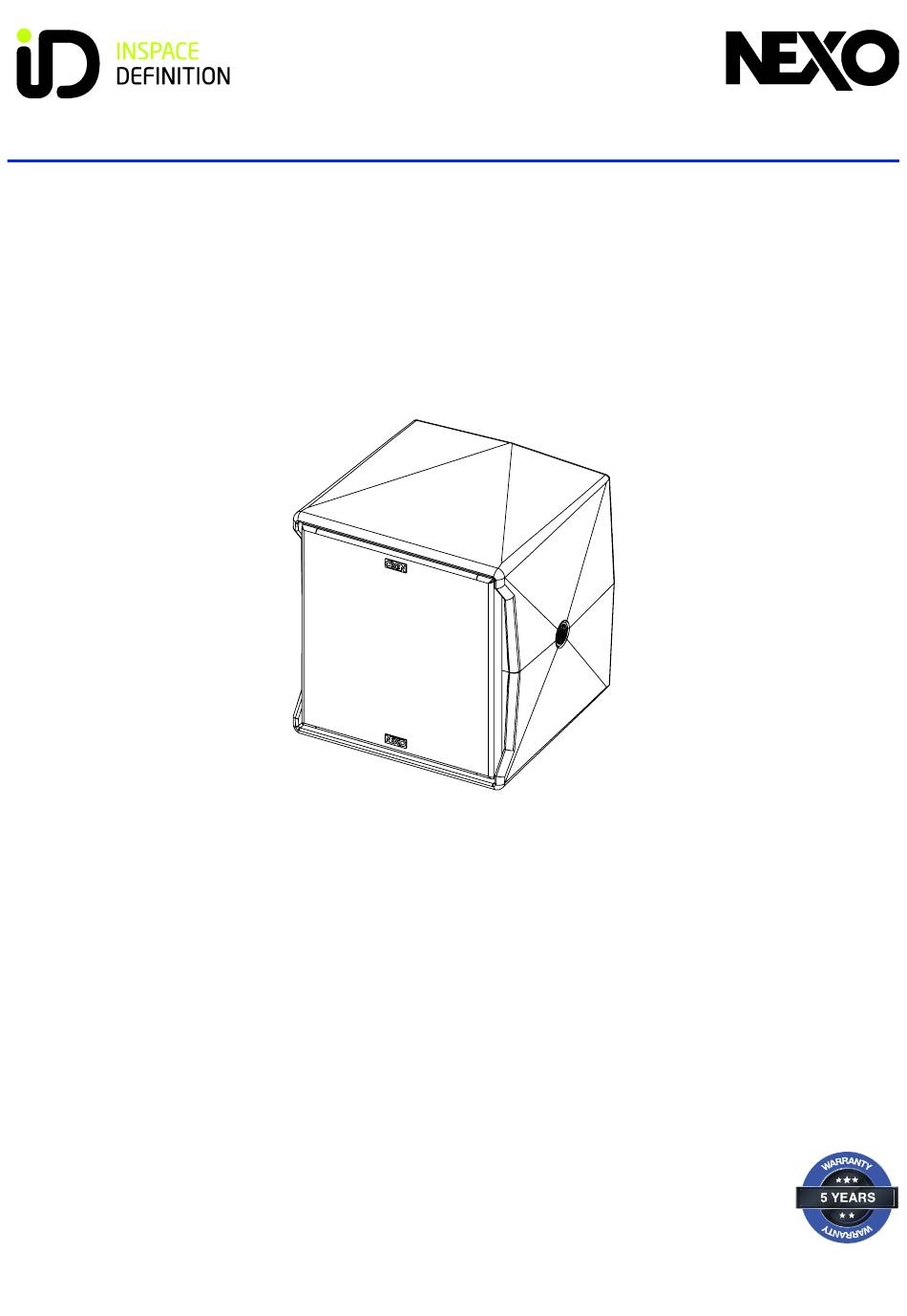

  • Page 1 DP4970-01-DI ID14 / ID14-I User manual...

  • Page 2: Table Of Contents

    ARRAY EQ ____________________________________________________________________________ 10 MAINTENANCE ________________________________________________________________________ 11 TECHNICAL SPECIFICATIONS ___________________________________________________________ 13 USER NOTES _________________________________________________________________________ 14 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Passive Loudspeaker...

  • Page 3: Warnings

    If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system.

  • Page 4: Equipment

    3 locations for hanging, 1 on the back (2x M6 / 73mm pitch) and on each side (1x M10). Assembly on distance rod or speaker stand Place distance rod on the connector plate (M10) of the Sub. Place ID14 on the distance rod / monitor stand IMPORTANT Speaker stand must be rated for ID14 weight.

  • Page 5: Description

    (+): Brown / Red; (-): Blue / Black → Amplification • The ID14 speakers must be used with a NEXO processor to handle EQ, phase alignment, crossover and excursion/thermal protection for the system loudspeaker. • The following table shows the number of ID14 speakers and IDS108 subwoofers usable with each solution.

  • Page 6: Preset

    → MONITOR is recommended for monitor applications. Warning: this setup is a low latency setup and therefore its phase is not compatible with other NEXO cabinets, including subs. Preset • ID14 MON PA 100100, with high pass at 120 or 150 Hz. • ID14 MON PA 14090, with high pass at 120 or 150 Hz. •...

  • Page 7: Crossover Frequency

    CROSSOVER FREQUENCY ID14 + IDS108 Stage monitor applications with Sub Front of house applications with Sub CROSSOVER FREQUENCY → 120 Hz: Default crossover, to be used without sub or with a small sub, e.g. IDS108. → 150 Hz: Used for high level application, for « front fill » on stage, with a large main system.

  • Page 8: Accessories

    All ID14 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling ID14 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire ID14 accessory range if any component is purchased from different supplier.
  • Page 9 ACCESSORIES IDI-WM01 Speaker wall mount; 0° to 30°. IDI-WB02 Universal speaker wall mount IDT-4CASE14 Flight case for 4x ID14 and accessories Page 9 / 16 ID14...

  • Page 10: Array Eq

    ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): ArrayEQ HF: only available on NXAMPmk2 Page 10 / 16 ID14...

  • Page 11: Maintenance

    MAINTENANCE MAINTENANCE NOTE: Speakers and Grills can be sent back to NEXO for recycling Driver access Place a flat screwdriver in the space between the grille Remove the grille and the cabinet to unlock the grille. Remove 4 screws to access to the speaker, make sure To access to the HF diaphragm, remove 4 screws.
  • Page 12 Complete grille Installation White HP 4” Coaxial 100x100 (with gasket) 2 (a) 05HPC4-100 HP 4” Coaxial 90x140 (with gasket) 05HPC4-140 05NHP4R/K HF Diaphragm (with gasket) (a) PAY ATTENTION TO THE DIRECTIVITY OF THE DRIVER WHEN ORDERING Page 12 / 16 ID14...

  • Page 13: Technical Specifications

    TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS ID14 WITH NEXO ELECTRONICS Model ID14 95 Hz – 20 kHz Frequency range (±6dB) Peak SPL Level (1m) 116dB Peak Operating voltage 20Vrms (105Vpeak) HF dispersion 100°x100° - 90°x140° (upon ordering) 120Hz – 150 Hz Crossover Frequency Nominal Impedance 16Ω...

  • Page 14: User Notes

    USER NOTES USER NOTES Page 14 / 16 ID14...
  • Page 15 USER NOTES Page 15 / 16 ID14...
  • Page 16 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr Parc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 16 / 16 ID14...
