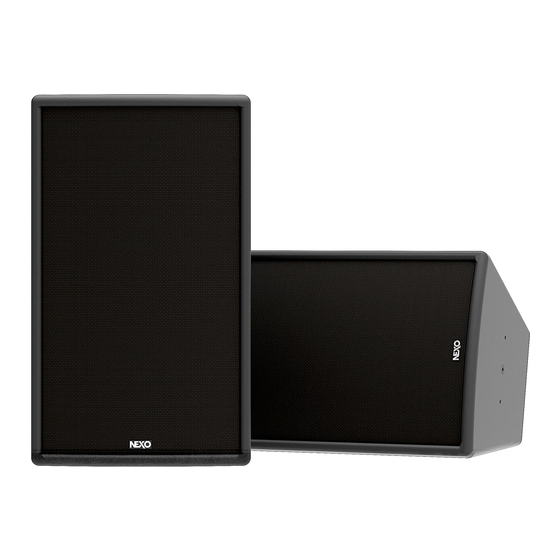

Nexo ePS8 User Manual

Hide thumbs Also See for ePS8:
Table of Contents

Advertisement

Quick Links

Download this manual
DP6151-01-DI
ePS8
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ePS8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nexo ePS8

Summary of Contents for Nexo ePS8

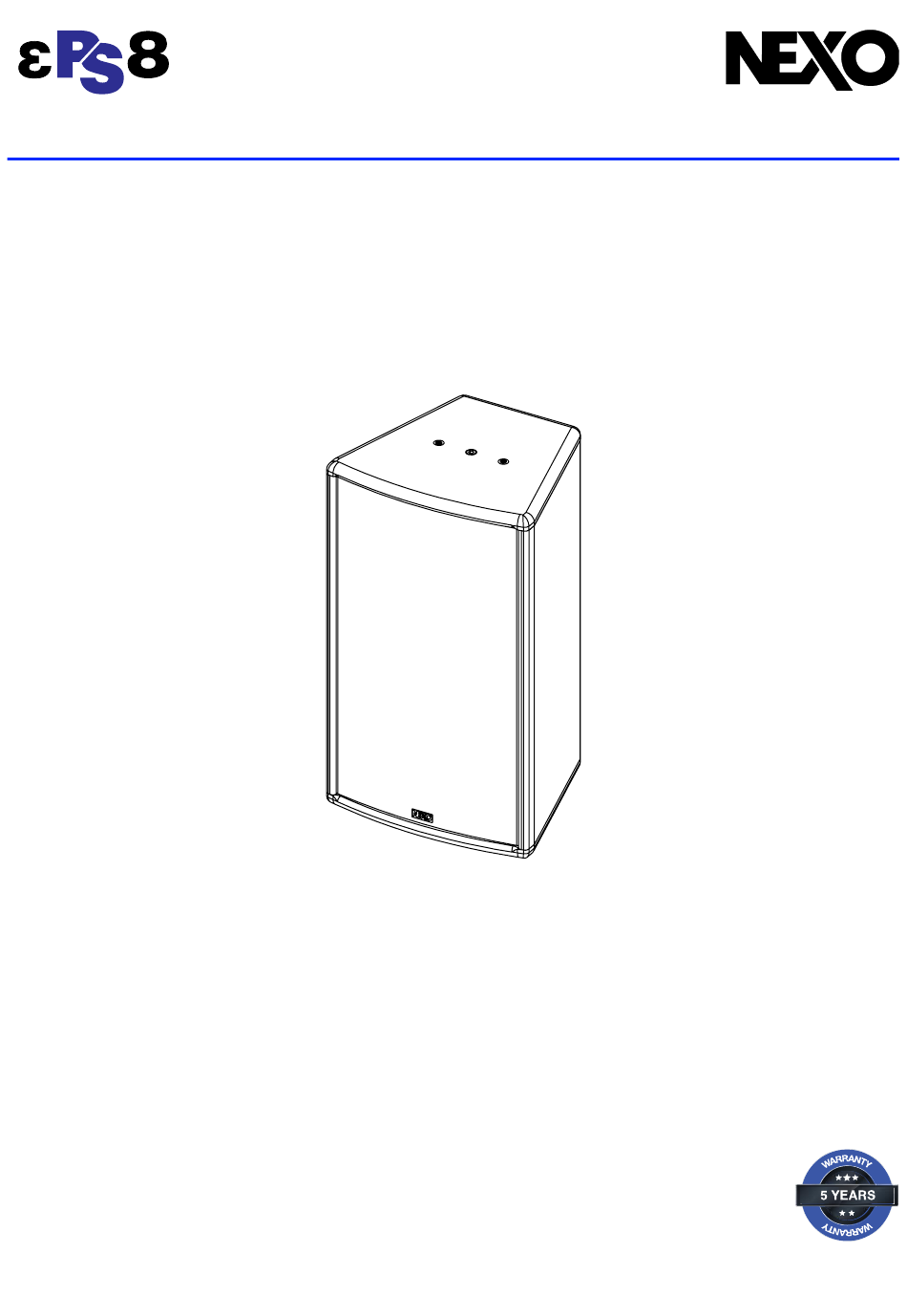

  • Page 1 DP6151-01-DI ePS8 User manual...

  • Page 2: Table Of Contents

    ARRAY EQ ____________________________________________________________________________ 13 MAINTENANCE ________________________________________________________________________ 14 TECHNICAL SPECIFICATIONS ___________________________________________________________ 16 USER NOTES _________________________________________________________________________ 17 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker...

  • Page 3: Warnings

    If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system.

  • Page 4: Equipment

    EQUIPMENT EQUIPMENT On each side of the cabinet, two M6 with 80 mm pitch plus one M10 fittings will connect the ePS8 to accessories (VNI-HCPL425, VNI-VCPL425, VNU-BUMP, VNU-HBRK425, or eye-bolts). The back of the speaker is fitted with 3x M6 (70mm pitch) to connect wallmount in both vertical and horizontal positions (VNI-WB02, VNI-WM01, VNI-WM02).

  • Page 5: Description

    3.31 mm (12 to 15 AWG) copper section. Cable with maximum outside diameter of 11mm. → To wire ePS8, slit the membrane of the grommet crosswise, pass the cable through and make the connection to the screw terminals. Place the IPCOV.

  • Page 6: Preset

    PRESET PRESET Please consult nexo-sa.com for NEXO TD Controllers firmware information. For the ePS8, the following setups are available: • ePS8 MAIN PA, 70-20kHz. • ePS8 MAIN PA, 85-20kHz. • ePS8 MAIN PA, 120-20kHz. ePS8 ePS8 + eLS400 ePS8 + eLS600...

  • Page 7: Hf Directivity

    HF DIRECTIVITY HF DIRECTIVITY → The ePS8 speaker can be used in horizontal or vertical position. → t’s easy to change the HF dispersion to deal with every request. Remove the 4 screws that hold the horn. Remove it. Place a flathead screwdriver in the space between the grille and the cabinet to release the grille.

  • Page 8: Accessories

    WARNINGS All ePS accessories are specifically rated in agreement with structural computations. Never use other accessories when assembling ePS8 cabinets than the ones provided by NEXO: NEXO will decline responsibility if any component is purchased from different supplier. PROHIBITED: ePS8 below ePS8 or ePS8 below eLS400 or eLS600 without dedicated accessory VNU-BUMP LiftBar, can be used with VNI-WMADAPT.
  • Page 9 2 guides. Tight with the fasteners provided with VNI-CLADAPT. Refer to the Product Data Sheet VNU-PLADAPT Pole adapter Place VNU-PLADAPT on VNI-HBRK425, use only fasteners provided. Tight properly. Refer to the Product Data Sheet Page 9 / 18 ePS8...
  • Page 10 ACCESSORIES VNI-WM280 Wallmount, usable with: VNI-WMADAPT / VNU-BUMP VNU-HBRK425 ePS8 / BUMP / WMADAPT Place the assembly on VNI-WM280. Tight with the fasteners provided with VNI-WM280. Refer to the Product Data Sheet ePS8 / HBRK425 Place the assembly on VNI-WM280. Tight with the fasteners provided with VNI-WM280.
  • Page 11 VNI-WB02 Light wall mount adapter 15kg max Remove 2 of the 3 screws on the back. Screw speaker plate to ePS8 (use only screws provided with ePS8). Place the speaker holder with ePS8 into wall bracket. Fix by tightening bolted assembly.
  • Page 12 ACCESSORIES VNI-WM01 Wall mount adapter 15kg max Remove 2 of the 3 screws on the back. Screw speaker plate to ePS8 (use only screws provided with ePS8). Place the speaker holder with ePS8 into wall bracket. Fix by tightening bolted assembly.

  • Page 13: Array Eq

    ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): rray ad usting Fre uency H rray ad usting Fre uency H Page 13 / 18 ePS8...

  • Page 14: Maintenance

    MAINTENANCE MAINTENANCE NOTE: Speakers and Grills can be sent back to NEXO for recycling Driver access Remove the 4 screws to access the LF driver. Place a flathead screwdriver in the space between the grille and the cabinet to release the grille.
  • Page 15 DESIGNATION 05EPS8-UA Complete grille Black 05EBEPS8 Cabinet Black 05NH12ND1.0R/K HF diaphragm ” complete 05HPB-8ND Recone Kit ” 05N8ND1.0R/K 05LOGNEXO3 Logo NEXO 05VXTSTHC1012 HEADLESS Screw M10x12 Black (x10) 05VXTCFX616N VXFX 6x16 Black (x10) 05PASF-DG9E1 Grommet DG11 Page 15 / 18 ePS8...

  • Page 16: Technical Specifications

    TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS WITH NEXO ELECTRONICS Model ePS8 70 Hz – 20 kHz Frequency range (±6dB) Peak SPL Level (1m) 128dB Peak Operating voltage 30Vrms Vertical Dispersion +25°/-30° Horizontal Dispersion: 50° to 100° asymmetrical Crossover Frequency 70 HZ, 85 Hz, 120 Hz...

  • Page 17: User Notes

    USER NOTES USER NOTES Page 17 / 18 ePS8...
  • Page 18 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr arc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 18 / 18 ePS8...
