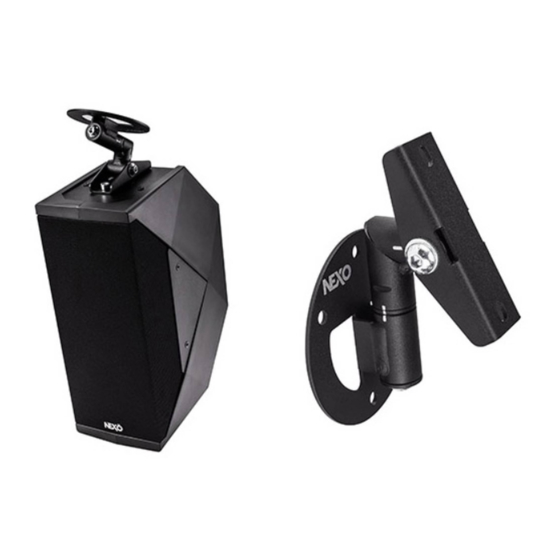

- Page 1 VNI-WB02 (IDI-WB02) DP6126 – 01a - DI Speaker Wall Mount – 15kg max Contents: Weight: 0.5 kg / 1.1 lb - Read t his docum ent before using. - Keep t his docum ent . - Observe all warnings and caut ions.
- Page 2 Screw the wall plate with the decorative plate to the wall. Use two or three screws (not supplied). Screw speaker plate to NEXO Speaker (use screws Place the speaker holder with NEXO Speaker into the wall bracket. provided with NEXO Speaker). Fix by tightening bolted assembly.
- Page 3 Use with ID14 Screw speaker plate to ID14 (use screws provided with ID14 – 10mm wrench). WB02 on ceiling WB02 on wall Tilt: -40° à -110° Tilt: -20° à +50° Use with ID24 : The angle adjustments depends on the position of the accessory.
- Page 4 Tighten to lock the horizontal adjustment position. • NEXO cannot accept responsibility for accidents caused by any factor other than defects in this product itself. • Please check the web site nexo-sa.com for the latest update. - Read t his docum ent before using.
