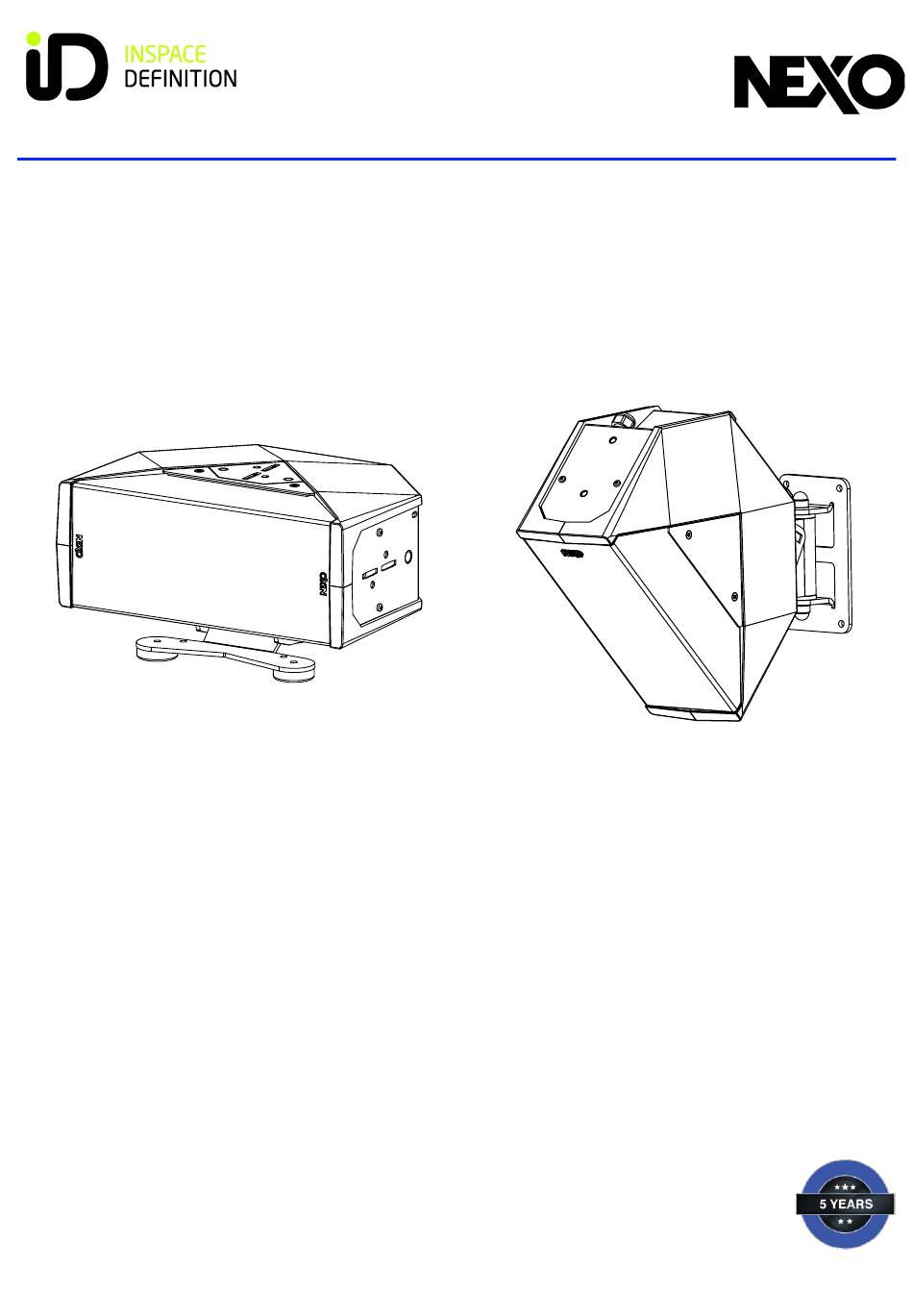

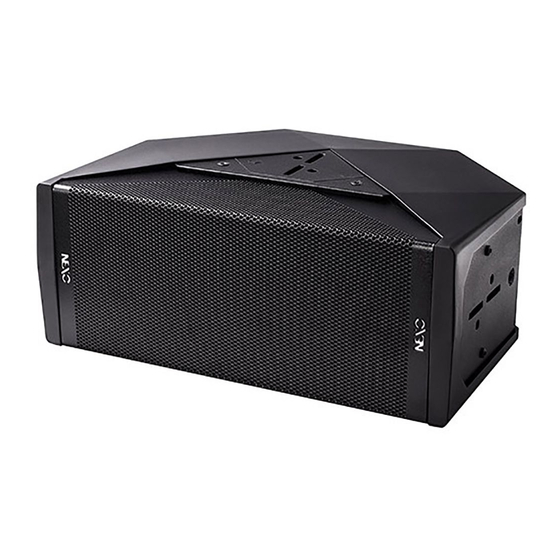

- Page 1 DP2117 – 08a - DI ID24 – ID24-I User manual...
-
Page 2: Table Of Contents
ARRAY EQ ____________________________________________________________________________ 10 MAINTENANCE ________________________________________________________________________ 11 TECHNICAL SPECIFICATIONS ___________________________________________________________ 15 USER NOTES _________________________________________________________________________ 16 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker... -
Page 3: Warnings
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system. -
Page 4: Equipment
EQUIPMENT EQUIPMENT ID24 Safety slot on the back to secure ID24. Kensington Security Slot on the back. 5 prints (top, bottom, rear and each sides) for IDT-QRA / IDT-TCBRK Rear panel plate for IDT-GSTK 1 M10 threaded insert for IDT-TVP (WARNING, for other fasteners, the length of thread must be less than 12mm). 2x M10 threaded insert on ID24 with the last 6 digits of the serial number ≥... - Page 5 EQUIPMENT Assembly on distance rod or speaker stand Place distance rod on the connector plate (M20) of the Sub. Place ID24 on the distance rod / monitor stand IMPORTANT Speaker stand must be rated for ID24 weight. Speaker stand must always be installed on a horizontal surface. Stand height and footprint must be defined to prevent assembly from collapsing.
-
Page 6: Description
Amplification: • The ID24 speakers MUST be used with a NEXO processor to handle EQ, phase alignment, crossover and excursion/thermal protection for the system loudspeakers. There are two NEXO processor series supporting the ID24 speakers: NXAMP (4-channel) amplified processors and DTD processors DTD (stereo + sub). DTD processors ensure optimal performances when used with DTDAMP power amplifiers. -
Page 7: Preset
FRONT FILL is recommended when used as a front fill in a complement of a larger system. • MONITOR is recommended for monitor applications. Warning: this setup is a low latency setup and therefore its phase is not compatible with other Nexo cabinets, including subs. • LOUNGE is recommended for Club and Lounge applications. -
Page 8: Horn Rotation
Please choose the crossover frequency value according to application: • 95Hz Full range application. • 120Hz Use with a NEXO subwoofer, e.g. IDS110 or IDS210. • 150Hz Use as « front fill » on stage, complementing a main system. Page 8 / 16 ID24... -
Page 9: Accessories
ACCESSORIES ACCESSORIES ID24t IDT-GSTK IDT-TCBRK2538-V2 / TCBRK3851-V2 / QRA-V2 IDT-TVP IDT-HBRK24 (only used on ID24 with the last 6 digits of the serial IDT-POLE32x1400 ≥ 200 000 number ID24i IDI-WB02 IDI-WM01 IDI-HBRK24 (only used on ID24 with the last ≥ 200 000 6 digits of the serial number Page 9 / 16 ID24... -
Page 10: Array Eq
ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEQ values): Page 10 / 16 ID24... -
Page 11: Maintenance
MAINTENANCE MAINTENANCE NOTE: Speakers and Grills can be sent back to NEXO for recycling Grille ID24t Remove the 4 screws and the 2 Fixgrill. Remove the grille from the 4 plastic bolts Pull forward. (2 on the top and 2 on the bottom). - Page 12 MAINTENANCE 4” driver Remove the 4 screws and the driver. Reassemble the driver with the plug facing Remove the gasket. towards the horn. Tightening torque: 1.5 Nm HF Driver Align the marks to reassemble. Remote the 4 screws for changing the diaphragm.
- Page 13 MAINTENANCE Spare parts. ID24t MARK QUANTITY PART REFERENCE DESIGNATION 05VXTCX420N Screw VXTCX M4x20 black (x10) 05VXTCX420 Screw VXTCX M4x20 white (x10) Push Button black (with 1 – 3, wIthout Lexan) 05KNOB24 Push Button white (with 1 – 3, wIthout Lexan) 05KNOB24W 05RESOND2822 Wave Spring...
- Page 14 MAINTENANCE ID24i REPERE QUANTITE PREFERENCE DESIGNATION 05VXTCX420N Screw VXTCX M4x20 black (x10) 05VXTCX420 Screw VXTCX M4x20 white (x10) Push Button (with 1 – 3, wIthout Lexan) 05KNOB24 Push Button white (with 1 – 3, wIthout Lexan) 05KNOB24W 05RESOND2822 Wave Spring 05VXTCFX410N-EL Screw VXFX M4x10 black (x10) 05VXTCFX410-EL...
-
Page 15: Technical Specifications
(last 6 digits of the serial 2x M10 threaded insert number ≥200 000) (last 6 digits of the serial number ≥200 000) 6 kg – 13 lb Weight Dimensions Application Notes are available on the NEXO Web site, nexo-sa.com Page 15 / 16 ID24... -
Page 16: User Notes
USER NOTES USER NOTES NEXO S.A. Tel: +33 3 44 99 00 70 Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr Parc d’activité de la Dame Jeanne F-60128 PLAILLY nexo-sa.com Page 16 / 16 ID24...
