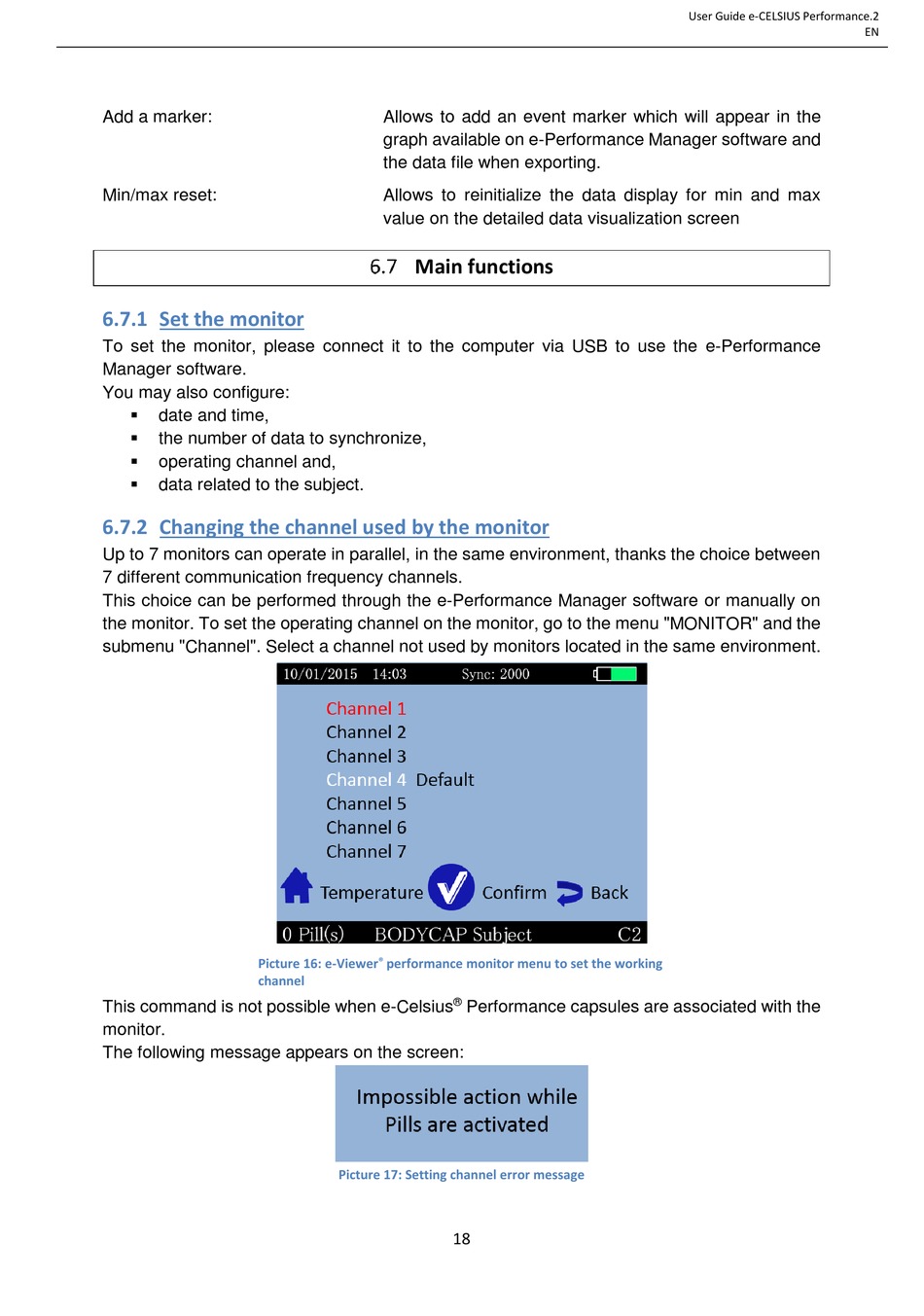

Main Functions; Set The Monitor; Changing The Channel Used By The Monitor - BodyCAP e-CELSIUS Performance User Manual

Add a marker:
Min/max reset:

6.7.1 Set the monitor

To set the monitor, please connect it to the computer via USB to use the e-Performance
Manager software.
You may also configure:

date and time,

the number of data to synchronize,

operating channel and,

data related to the subject.

6.7.2 Changing the channel used by the monitor

Up to 7 monitors can operate in parallel, in the same environment, thanks the choice between
7 different communication frequency channels.
This choice can be performed through the e-Performance Manager software or manually on
the monitor. To set the operating channel on the monitor, go to the menu "MONITOR" and the
submenu "Channel". Select a channel not used by monitors located in the same environment.
Picture 16: e-Viewer
channel
This command is not possible when e-Celsius
monitor.
The following message appears on the screen:
Allows to add an event marker which will appear in the
graph available on e-Performance Manager software and
the data file when exporting.
Allows to reinitialize the data display for min and max
value on the detailed data visualization screen

Main functions

® performance monitor menu to set the working
®
Performance capsules are associated with the
Picture 17: Setting channel error message
18
User Guide e-CELSIUS Performance.2
EN
