BodyCAP e-CELSIUS Performance User Manual page 8

At the opening of the second window (Picture 3: Tabs to configure the monitor), several tabs allow
to configure the monitor before using. At any instant of the configuration, you may consult the
instructions by clicking on the tab "User guide" at the bottom left of the window.
3.2.3.1 The tab monitor
The tab "Monitor" (Picture 3: Tabs to configure the monitor) allows selecting the operation channel
for the next recording session. It is required to take care that the monitor is sufficiently supplied,
and to put it on an available channel.
In order to reduce interferences, the selected channel has to be different from those
of the other monitors working in the same environment.
It is possible to select one of the seven channels (1 to 7) available in the monitor.
The date and time of the computer on which is installed the e-Performance Manager software
will be send to the monitor by clicking on the "Apply" button. This timeline is associated with
stored data.

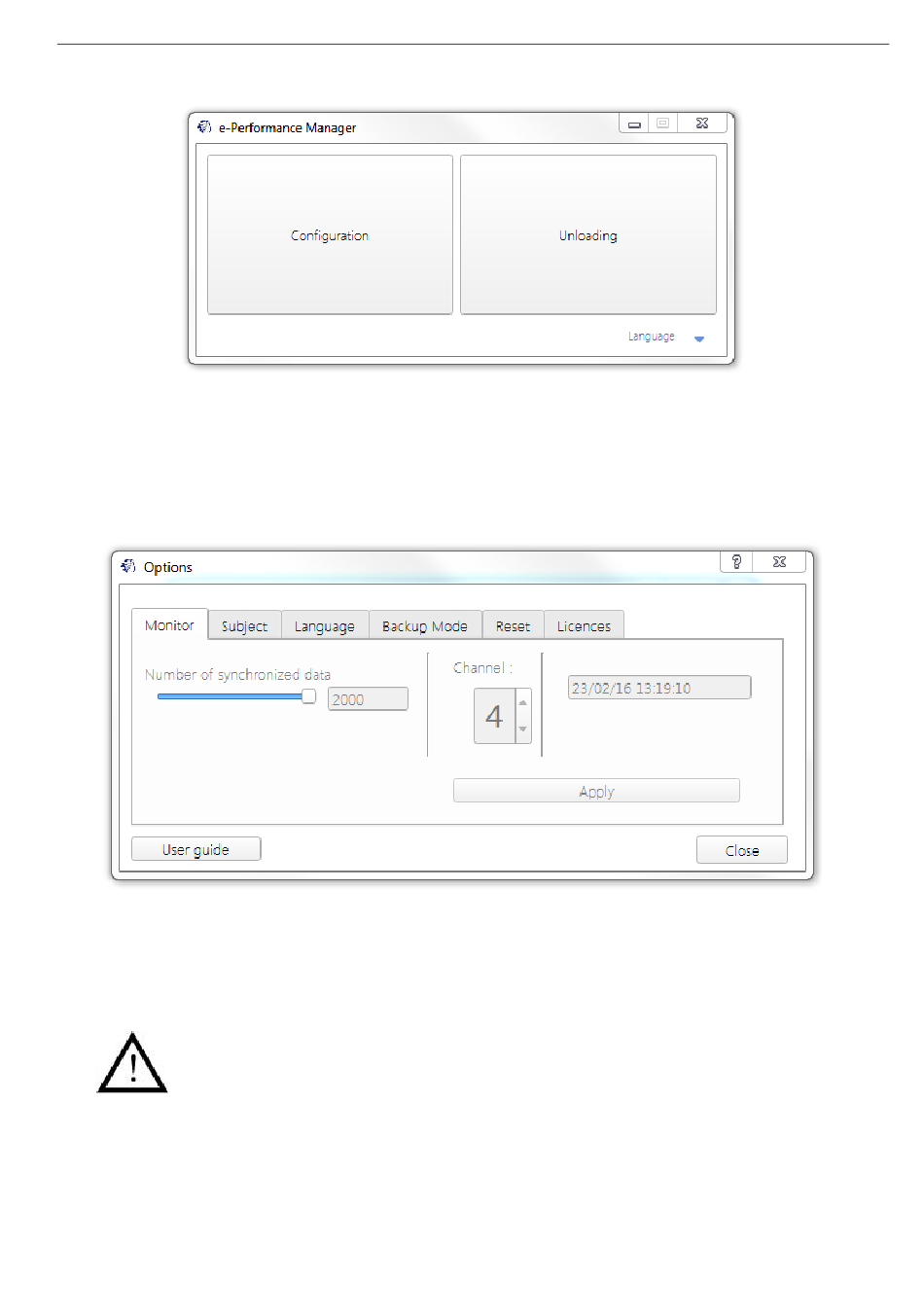

Picture 2: Start screen of e-Performance
Picture 3: Tabs to configure the monitor
8
