- Page 1 Instruction Manual Objective Heater Universal – Silver Line for use with ibidi Heating System Slide / Dish – Silver Line and ibidi Heating System 4 Slides – Silver Line 12110, 12720, 12722, 12111 12130, 12131 12170 Objective Heater Universal – Silver Line .com...
- Page 2 Objective Heater Universal – Silver Line Version 1.0 (June 1, 2022) Instruction Manual...
- Page 3 Objective Heater Universal – Silver Line Contact ibidi GmbH Lochhamer Schlag 11 82166 Gr¨ a felfing Germany Phone: +49 89 / 520 46 17 - 0 Fax: +49 89 / 520 46 17 - 59 E-mail: info@ibidi.de Internet: ibidi.com Instruction Manual...
-
Page 4: Table Of Contents
Objective Heater Universal – Silver Line Contents 1 Preamble 1.1 Introduction ......... . . 1.2 Introduction . -
Page 5: Preamble
For Research Use Only! Not for use in diagnostic procedures. The Objective Heater Universal – Silver Line (#12170) can be used with the Heating System Slide/Dish – Silver Line (product numbers 12110, 12720, 12722, 12111) and the Heating System 4 Slides – Silver Line (product numbers 12130, 12131). -
Page 6: Nomenclature

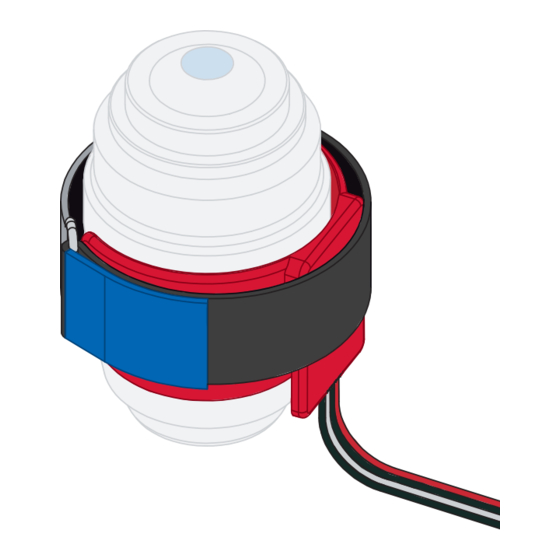

Objective Heater Universal – Silver Line 1.4 Nomenclature For better readability, the Objective Heater Universal – Silver Line is hereafter abbreviated and re- ferred to as “Objective Heater” in body text and figure captions. The Objective Heater consists of the following three components: ®... -
Page 7: Disclaimer
Silver Line, hereafter abbreviated and referred to as ”Temperature Controller”. 1.6 Disclaimer • ibidi shall not be held liable, either directly or indirectly, for any damage incurred as a result of product use. • The contents of this manual are subject to change without notice for product improvement. -
Page 8: Limited Warranty
• Immediately replace damaged cords, plugs, or cables to avoid the risk of personal injury or damage to the instrument. • Only ibidi technical staff and technical staff instructed by ibidi are permitted to open and ser- vice the Objective Heater. -
Page 9: Repairing The Objective Heater Universal - Silver Line
2. Improper or inadequate operation, maintenance, adjustment, or calibration. 3. Unauthorized modification or misuse. 4. Use of consumables, disposables, and parts not supplied by an authorized ibidi distributor. 5. Corrosion due to the use of improper solvents, samples, or due to surrounding gases. -
Page 10: Eu Directive Rohs
Objective Heater Universal – Silver Line This symbol on the product is in accordance with the European Union’s Waste Electrical and Elec- tronic Equipment (WEEE) Directive. The symbol indicates that this product must be recycled/dis- posed of separately from other household waste. It is the end user’s responsibility to dispose of this product by taking it to a designated WEEE collection facility for the proper collection and recycling of the waste equipment. -
Page 11: Regulatory Statement
Any modification to the product, not authorized by us, will invalidate this declaration. Laborgerät / laboratory equipment: ibidi Temperature Controller ibiTC3-XXX with ibidi accessories Der oben beschriebene Gegenstand erfüllt die Vorschriften der Richtlinie 2011/65/EU vom 08. Juni 2011 zur Beschränkung der Verwendung bestimmter gefährlicher Stoffe in Elektro- und Elektronikgeräten. -
Page 12: Intended Use
Objective Heater. Figure 1: Schematic illustration of a live cell imaging setup with an ibidi Stage Top Incubator and the Objective Heater for optimal temperature stability of the sample. -
Page 13: Equipment
Objective Heater Universal – Silver Line 4 Equipment This section gives an overview of the components and their functionality and characteristics. The components of the Objective Heater Universal – Silver Line (#12170) are listed below. Description Drawing Flexible heating unit (red) with... -
Page 14: Operation
Objective Heater Universal – Silver Line 5 Operation Before starting an experiment, check that the Objective Heater fits your microscope objectives (see Section 1.5). CAUTION Not all objectives/lenses tolerate heat! Please check with the manufacturer of your objective if it can be heated. NOTE –... - Page 15 Objective Heater Universal – Silver Line Figure 2: Mounting of the Objective Heater to an objective. To control the temperature of the Objective Heater, please follow the instructions of the Temperature Controller (see Instructions). Optional: To setup communication with the IncuControl Software, use a USB cable to connect the Temperature Controller to the computer.
-
Page 16: Emergency Release Mechanism
5.3 Temperature Adjustment of the Objective Heater Universal – Silver Line ibidi recommends a temperature adjustment before starting the first experiment to ensure that the sample reaches the correct temperature. The temperature in the sample is affected primarily by the temperature of the Stage Top Incubator. - Page 17 Objective Heater Universal – Silver Line Figure 4: Temperature adjustment procedure to adjust the sample temperature to the target temper- ature. The temperature adjustment must be repeated from time to time (at least once a year), especially if one of the following conditions has been changed: •...
- Page 18 Objective Heater Universal – Silver Line Version 1.0 (June 1, 2022) Instruction Manual...
- Page 19 Objective Heater Universal – Silver Line Instruction Manual Version 1.0 (June 1, 2022)
- Page 20 GmbH Lochhamer Schlag 11 82166 Gräfelfing Germany Toll free within Germany: Phone: 0800 / 00 11 11 28 Fax: 0800 / 00 11 11 29 International calls: Phone: +49 89 / 520 46 17 - 0 Fax: +49 89 / 520 46 17 - 59 E-Mail: info@ibidi.com...
