Summary of Contents for IFM EC2061

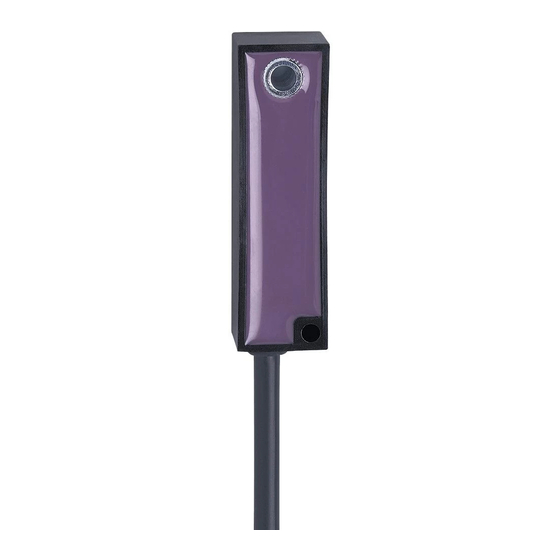

- Page 1 Operating instructions EC2061 EC9203...
-
Page 2: Table Of Contents
EC2061 EC9203 Contents Safety instructions............ -
Page 3: Safety Instructions
EC2061 EC9203 1 Safety instructions • The unit described is a subcomponent for integration into a system. – The system architect is responsible for the safety of the system. – The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system. -
Page 4: Preliminary Note
EC2061 EC9203 2 Preliminary note You will find instructions, technical data, approvals, accessories and further information using the QR code on the unit / packaging or at www.ifm.com. -
Page 5: Intended Use
EC2061 EC9203 3 Intended use The inclination sensors are designed for vertical mounting and measure inclination angles around the Z-axis. They enable precise spatial monitoring of an object and measure its position in relation to the gravity of the earth without contact. -
Page 6: Installation
EC2061 EC9203 4 Installation 4.1 Mounting surface u Mount the device on a flat mounting surface. w The housing must not be exposed to any torsional forces or mechanical stress. 4.2 Fastening u Secure the device with an M6 screw through the metal socket provided for this purpose. -
Page 7: Electrical Connection
EC2061 EC9203 5 Electrical connection The unit must be connected by a qualified electrician. u Observe the national and international regulations for the installation of electrical equipment. u Disconnect power. u Connect the unit as follows: EC2061 Designation Core colour Potential... -
Page 8: Operation
EC2061 EC9203 6 Operation After power-on the device is in the normal operating mode. Note on switch point SP • Switch-on point in horizontal installation position (+/-1°) when moving the cable entry from bottom to top. • Reset point exceeding the switching hysteresis by moving the cable entry from top to bottom. -
Page 9: Maintenance, Repair And Disposal
7 Maintenance, repair and disposal The unit is maintenance-free. u Contact ifm in case of malfunction. u Do not open the housing as the unit does not contain any components which can be maintained by the user. The unit must only be repaired by the manufacturer.
