IFM efector200 O6P2 Operating Instructions Manual

IFM efector200 O6P2 Operating Instructions Manual

Retro-reflective sensor
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

Operating instructions
Retro-reflective sensor
UK
O6P2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the efector200 O6P2 and is the answer not in the manual?

Questions and answers

Related Manuals for IFM efector200 O6P2

Summary of Contents for IFM efector200 O6P2

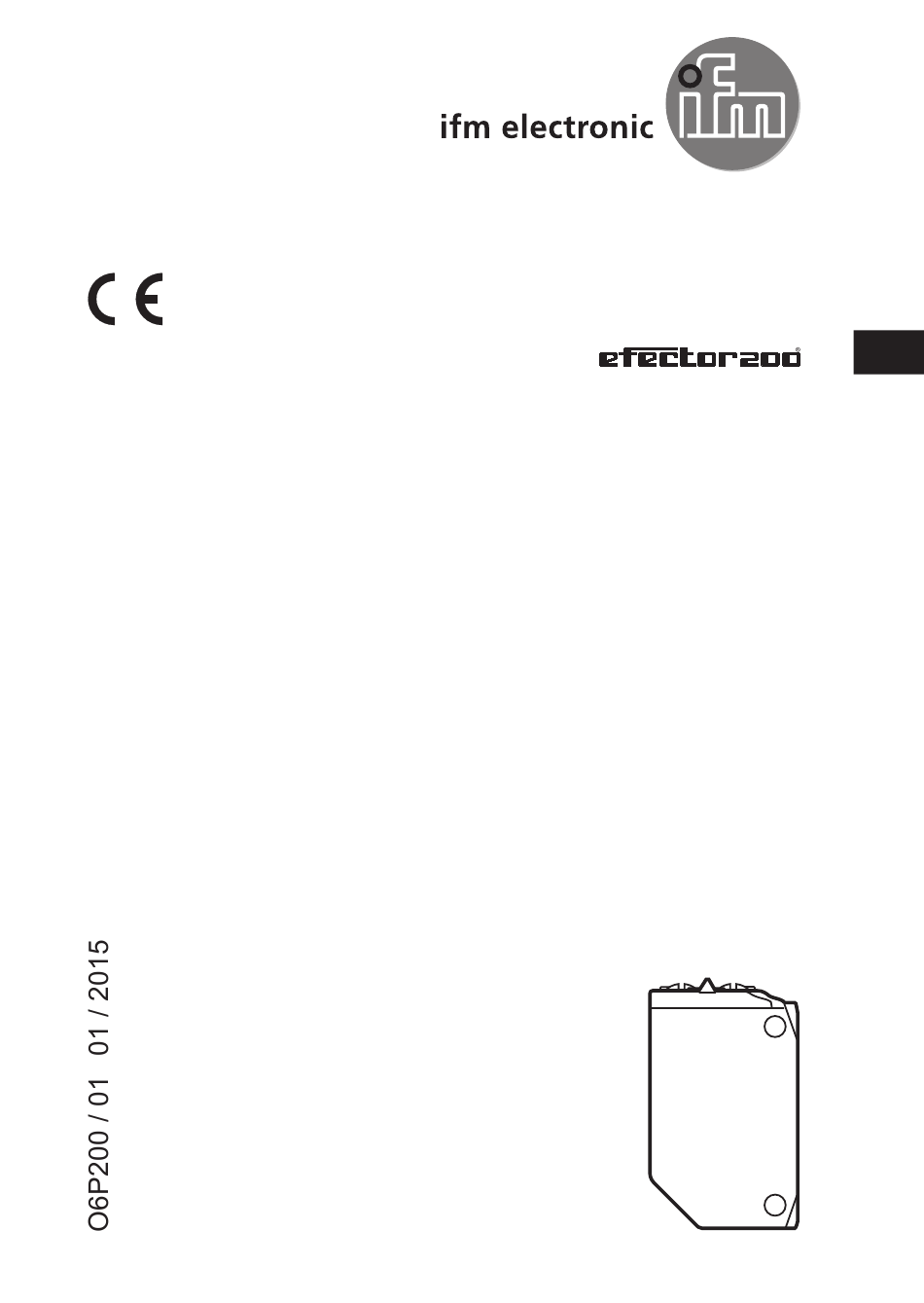

  • Page 1 Operating instructions Retro-reflective sensor O6P2...

  • Page 2: Symbols Used

    1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result […] Designation of pushbuttons, buttons or indications → Cross-reference Important note Non-compliance can result in malfunctions or interference. 2 Functions and features In conjunction with a prismatic reflector or reflective tape the retro-reflective sen- sor detects objects and materials without contact and indicates their presence by a switching signal.
  • Page 3 4 Operating and display elements 1: LED yellow - switching output active 2: Setting potentiometer „sensitivity“ 3: LED green - operation, stability indication 4: Selector „output function“ 4.1 Stability indication The green LED is lit when the supply voltage is applied and there is sufficient excess gain.

  • Page 4: Electrical Connection

    5 Electrical connection The unit must be connected by a qualified electrician. ► The national and international regulations for the installation of electri- cal equipment must be adhered to. ► Ensure voltage supply to EN 50178. ► Disconnect power. ► Connect the unit as follows: 5.1 PNP Connector M12 pigtail Cable *...
  • Page 5 6 Settings 6.1 Set the output function ► Setting D: dark-on mode ► Setting L: light-on mode 6.2 Set the sensitivity ► Increase sensitivity: turn the setting screw of the potentiometer clockwise. ► Decrease sensitivity: turn the setting screw of the potentiometer anti- clockwise.
  • Page 6 ► For cleaning do not use any solvents or cleaning agents which could damage the plastic parts. ► After use dispose of the unit in an environmentally friendly way in accordance with the applicable national regulations. Faulty sensors must only be repaired by the manufacturer. Technical data and further information at unter www.ifm.com...
