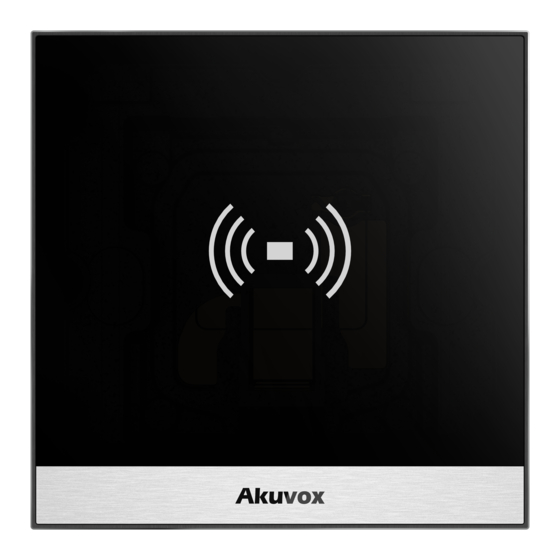

Access control terminal
Hide thumbs Also See for A01:

Advertisement

Version: 1.0 | Date: Jan.2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Akuvox A01

  • Page 1 Version: 1.0 | Date: Jan.2021...
  • Page 2 This manual applies to 101.30.0.70 version, and it provides all the configurations for the functions and features of A01 access control terminals. Please visit Akuvox forum or consult technical support for any...
  • Page 3 Introduction of Icons and Symbols Warning:  Always abide by this information in order to prevent the persons from injury. Caution:  Always abide by this information in order to prevent the damages to the device. Note:  Informative information and advice from the efficient use of the device.
  • Page 4 Related Documentation You are advised to refer to the related documents for more technical information via the link below: http://wiki.akuvox.com...
  • Page 5: Table Of Contents

    Table of Contents 1. Product Overview....................1 2. Change Log......................2 3. Model Specification....................3 4. Introduction to Configuration Menu..............4 5. Access the Device....................5 6. Time Setting......................6 7. LED Setting......................7 7.1. Brightness Setting..................7 8. Volume and Tone Configuration................8 8.1.1. Volume Configuration................8 8.1.2.
  • Page 6 16. Firmware Upgrade....................28 17. Backup......................... 29 18. Auto-provisioning....................30 18.1. Provisioning Principle................30 18.2. Configuration Files for Auto-provisioning.......... 31 18.3. AutoP Schedule..................32 18.4. DHCP Provisioning Configuration............33 18.5. Static Provisioning Configuration............35 19. Integration with Third Party Device..............37 19.1.
  • Page 7: Product Overview

    Equipped with a card reader ( 125kHz and 13.5MHz) which is capable of handling a majority of cards in wide use currently. A01 is designed to provide you with greater flexibility and security than those traditional access control systems.A01 access control terminal applies to residential buildings, office...
  • Page 8: Change Log

    A01 Access Control Admin Guide 2.Change Log The change log will be updated here along with the changes in new software version. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 9: Model Specification

    A01 Access Control Admin Guide 3.Model Specification Model & Feature Front panel: Toughened Front panel: Touch Glass Keypad Housing Material Frame: Aluminum Alloy Frame: Aluminum Alloy Relay Out Input Wiegand √ √ √ √ 128M 128M 128M 128M Card Reader 13.56MHz&125KHz...
  • Page 10: Introduction To Configuration Menu

    2. Akuvox Upgrade tool: Upgrade Akuvox devices in batch on a LAN (Local Area Network). 3. Akuvox PC Manager: Distribute all configuration items in batch on a LAN. 4. IP scanner: it is used to search Akuvox device IP addresses on a LAN. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 11: Access The Device

    A01 Access Control Admin Guide 5.Access the Device Before configuring Akuvox A01, please make sure the device is installed correctly and connect a normal network. Using Akuvox IP scanner tool to search the device IP address in the same LAN. Then use the IP address to login in the web browser by user name and password admin and admin.
  • Page 12: Time Setting

    A01 Access Control Admin Guide Note  Google Chrome browser is strongly recommended.  The Initial user name and password are “admin” and please be case-sensitive to the user names and passwords entered. 6.Time Setting Time setting on the web interface allows you to set up time and date manually while allowing you to use NTP server address that you obtained to automatically synchronize your time and date.
  • Page 13: Led Setting

    A01 Access Control Admin Guide Note:  When the check box is unticked, the parameters related to NTP server will become not editable. 7.LED Setting 7.1. Brightness Setting If you want to brighten up the brightness in order to see the card reader at greater ease in an environment with higher light intensity, you need to set up the related parameters in web Hardware >...
  • Page 14: Volume And Tone Configuration

    A01 Access Control Admin Guide 8.Volume and Tone Configuration Volume and tone configuration in A01 access control terminal refers to tamper alarm volume, voice prompt volume and open-door tone configuration. Moreover, you can upload the tone you like to enrich your personalized user experience.
  • Page 15: Upload Open Door Tone

    A01 Access Control Admin Guide 8.1.2. Upload Open Door Tone You can upload the Open-Door Tone on the device web interface.To configure the configuration on web Hardware > Audio > Open Door Tone Setting interface. 9.Network Setting You can configure the default DHCP mode (Dynamic Host Configuration Protocol) and static IP connection.
  • Page 16: Relay Setting

    A01 Access Control Admin Guide  Subnet Mask: set up the subnet mask according to your actual network environment.  Default Gateway: set up the correct gateway default gateway according to the IP address of the default gateway.  Preferred/Alternate DNS: set up DNS1/ DNS2 (Domain Name Server) according to your actual network environment.
  • Page 17: Web Relay Setting

    A01 Access Control Admin Guide be delayed for 5 after the door is unlocked.  Relay Status: relay status is low by default which means normally closed (NC) If the relay status is high, then it is in Normally Open status (NO).
  • Page 18 A01 Access Control Admin Guide Parameter Set-up:  Type: select among three options Disabled, WebRelay and Both. Select WebRelay to enable the web relay. Select Disable to disable the web relay. Select Both to enable both local relay and web relay.
  • Page 19: Door Access Schedule Management

    A01 Access Control Admin Guide Door Access Schedule Management You are required to configure and make schedule for the user-based door access via RF card. 11.1. Configure Door Access Schedule You can create door access schedules so that they can be later conveniently applied to the door access control intended for individual user or a group of users created.
  • Page 20 A01 Access Control Admin Guide Click + Add to create a daily schedule, select Schedule Mode as Daily. Click + Add to create a weekly schedule, select Schedule Mode as Weekly. Click + Add to create a longer period schedule, select Schedule Mode as Normal.
  • Page 21: Import And Export Door Access Schedule

    A01 Access Control Admin Guide 11.1.2.Import and Export Door Access Schedule In addition to creating door access schedule separately, you can also conveniently import or export the schedules in order to maximize your door access schedule management efficiency. To configure the configuration on web Directory >...
  • Page 22: Door Unlock Configuration

    12. Door Unlock Configuration A01 access control terminal offer you three types of door access via RF card. You can configure them on web interface. Moreover, you can import or exporting the user configured files including access control information.
  • Page 23: Configure Rf Card Code Format

    NFC(Near Field Communication) is popular way for door access. It uses radio waves for data transmission interaction. A01 supports to be unlocked by NFC. You need to create a card number in user page then add it to your NFC AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 24: Unlock By Http Command On Web Browser

    A01 Access Control Admin Guide wallet of smart phone. To configure the configuration on web Hardware > Card Reader > NFC interface. Note:  NFC feature is only supported by Android telephone. 12.1.3. Unlock by HTTP Command on Web Browser...
  • Page 25: Unlock By Exit Button By The Door

    A01 Access Control Admin Guide Please refer to the following example: http://192.168.35.127/fcgi/do?action=OpenDoor&UserName=admin&Passw ord=12345&DoorNum=1 Note:  DoorNum in the HTTP command above refers to the relay number #1 to be triggered for the door access. 12.1.4. Unlock by Exit Button by the Door...
  • Page 26: Unlock By Pin Code

    A01 Access Control Admin Guide  Execute Relay: set up relays to be triggered by the input.  Door Status: display the status of input signal. 12.1.5. Unlock by PIN Code A02 supports open the door via pin code.You can set up PIN code on the Directory>User, click “Add”, then input the private code.
  • Page 27: Access Authentication Mode

    A01 Access Control Admin Guide Parameter Set-up:  Enabled: click the checkbox to enable the public pin code.  PIN Code: input the public pin code.(The code should contain 2-8 digits.) 12.2. Access Authentication Mode 12.2.1. Access Authentication Mode Configuration A02 supports dual access authentication mode.
  • Page 28: Security

    A01 Access Control Admin Guide Parameter Set-up:  Enter Interval(Sec): set up the interval time from 1 to 10 seconds.For example, if you set the interval time as 5 seconds, then the interval between the two access authentication must be limited within 5 seconds.
  • Page 29: Security Notification Setting

    A01 Access Control Admin Guide  Enable: tick the check box to enable the tamper alarm function. When the tamper alarm goes off, you can press the Disarm tab beside the check box to clear the alarm.  Key Status: temper alarm will not be triggered unless the key status is shifted from “Low”...
  • Page 30 A01 Access Control Admin Guide Parameter Set-up:  Sender’s Email Name: enter the name of the email sender.  Sender's email address: enter the sender’s email address from which the email notification will be sent out.  Receiver's email address: enter the receiver’s email address.
  • Page 31: Logs

    A01 Access Control Admin Guide 14. Logs 14.1.Access Log If you want to search and check on door access history, you can search and check the door logs on the device web Status > Access Log interface. AKUVOX SMART INTERCOM...
  • Page 32: Debug

    A01 Access Control Admin Guide Parameter Set-up:  Save Door Log Enabled: Tick the check box to turn on or turn off the door log function.  Status: select between “Success” and “Failed” options to search for successful door accesses or Failed door accesses.
  • Page 33: Pcap For Debugging

    15.2.PCAP for Debugging PCAP in A01 access control terminal is used to capture the data package going in and out of the devices for debugging and troubleshooting purpose. You can set up the PCAP on the device web System > Maintenance > PCAP interface properly before using it.
  • Page 34: Firmware Upgrade

    1MB. 16. Firmware Upgrade Firmware of different versions for A01 access control terminal can be upgraded on the device web System > Upgrade interface. AKUVOX SMART INTERCOM...
  • Page 35: Backup

    A01 Access Control Admin Guide Note:  Firmware files should be .rom format for upgrade. 17. Backup Configuration files can be imported to or exported out of the device to your local PC on the device web System > Maintenance > Others interface if needed.
  • Page 36: Auto-Provisioning

    A01 Access Control Admin Guide 18. Auto-provisioning Configurations and upgrading on A01 access control terminal can be done on the web interface via one-time auto-provisioning and scheduled auto- provisioning via configuration files, thus saving you from setting up configuration needed one by one manually on the access control terminal.
  • Page 37: Configuration Files For Auto-Provisioning

    Auto-provisioning is a feature used to configure or upgrade the devices in batch via third party servers. DHCP, PNP, TFTP, FTP, HTTPS are the protocols used by the Akuvox intercom devices to access the URL of the address of the third-party server which stores configuration files and firmware, which will then be used to update the firmware and the corresponding parameters on the access control terminal.
  • Page 38: Autop Schedule

    MAC-based configuration files. 18.3.AutoP Schedule Akuvox provides you with different Autop methods that enable the access control terminal to perform provisioning for itself in a specific time according to your schedule. To configure the configuration on web System > Auto Provisioning >...
  • Page 39: Dhcp Provisioning Configuration

    A01 Access Control Admin Guide schedule you set up.  Hourly Repeat: select “Hourly Repeat” if you want the device to perform Autop every hour. 18.4.DHCP Provisioning Configuration Auto-provisioning URL can also be obtained using DHCP option which allows device to send a request to a DHCP server for a specific DHCP option code. If...
  • Page 40 A01 Access Control Admin Guide Note:  The custom Option type must be a string. The value is the URL of TFTP server. Parameter Set-up:  Custom Option: enter the DHCP code that matched with corresponding URL so that device will find the configuration file server for the configuration or upgrading.
  • Page 41: Static Provisioning Configuration

    A01 Access Control Admin Guide 18.5.Static Provisioning Configuration You can manually set up a specific server URL for downloading the firmware or configuration file. If an Autop schedule is set up, the access control terminal will perform the auto provisioning on a specific timing according to Autop schedule you set up.
  • Page 42  HTTP: http://192.168.0.19/ (use the default port 80)  http://192.168.0.19:8080/ (use other ports, such as 8080)  HTTPS: https://192.168.0.19/ (use the default port 443) Tip:  Akuvox do not provide user specified server.  Please prepare TFTP/FTP/HTTP/HTTPS server by yourself. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 43: Integration With Third Party Device

    A01 Access Control Admin Guide 19. Integration with Third Party Device 19.1.Integration via Wiegand If you want to integrate the A01 access control terminal with the third-party devices via Wiegand, you can configure the Wiegand on the web Hardware > Wiegand interface.
  • Page 44: Integration Via Http Api

    19.2. Integration via HTTP API HTTP API is designed to achieve an network-based integration between the third party device with the Akuvox intercom device. You can configure the HTTP API function on the web Services > HTTP API interface for the integration.
  • Page 45: Password Modification

    A01 Access Control Admin Guide  User Name: enter the user name when “Basic” and “Digest” authorization mode is selected. The default user name is “Admin”.  Password: enter the password when “Basic” and “Digest” authorization mode is selected. The default user name is “Admin”.
  • Page 46: System Reboot And Reset

    A01 Access Control Admin Guide  Session Time Out Value: if there is no operation over the time, you need to login the website again. 21. System Reboot and Reset 21.1.Reboot If you want to restart the device, you can operate it on the device web System >...
  • Page 47: Reset

    If you want to reset the device system to the factory setting, you can it on the web System > Upgrade interface. You can also hold the reset button 12s on the back of A01 to reset. AKUVOX SMART INTERCOM...
  • Page 48: Abbreviations

    A01 Access Control Admin Guide 22. Abbreviations ACS: Auto Configuration Server Auto: Automatically AEC: Configurable Acoustic and Line Echo Cancelers ACD: Automatic Call Distribution Autop: Automatic Provisioning AES: Advanced Encryption Standard BLF: Busy Lamp Field COM: Common CPE: Customer Premise Equipment...
  • Page 49 A01 Access Control Admin Guide PCMA: Pulse Code Modulation A-Law PCMU: Pulse Code Modulation µ-Law PCAP: Packet Capture PNP: Plug and Play RFID: Radio Frequency Identification RTP: Real-time Transport Protocol RTSP: Real Time Streaming Protocol MPEG: Moving Picture Experts Group...
  • Page 50: Faq

    A01 Access Control Admin Guide 23. FAQ Q1: How to obtain IP address of access control terminal? A1: Using Akuvox IP Scanner to search Akuvox devices in the same LAN network. Q2: What is the supported temperature range for A01 ? A2: Working Temperature: -20°C ~ +55°C...
  • Page 51: Contact Us

    A01 Access Control Admin Guide 24. Contact Us For more information about the product, please visit us at www.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: support@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
