Version: 1.0 | Date: Jan.2021
Version: 1.0 | Date: June.2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A092 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Akuvox A092 Series

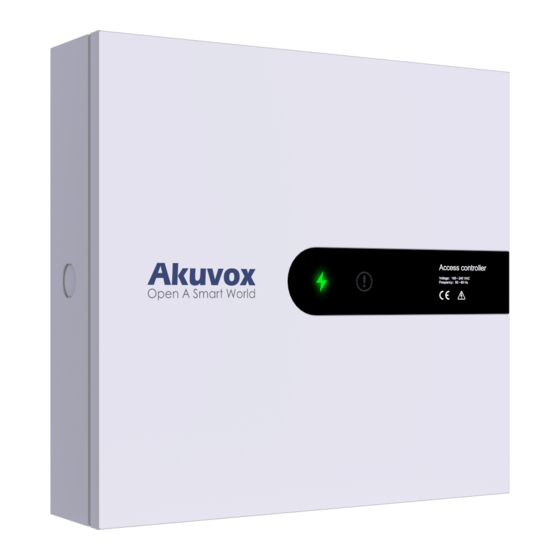

Summary of Contents for Akuvox A092 Series

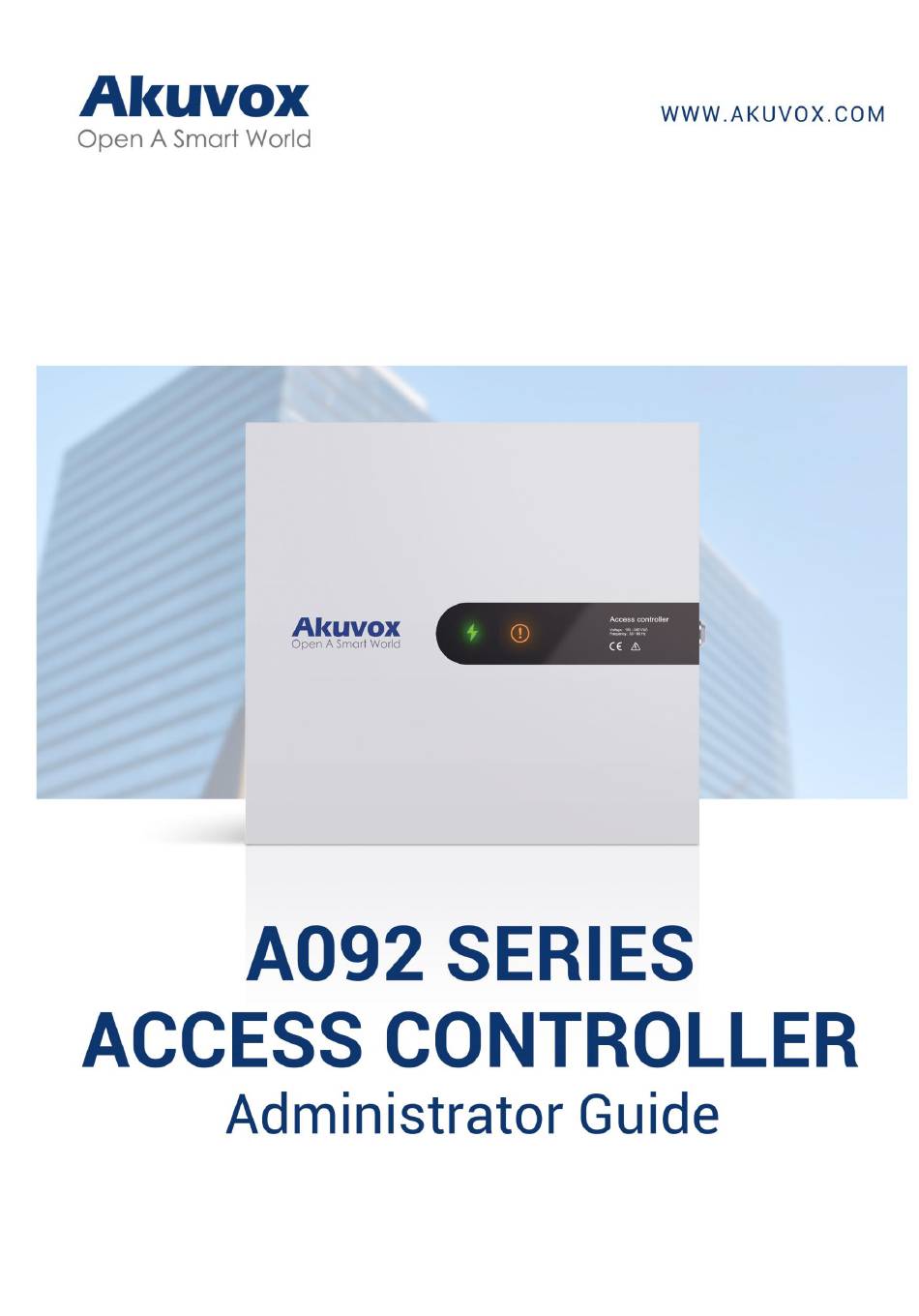

  • Page 1 Version: 1.0 | Date: Jan.2021 Version: 1.0 | Date: June.2021...
  • Page 2 About This Manual Thank you for choosing Akuvox A092 series access controller. This manual is intended for the administrators who need to properly configure the access controller. This manual applies to the version 92.30.1.6, and it provides all the configurations for the functions and features of Akuvox access control.
  • Page 3 Introduction of Icons and Symbols Warning:  Always abide by this information in order to prevent the persons from injury. Caution:  Always abide by this information in order to prevent the damages to the device. Note:  Informative information and advice from the efficient use of the device.
  • Page 4 LED Indicator Light Status Indicator Icons Light status Description Light  The light turns on when the device is powered on Power indicator  The light turns off when the device is powered off  The orange light will stay Permanently on when the device failed to obtain the IP address...
  • Page 5 Related Documentation You are advised to refer to the related documents for more technical information via the link below: http://wiki.akuvox.com...

  • Page 6: Table Of Contents

    Table of Contents 1. Product Overview....................1 2. Access the Device....................2 2.1. Obtain Device IP Address................2 2.2. Access the Device Web Interface..............2 3. Language and Time Setting.................. 4 3.1. Language Setting..................4 3.2. Time Setting....................4 4. Network Configuration...................6 4.1. Network Status.................... 6 4.2.
  • Page 7 13.1. Provisioning Principle................35 13.2. Configuration Files for Auto-provisioning.......... 36 13.3. AutoP Schedule..................37 13.4. Static Provisioning Configuration............38 14. Integration with Third Party Device..............40 14.1. Integration via Wiegand................. 40 14.2. Integration via RS485................40 14.3. Configure HTTP API for the Third-party Integration......41 14.4.

  • Page 8: Product Overview

    A092 Access Controller Administrator Guide 1.Product Overview Akuvox A092 series access controller is Android-based. It has multiple ports, such as RS485 and Wiegand ports that can be used to easily integrate with external digital systems, such as card readers, elevator controller and fire alarm detector, helping to create a holistic control of building entrance and its surroundings.

  • Page 9: Access The Device

    2.1. Obtain Device IP Address To access the device web interface, you need to obtain the device IP address using Akuvox IP scanner.You can just click Search to find the device IP address 2.2. Access the Device Web Interface Enter the device IP address on the web browser in order to log in the device web interface where you can configure and adjust parameter etc.
  • Page 10 A092 Access Controller Administrator Guide Note  Google Chrome browser is strongly recommended. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 11: Language And Time Setting

    NTP server of its time zone in order that the NTP server can synchronize the time zone set-up in your device. You can go to Setting > Time/Lang > NTP for the setting. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 12  Update Interval: to configure interval between two consecutive NTP requests.  System: system is the current device system time, which is in 24 hour format by default. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 13: Network Configuration

    To do so , you can go to Network > Basic on the device web interface. Parameter Set-up:  DHCP: select the DHCP mode by moving the toggle switch to the right. DHCP mode is the default network connection. If the DHCP mode is AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 14: Configure Web Server

    Network > Advanced> Web Server on the web interface for the setting. Parameter Set-up:  Http Enable: enable it if you allow the device web interface to be accessed via http protocol, or disable it if you want to deny the access AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 15: Tr069

    It includes both a safe auto configuration and the control of other CPE management functions within an integrated framework. Parameter Set-up:  Active: enable it when you want to activate the TR069 function on the ACS server side.  Version: select the TR069 version. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 16: Snmp

    These variables can then be queried by managing applications. These variables accessible via SNMP are organized in hierarchies, which are described by Management Information Bases (MIBs). Parameter Set-up: AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 17 A092 Access Controller Administrator Guide  Active: enable or disable the SNMP function. The default setting is Disabled.  Port: Specific the port for the data transmission from 1024-65535.  Trusted IP: enter the third-party IP address. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 18: Relay Setting

    “ 5” Sec. then the relay will be delayed for 5s after the door is unlocked.  Relay Status: relay status is low by default which means normally AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 19: Configure Web Relay

    Select Both to enable both local relay and web relay.  IP Address: enter the web relay IP address provided by the web relay manufacturer.  User Name: enter the User name provided by the web relay manufacturer. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 20  Web Relay Extension: enter the relay extension information, which can be a SIP number of an intercom device such as an indoor monitor, so that the specific action command will be sent when unlock is performed on the intercom device. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 21: Door Access Schedule Management

     Schedule Type: select “Daily” Type if you to run the door access control on the daily basis.  Schedule Name: create a door access schedule name  Data Time:Set up the time schedule for the validity of the door access during a day. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 22  Date Time:Set up the time schedule for the validity of the door access during a day.  To create a longer period schedule  Schedule Type: select “Weekly” Type if you to run the door access control on the daily basis. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 23: Import And Export Door Access Schedule

    If you want to edit or delete your door access schedule you created, you can edit or delete the selected configured schedule separately or in batch on the web interface. To do so, you can go to Access Control > Schedules Setting/Schedule Manage on the web interface. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 24 A092 Access Controller Administrator Guide AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 25: Door Unlock Configuration

     Configure RF card manually You can go to Access Control > Card Setting > RFID where you can add set up RF card and assign the specific card with a RF card validity schedule for the door access AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 26  IC Key WebRelay: enter the web relay action ID so that so that the web relay can be triggered using RFID card for door access. When 0 is selected, then the web relay will not be triggered and it will trigger the AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 27  Import/Export Card data of access control A092 access controllers support card data of access control to be shared among Akuvox access controllers through import and export while you can also export the card data out of the access controller and then import to a third party device.

  • Page 28: Edit/Delete Access Card Control Schedule

    After the RFID card is assigned with an access control schedule, you can edit or delete the the schedule if needed. You can go to Access Control > Card Setting Door Card Management to select the specific schedule and go to Cart Setting on the same page. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 29: Configure Open Relay Via Http For Door Unlock

     User Name: enter the user name of the device web interface for authentication purpose , for example “Admin”.  Password: enter the password for the HTTP command for authentication purpose. For example : “12345”. Please refer to the following example: http://192.168.35.127/fcgi/do?action=OpenDoor&UserName=admin&Passw ord=12345&DoorNum=1 AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 30: Configure Exit Button For Door Unlock

    5 seconds., then the corresponding actions will be carried out 5 minutes after your press the button.  Open Relay: set up relays to be triggered by the input. It is None by AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 31 A092 Access Controller Administrator Guide default  Door Status: display the status of input signal. It is High by default. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 32: Security

    If you want to receive the security notification via email after door unlock , you can configure the Email notification on the web interface: Setting > Action > Email Notification. The email notification contains the captured images. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 33: Ftp Notification Setting

     Email Subject: enter the subject of the email.  Email Content: compile the emails contents according to your need  Email Test: click on Test email to check if the information are correct. 8.1.2.FTP Notification Setting AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 34  FTP Server: enter the address (URL) of the FTP server for the FTP notification.  FTP User Name: enter the FTP server user name.  FTP Password: enter the FTP server password.  FTP Path: enter the folder name you created in FTP server. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 35: Call Log

    If the door is unlocked by Exit button, then it will be display low or high depending on voltage level applied. If the door is unlocked by the HTTP command , then the AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 36  Time:displays the door unlock time.  Status:displays door unlock result.  Choose File: choose the log file from your local PC.  Import: imported the log file you selected.  Export: export the existing log file to your local PC. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 37: Debug

     Connect Status:displays the remote debug server connection status.  IP: fill in the remote debug server IP address.  Port: fill in the remoter debug server port (1024-65535). The Akuvox test remote debug server port is 9500. leave the field blank by default.

  • Page 38: Pcap For Debugging

     Export Log: click the Export tab to export temporary debug log file to a local PC.  Remote System Server: enter the remote server address to receive the the device log. And the remote server address will be provide by Akuvox technical support. 10.3.PCAP for Debugging PCAP is used to capture the data package going in and out of the devices for debugging and troubleshooting purpose.
  • Page 39 1M maximum in capacity. If you set it as “ Disable” the PCAP will stop data packet capturing when the data packet captured reached the maximum capturing capacity of 1MB. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 40: Firmware Upgrade

    Firmwares for A092 access controller can be upgraded on the device web interface, you can go to Upgrade > Basic to upgrade the firmware. Parameter Set-up:  Upgrade: Choose .rom firmware from your PC, then click Submit to update. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 41: Backup

     Choose File: choose the configuration file to be imported from your Local  Import: import the new configuration file to the device.  Export: export the encrypted existing config file from your device to your AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 42: Auto-Provisioning Via Configuration File

    Auto-provisioning is a feature used to configure or upgrade the devices in batch via third party servers. DHCP, PNP, TFTP, FTP, HTTPS are the protocols used by the Akuvox intercom devices to access the URL of the address of the third party server which stores configuration files and firmwares, which will then be used to to update the firmware and the corresponding parameters on the access controller.

  • Page 43: Configuration Files For Auto-Provisioning

    Advanced > Automatic Autop on the web interface. Note:  If a server has these two types of configuration files, then IP devices will first access the general configuration files before accessing the MAC-based configuration files. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 44: Autop Schedule

    A092 Access Controller Administrator Guide 13.3.AutoP Schedule Akuvox provides you with different Autop methods that enable the access controller to perform provisioning for itself in a specific time according to your schedule. You can go to Upgrade > Advanced > Automatic Autop for the setting.

  • Page 45: Static Provisioning Configuration

     AES Key (MAC): set up AES code for the intercom to decipher the MAC-based auto provisioning configuration file. Note:  AES is one type of encryption, it should be configured only when the config file is encrypted with AES, otherwise leave the field blank. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 46  HTTP: http://192.168.0.19/ (use the default port 80)  http://192.168.0.19:8080/ (use other ports, such as 8080)  HTTPS: https://192.168.0.19/ (use the default port 443) Tip:  Akuvox do not provide user specified server.  Please prepare TFTP/FTP/HTTP/HTTPS server by yourself. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 47: Integration With Third Party Device

    RS485 allows you to connect A092 access controller with the third party devices such as lift controller etc to achieve the lift control. You can go to Device > RS485 > RS485 List for the setting. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 48: Configure Http Api For The Third-Party Integration

    14.3.Configure HTTP API for the Third-party Integration HTTP API is designed to achieve an network-based integration between the third party device with the A092 access controller. You can go to Security> HTTP API for the setting. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 49 Mode No authentication is required for HTTP API as None it is only used for demo testing. This mode is used by Akuvox developer only. Normal If this mode is selected, you are only required WhiteList to fill in the IP address of the third party device for the authentication.

  • Page 50: Power Output Control

    In Authorization field of Http request header: WWW-Authenticate:Digest realm="HTTPAPI",qop="auth,auth-int",nonce=" xx", opaque="xx". This mode is used by Akuvox developer only Token 14.4.Power Output Control A092 access controller can also serve as a power supply for the third party devices such as card reader and door strike etc. To set up power output, you can go to Access Control >...

  • Page 51: Account &Password

     Change password: click on it to change the password.  Admin: it is enabled by default and is not modifiable  User: enable or disable the user account according to your need. When the user account is disable, it will invalidate the user account. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 52: System Reboot&Reset

    You can go to Upgrade > Advanced > Reboot Schedule for the reboot. Parameter Set-up:  Mode: enable or disable the reboot schedule according to your need.  Schedule: select the time schedule for the reboot. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 53: Reset

    A092 Access Controller Administrator Guide 16.2.Reset If you want to reset the device system to the factory setting, you can go to Upgrade > Basic on the web interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 54: Abbreviations

    FTP: File Transfer Protocol GND: Ground HTTP: Hypertext Transfer Protocol HTTPS: Hypertext Transfer Protocol Secure Socket Layer IP: Internet Protocol ID: Identification IR: Infrared LCD: Liquid Crystal Display LED: Light Emitting Diode MAX: Maximum POE: Power Over Ethernet AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 55 SDMC: SIP Devices Management Center TR069: Technical Report069 TCP: Transmission Control Protocol TLS: Transport Layer Security TFTP: Trivial File Transfer Protocol UDP: User Datagram Protocol URL: Uniform Resource Locator VLAN: Virtual Local Area Network WG: Wiegand AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 56: Faq

    “3888” and “OK” to enter the system setting screen. Go to info screen to check the IP address. ✔Common method: Using Akuvox IP Scanner to search Akuvox devices in the same LAN network. Q2: Do Akuvox devices support opus codec? A2: For now, only Akuvox Android video IP phone R48G can support Opus audio codec.
  • Page 57 A6: Sorry, they are not supported. They need to be implemented via hardware modifications. Q7: How to confirm whether my device is hardware version 1 or hardware version 2? A7: 1.Label  Hardware version 1  Hardware version 2 AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 58 220.X.X.X is hardware version 2.  Hardware version The firmware is different between hardware version1 and hardware version 2. Go to Web-Status -Firmware Version. If the hardware version is 220.x, then the device is hardware version 2. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 59: Contact Us

    A092 Access Controller Administrator Guide 19. Contact us For more information about the product, please visit us atwww.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: support@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
