GV50(P) User Manual
GPRS/GNSS Tracker
TRACGV50UM001
Version: 1.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Queclink GV50

Summary of Contents for Queclink GV50

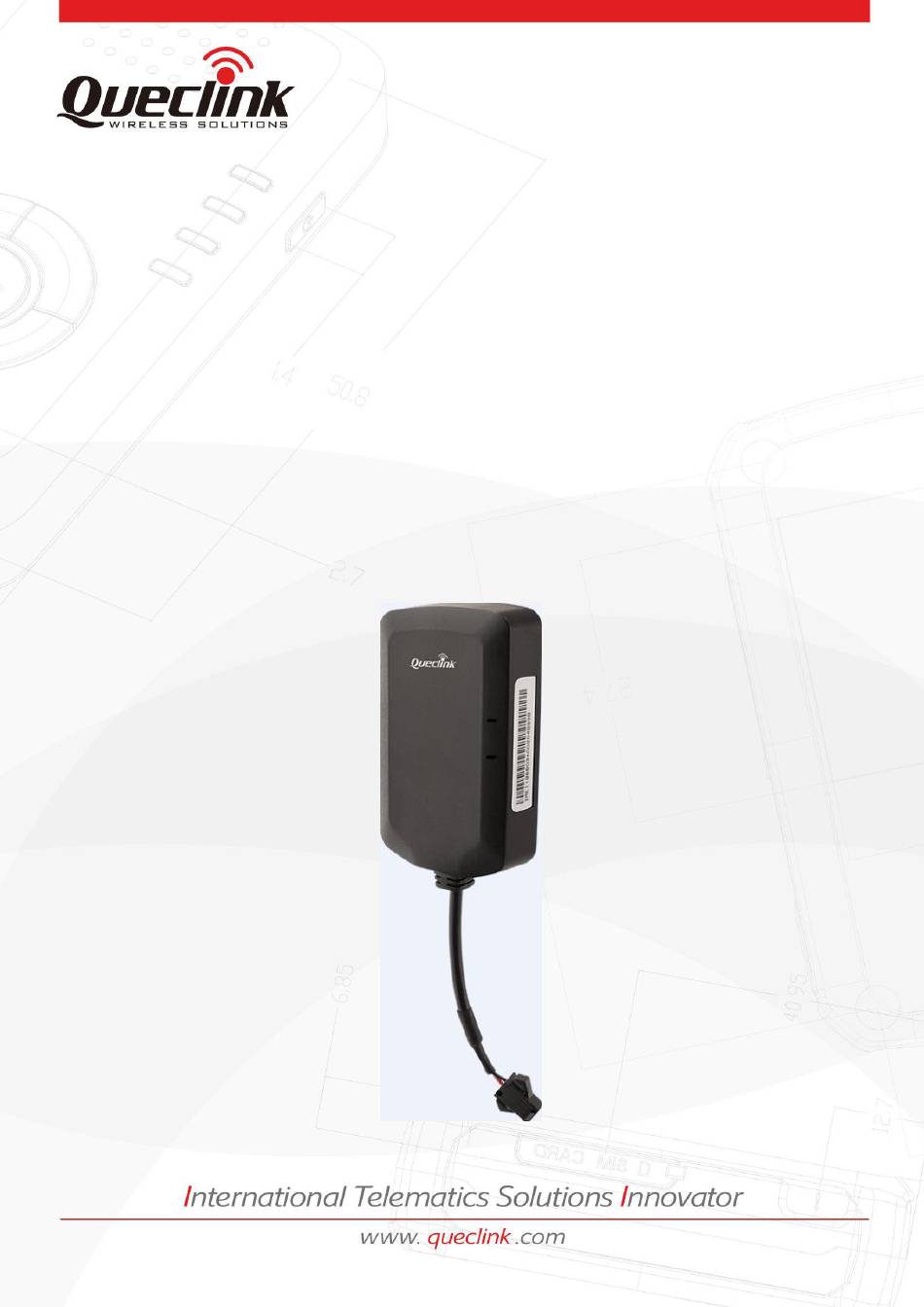

  • Page 1 GV50(P) User Manual GPRS/GNSS Tracker TRACGV50UM001 Version: 1.01...
  • Page 2 TRACGV50UM001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.

  • Page 3: Table Of Contents

    2.3.1 GV50 External Interface ....................8 2.3.2 GV50P External Interface .................... 9 2.3.3 Internal Interface ......................9 2.4 GV50(P) Extension Cable Color ..................10 3. Getting Started ..........................12 3.1 Opening the Case ....................... 12 3.2 Closing the Case ......................... 12 3.3 Installing a SIM Card ......................
  • Page 4 TABLE 4. DESCRIPTION OF 2-PIN CABLE .................... 9 TABLE 5. DESCRIPTION OF 4-PIN CABLE .................... 9 TABLE 6. GV50 2-PIN EXTENSION CABLE COLOR DEFINITION ............10 TABLE 7. GV50P 4-PIN EXTENSION CABLE COLOR DEFINITION ............10 TABLE 8. DEFINITION OF DEVICE STATUS AND LED ................. 15...
  • Page 5 FIGURE 8. INSTALLING A SIM CARD ....................13 FIGURE 9. INSTALLING THE INTERNAL BACKUP BATTERY ..............13 FIGURE 10. SWITCH AND ON/OFF POSITION .................. 14 FIGURE 11. TYPICAL POWER CONNECTION ..................15 FIGURE 12. GV50(P) LEDS ON THE CASE ..................15 TRACGV50UM001 - 4 -...

  • Page 6: Revision History

    GV50 (P) User Manual 0. Revision History Revision Date Author Description of Change 1.00 2016-11-28 Pablo Dang Initial 1.01 2017-06-17 Pablo Dang Added GV50P related information. TRACGV50UM001 - 5 -...

  • Page 7: Introduction

    GV50 (P) User Manual 1. Introduction GV50(P) is a mini GPS tracker designed for a wide variety of vehicle tracking applications. Its built-in GPS receiver has superior sensitivity and fast time to first fix. Its quad band GPRS subsystem supports 850/1900 MHz, allowing the GV50(P)'s location to be monitored in real time or periodically tracked by a backend server and mobile devices.

  • Page 8: Product Overview

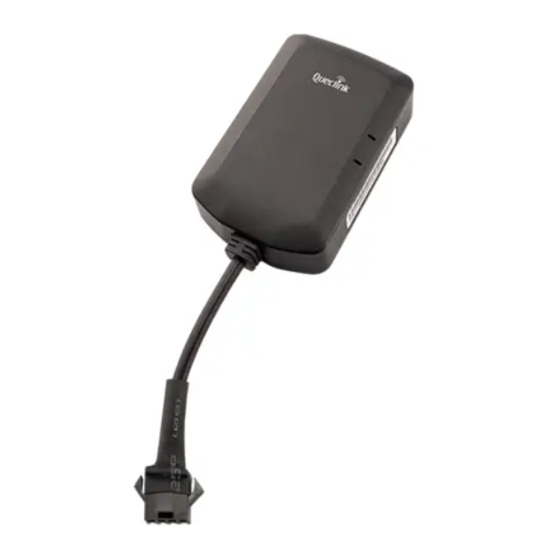

    GV50 (P) User Manual 2. Product Overview 2.1 Check Parts List Before starting, check all the following items have been included with your GV50(P). If anything is missing, please contact your supplier. Figure 1. Appearance of GV50 Figure 2. Appearance of GV50P...

  • Page 9: Parts List

    User Cable Table3. GV50 P Parts List Name Picture GV50 P Locator User Cable 2.3 Interface Definition 2.3.1 GV50 External Interface GV50 has a 2 PIN cable. The pin definition of the 2-Pin cable is shown below. TRACGV50UM001 - 8 -...

  • Page 10: Gv50P External Interface

    Table 5. Description of 4-Pin Cable Index Description Remark VIN (red) External DC power input, 8-32V GND (black) OUTPUT(brown) Digital output IGN (white) Ignition 2.3.3 Internal Interface GV50(P) has a Micro USB connector which is shown in the following figure. TRACGV50UM001 - 9 -...

  • Page 11: Gv50(P) Extension Cable Color

    GV50(P) User Manual Figure 5. GV50(P) Micro USB Connector 2.4 GV50(P) Extension Cable Color Table 6. GV50 2-Pin Extension Cable Color Definition Pin No Definition Color Cable black Table 7. GV50P 4-Pin Extension Cable Color Definition Pin No Definition Color...
  • Page 12 GV50(P) User Manual white TRACGV50UM001 - 11 -...

  • Page 13: Getting Started

    GV50(P) User Manual 3. Getting Started 3.1 Opening the Case Figure 6. Opening the Case Insert the triangular-pry-opener into the gap of the case as shown below, and push the opener up until the case unsnaps. 3.2 Closing the Case Figure 7.

  • Page 14: Installing A Sim Card

    GV50(P) User Manual 3.3 Installing a SIM Card Open the case and ensure the unit is not powered (unplug the 2-Pin cable and switch the internal battery to OFF position). Slide the holder right to open the SIM card. Insert the SIM card into the holder as shown below with the gold-colored contact area facing down.

  • Page 15: Switching On The Backup Battery

    GV50(P) User Manual There is an internal backup Li-ion battery. Please install the internal backup battery as Figure 9 before use. 3.5 Switching On the Backup Battery To use the backup battery, the switch must be in the ON position. Switch and ON/OFF position are shown below.

  • Page 16: Led Status

    GPS chip is searching GPS information. Fast flashing GPS chip has got GPS information. Table 8. Definition of Device Status and LED Figure 12. GV50(P) LEDs on the Case GV50(P) has two status LEDs that are CELL LED and GPS LED. TRACGV50UM001 - 15 -...
  • Page 17 GV50(P) User Manual Note: 1. CELL LED status cannot be configured. 2. GPS LED can be configured to turn off after a period of time using the Manage Tool. Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

This manual is also suitable for:

Gv50p
