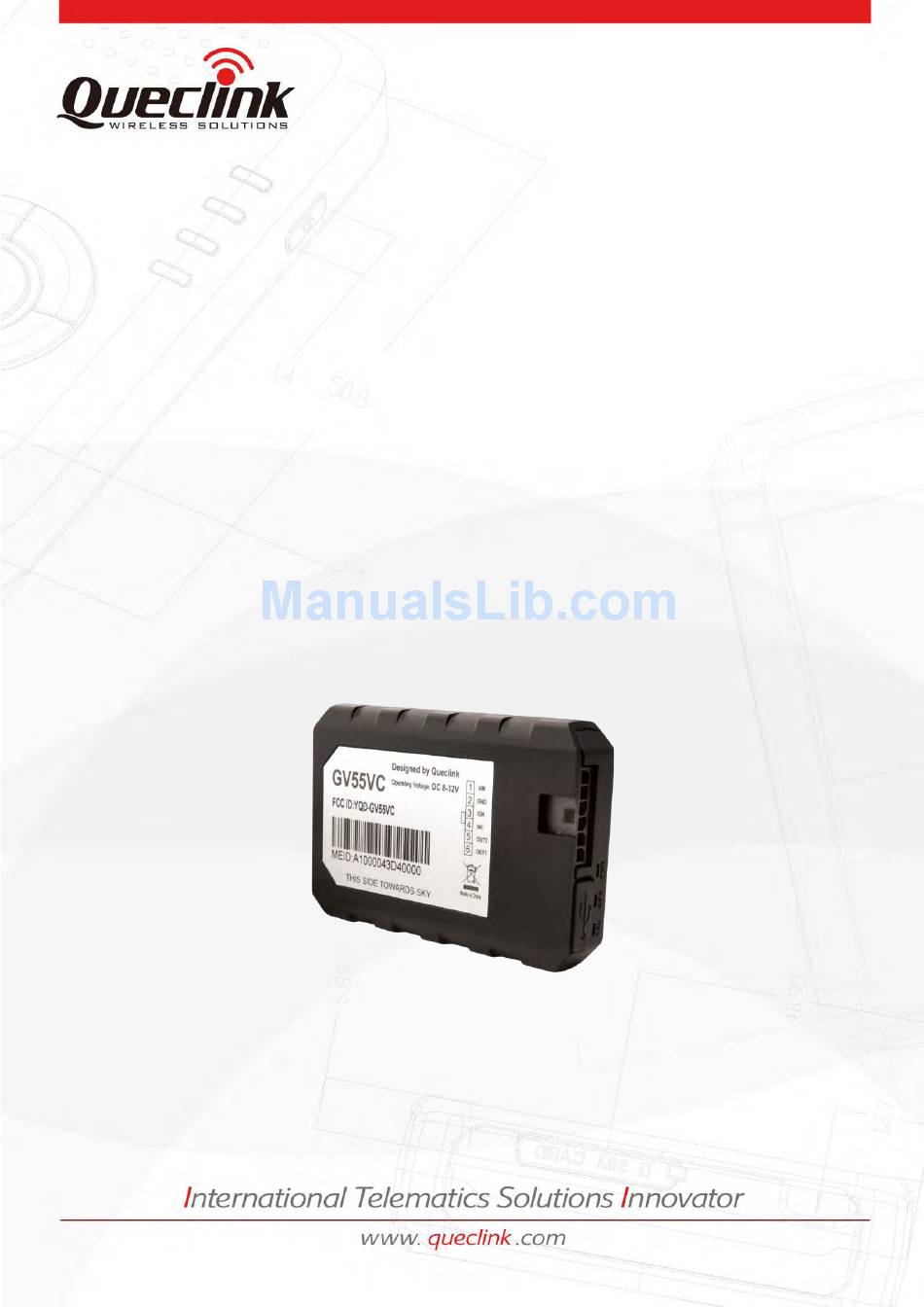

- Page 1 GV55VC User Manual GV55VC User Manual CDMA2000-1X/GPS Tracker TRACGV55VCUM001 Version: 1.00 GV55VC TRACGV55VCUM001...
- Page 2 TRACGV55VCUM001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.
-
Page 3: Table Of Contents
2.1. Check Part List ........................7 2.2. Part List ..........................7 2.3. Interface Definition ......................8 2.4. GV55VC User Cable Colour ....................9 3. Getting Started ..........................10 3.1. Opening the Case ......................10 3.2. Closing the Case ....................... 10 3.3. - Page 4 TABLE 3: PART LIST ........................... 7 TABLE 4: DESCRIPTION OF 6 PIN CONNECTIONS ..................8 TABLE 5: GV55VC USER CABLE COLOUR DEFINITION ................9 TABLE 6: ELECTRICAL CHARACTERISTICS OF IGNITION DETECTION ............11 TABLE 7: ELECTRICAL CHARACTERISTICS OF THE DIGITAL INPUTS ............12 TABLE 8: ELECTRICAL CHARACTERISTICS OF DIGITAL OUTPUTS .............
- Page 5 GV55VC User Manual Figure Index FIGURE 1: APPEARANCE OF GV55VC ......................7 FIGURE 2: THE 6 PIN CONNECTOR ON THE GV55VC ................8 FIGURE 3: OPENING THE CASE ....................... 10 FIGURE 4: CLOSING THE CASE ........................ 10 FIGURE 5: TYPICAL POWER CONNECTION ....................11 FIGURE 6: TYPICAL IGNITION DETECTION ....................
-
Page 6: Revision History
GV55VC User Manual 0. Revision history Revision Date Author Description of change 1.00 2015-1-14 York Zhu Initial Version TRACGV55VCUM001... -
Page 7: Introduction
GPS position as well as many other useful functions. Users can also use GV55VC to monitor the status of a vehicle and control the vehicle by its external relay output. System Integrators can easily setup their tracking systems based on the full-featured @Track protocol. -
Page 8: Product Overview
GV55VC User Manual 2. Product Overview 2.1. Check Part List Before starting, check all the following items have been included with your GV55VC. If anything is missing, please contact your supplier. Figure 1: Appearance of GV55VC 2.2. Part List Table 3: Part List... -
Page 9: Interface Definition
GV55VC User Manual 2.3. Interface Definition The GV55VC has a 6 PIN interface connector. It contains the connections for power, I/O. The sequence and definition of the 6PIN connector are shown in following figure: Figure 2: The 6 PIN connector on the GV55VC... -
Page 10: Gv55Vc User Cable Colour
GV55VC User Manual 2.4. GV55VC User Cable Colour Table 5: GV55VC User Cable Colour definition Definition Colour PIN No Cable Black White Orange OUT2 Green OUT1 Blue TRACGV55VCUM001... -
Page 11: Getting Started
GV55VC User Manual 3. Getting Started 3.1. Opening the Case Figure 3: Opening the Case Insert the triangular-pry-opener into the gap of the case as shown below, push the opener up until the case unsnapped. 3.2. Closing the Case Figure 4: Closing the Case Place the cover on the bottom in the position as shown in the following figure. -
Page 12: Power Connection
GV55VC User Manual cover against the direction of the arrow until it snapped. 3.3. Power Connection VIN (PIN1) / GND (PIN2) are the power input pins. The input voltage range for this device is from 8V to 32V. The device is designed to be installed in vehicles that operate on 12V/24V vehicle without the need for external transformers. -
Page 13: Digital Inputs
Figure 7: Typical Digital Input Connection 3.6. Digital Outputs There are two digital outputs on GV55VC. All are of open drain type and the maximum drain current is 150mA. Each output has the built-in over current and recovery PTC fuse... -
Page 14: Table 8: Electrical Characteristics Of Digital Outputs
GV55VC User Manual Figure 8: Digital Output Internal Drive Circuit Table 8: Electrical Characteristics of Digital Outputs Logical State Electrical Characteristics Enable <1.5V @150mA Disable Open drain Figure 9: Typical Connection with Relay TRACGV55VCUM001... -
Page 15: Device Status Led
A common diode such as a 1N4004 will work in most circumstances. 3.7. Device Status LED Figure 11: GV55VC LED on the Case GV55VC has three status led that CELL GPS PWR led. TRACGV55VCUM001... -
Page 16: Table 9: Definition Of Device Status And Led
GV55VC User Manual Table 9: Definition of Device status and LED Device is searching CELL network Fast flashing (note1) Device has registered to CELL network. Slow flashing GPS chip is powered off (note 2) GPS sends no data or data format error Slow flashing GPS chip is searching GPS info.
