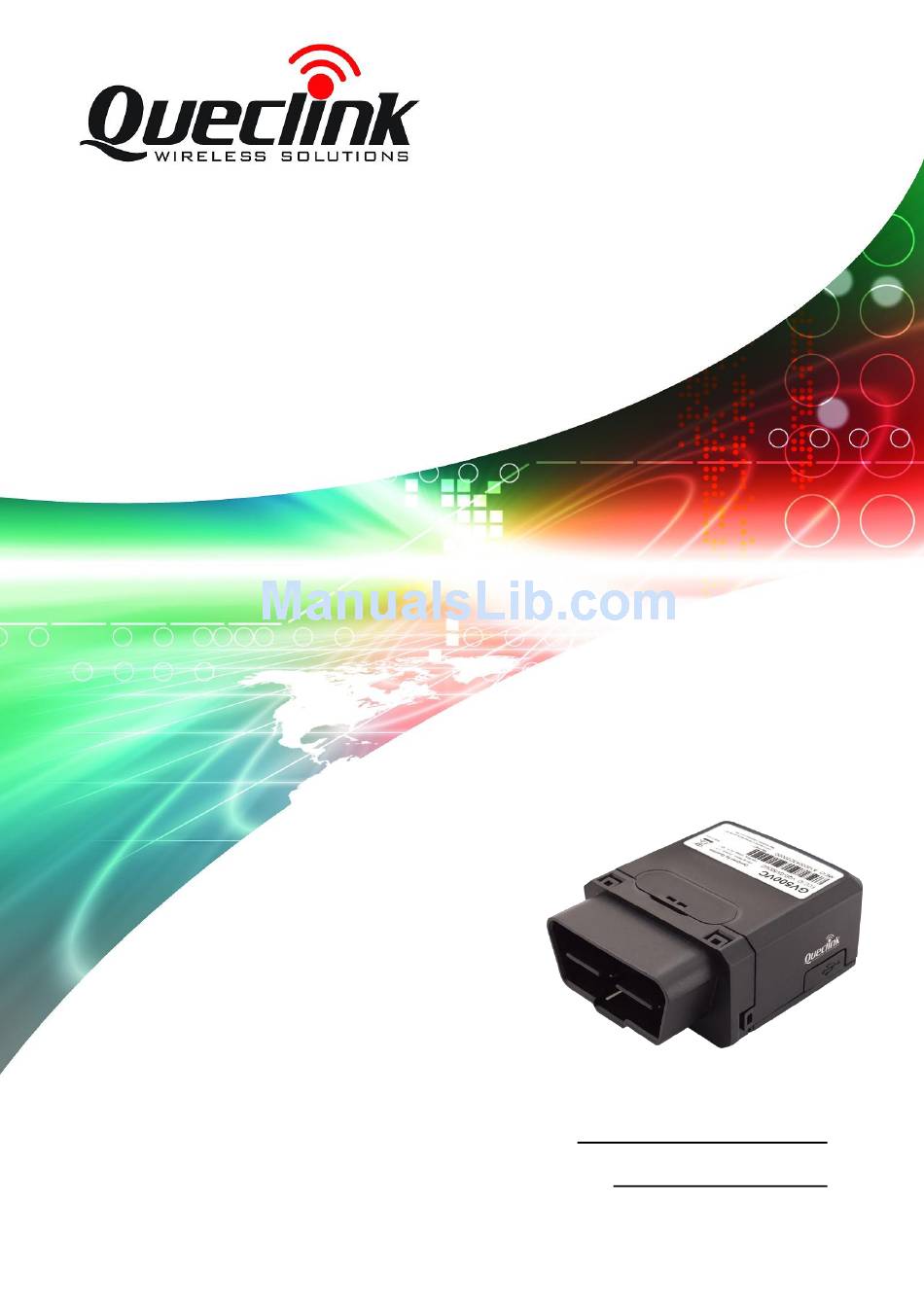

Page 1: User Manual
GV500VC User Manual GV500VC CDMA2000 1x/GPS Tracker User Manual TRACGV500VCUM001 Revision: 1.00 http://www.queclink.com sales@queclink.com TRACGV500VCUM001 - 0 -... - Page 2 Furthermore, system validation of this product designed by Queclink within a larger electronic system remains the responsibility of the customer or the customer’s system integrator. All specifications supplied herein are subject to change.
-
Page 3: Table Of Contents
GV500VC User Manual Contents Contents ............................2 Table Index ............................3 Figure Index ............................4 0. Revision history ..........................5 1. Introduction ........................... 6 1.1. Reference..........................6 1.2. Terms and Abbreviations ....................6 2. Product Overview ......................... 7 2.1. Description .......................... 7 2.2. - Page 4 GV500VC User Manual Table Index TABLE 1: GV500VC PROTOCOL REFERENCE .................. 6 TABLE 2: TERMS AND ABBREVIATIONS ..................6 TABLE 3: PART LIST ..........................7 TABLE 4: DESCRIPTION OF OBD II CONNECTIONS ..............8 TABLE 5: DEFINITION OF DEVICE STATUS AND LED ..............13 TABLE 6: COMMUNICATION PROTOCOLS LIST ................
- Page 5 GV500VC User Manual Figure Index FIGURE 1. APPEARANCE OF GV500VC..................7 FIGURE 2. THE OBD II CONNECTOR ON THE GV500VC ............8 FIGURE 3. OPENING THE CASE ....................10 FIGURE 4. CLOSING THE CASE ....................11 FIGURE 5. BACKUP BATTERY INSTALLATION ............... 12 FIGURE 6.
-
Page 6: Revision History
GV500VC User Manual 0. Revision history Revision Date Author Description of change 1.00 2015-7-30 Hazard Zhang Initial TRACGV500VCUM001 - 5 -... -
Page 7: Introduction
GV500VC User Manual 1. Introduction The GV500VC is a vehicle tracking device that plugs into a vehicle's OBDII port. Its compact design allows easy installation. Its internal OBD reader can obtain information from the vehicle's on-board computer and relay it over CDMA2000 1x networks. Its built-in GPS receiver has superior sensitivity and fast time to first fix. -
Page 8: Product Overview
2. Product Overview 2.1. Description GV500VC is based on the OBD II interface GPS vehicle tracking device, compact design and easy to install. GV500VC contains an OBD II connector which complies with J1962 standard, a 10PIN USB connector, an internal CDMA antenna, two internal GPS antenna and three LEDs. -
Page 9: Interface Definition
GV500 User Manual 2.3. Interface Definition The GV500VC has an OBD II connector. It contains power supply and interfaces of CAN BUS, K-line, L-line, J1850 BUS, GMLAN Single Wire CAN (GMW3089) and Ford Medium Speed CAN (MS CAN). The sequence and definition of the OBD II connector are shown in following figure: Figure 2. -
Page 10: Getting Started
GV500VC User Manual 3. Getting Started 3.1. Opening the Case Insert the triangular-pry-opener into the gap of the case as shown below, push the opener up until the case unsnapped. TRACGV500VCUM001 - 9 -... -
Page 11: Figure 3. Opening The Case
GV500VC User Manual Figure 3. Opening the Case TRACGV500VCUM001 - 10 -... -
Page 12: Closing The Case
GV500VC User Manual 3.2. Closing the Case The battery is glued to shield cover, so before closing the case you should let the battery connector plugged in. The step of closing case is shown as following: Figure 4. Closing the Case... -
Page 13: Installing The Internal Backup Battery
GV500VC User Manual 3.3. Installing the Internal Backup Battery Figure 5. Backup Battery Installation There is an internal backup Li-ion battery. TRACGV500VCUM001 - 12 -... -
Page 14: Device Status Led
LED status Device is searching CDMA2000 1x network Fast flashing (note1) (Note3) Device has registered to CDMA2000 1x network. Slow flashing (Note4) Figure 6. GV500VC LED on the Case Table 5: Definition of Device status and LED TRACGV500VCUM001 - 13 -... - Page 15 Fast flashing GPS chip has gotten GPS info. No external power and internal battery voltage is lower (note 2) than 3.46V. GV500VC is power off. No external power and internal battery voltage is Slow flashing below 3.55V External power in and internal battery is charging...
-
Page 16: Obd Ii-Related Features
4. OBD II-related features 4.1. Communication Protocols GV500VC could monitor the OBD II system via not only all legislated OBD II protocols which defined by SAE but also some non-legislated OBD protocols. The list of protocols is shown as follow:... - Page 17 VIN from OBD II system, because the Vehicle manufacturers are responsible for defining the data return from OBD II system. 2 - Distance Statistics: GV500VC could get the distance in two cases: distance accumulated since MIL is activated and distance accumulated since DTCs were cleared.
- Page 18 GV500VC User Manual —Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver Is connected. —Consult the dealer or an experienced radio/TV technician for help. TRACGV500VCUM001...
