DMP Electronics 263LTE X1 Series Installation Sheet

263LTE X1 SERIES CELL COMMUNICATORS
Installation Sheet
GET STARTED
The X1 cell communicator comes ready out of the box to use with your X1 Series Door Controller. the communicator
can also be ordered to add to an X1 Series Elevator Controller. No activation is required. The rate plan is automatically
determined by SecureCom™.
For additional information about installing and programming an X1 Series Door or Elevator Controller from beginning to
end, see the following documents:
• X1 Door Controller Installation and Programming Guide - LT-2264
• X1-8 Door Controller Installation and Programming Guide - LT-2289
• X1 Elevator Controller Installation and Programming Guide - LT-2463
1

INSTALL OR REPLACE THE CELLULAR COMMUNICATOR

X1 Applications
Install the Cellular Communicator

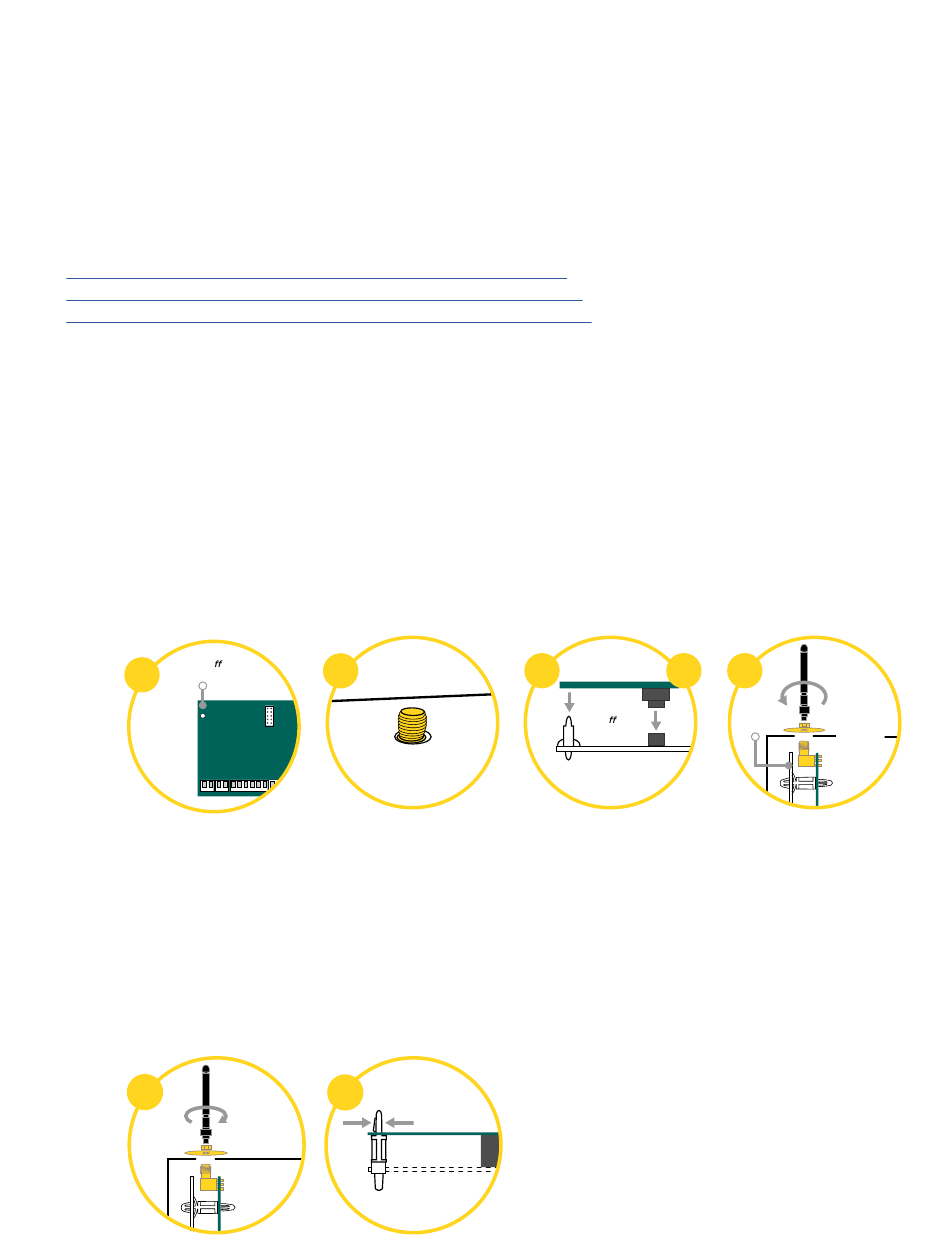

1. Plug the included standoff into the door or elevator controller board.
2. Carefully insert the antenna connector of the new cell module through the top of the enclosure.
3. Plug the cell module onto the standoff.
4. Plug the cell module into the cell header.
5. Screw on the cell module antenna to the antenna connector with the washer on the outside of the
enclosure.
Stando
1
Location

Remove the Cellular Communicator

1. Unscrew the antenna from the cell module and remove the washer on top of the enclosure.
2. Pinch the tab of the standoff and slightly pull up on the cell module to release it from the standoff.
3. Unplug the cell module from the cell header.
4. Carefully remove the cell module by pulling it up and rotating it to guide the antenna connector out of
the enclosure.
5. If installing a new cellular communicator, go to step 2 of Install the Cellular Communicator above.
1
2
Enclosure
Antenna Connector
2
Cell Antenna
Nut and Washer
Enclosure
3
Tab
Door Controller
4 5
Cell Module
Door
Stando
Controller
Header
Door Controller
Cell Antenna
Nut and Washer
Enclosure
Cell Module
