DMP Electronics 265HCAN Installation Manual

265HCAN CELLULAR
COMMUNICATOR
Installation Guide
Figure 1: 265HCAN Cellular
Communicator
DESCRIPTION
The 265HCAN Cellular
Communicator provides
a fully supervised alarm
communication path over the
HSPA+ network.
The 265HCAN is installed on
the XTLplus and powered by
the panel so no additional
enclosure, power supply, or
battery back-up is needed.
Compatibility
All DMP XTLplus Series panels
with Version 171 or higher. See
the last page for compatibility
details.
What is Included
• 265HCAN Cellular
Communicator
• External Antenna
• Canadian 4G Nano SIM
Card
1
INSTALL THE 265HCAN
1. Touch grounded metal to discharge static
before handling the XTLplus.
2. Place the external antenna onto the SMA
connector, then twist the antenna until it is
securely tightened on the 265HCAN.
3. Insert the SIM card into the SIM card holder.
Slide the 265HCAN into the XTLplus
eight-pin CELL MODULE connector, keeping
the 265HCAN parallel to the XTLplus.
4. Align the standoff hole in the 265HCAN with
the standoff on the XTLplus and snap it into
place. See Figure 2.
SMA
Connector
SIM Card
Holder
Standoff
Hole

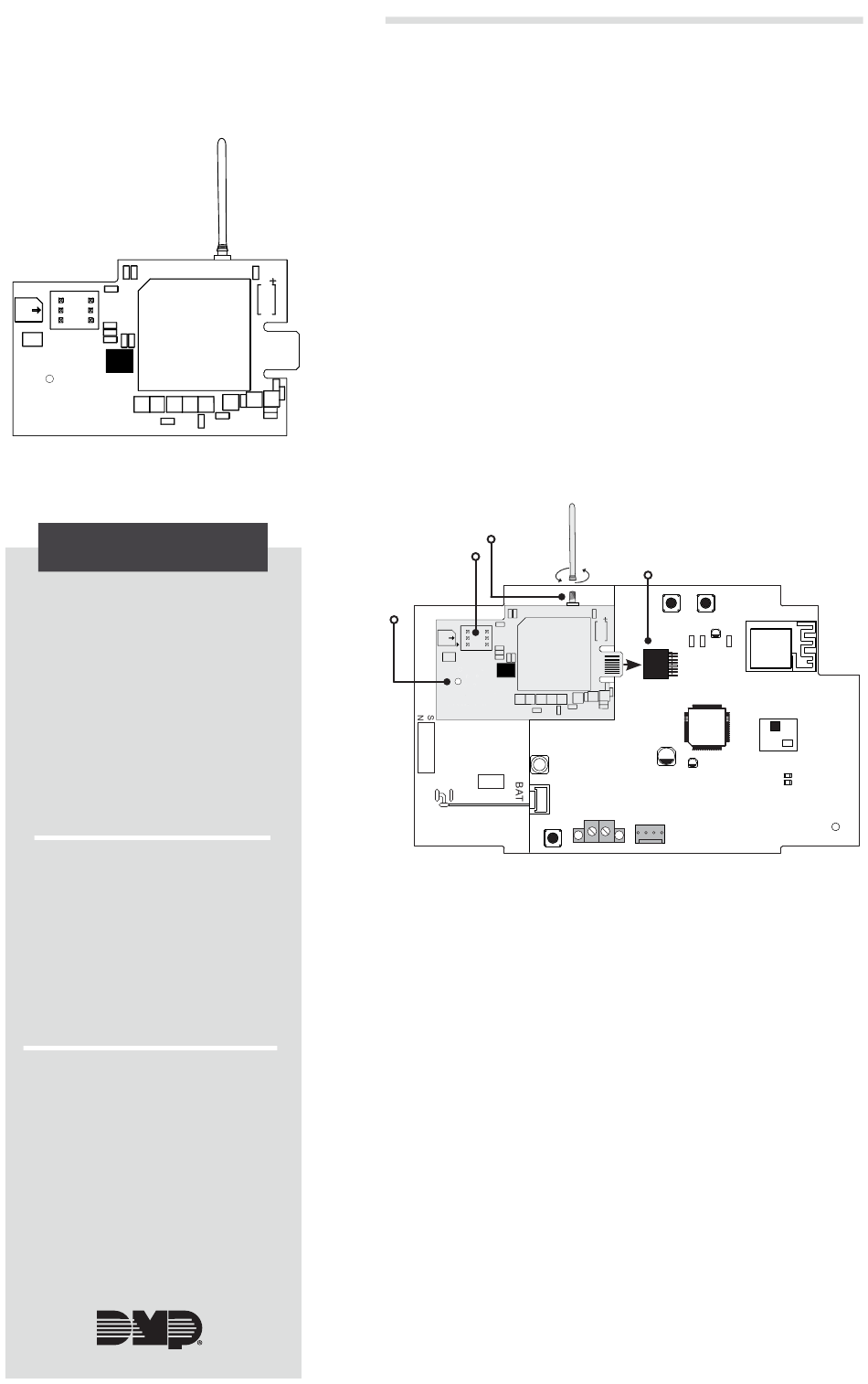

Figure 2: Install the 265HCAN on the XTLplus
2
ACTIVATE THE 265HCAN
Cellular service is required before you can use the
265HCAN for signal transmission. The 265HCAN
comes ready for activation with SecureCom
Wireless, LLC. Cellular activation can by done
through Remote Link
(dealeradmin.securecomwireless.com), the Tech
APP , or by calling DMP Customer Service
TM
(1-866-266-2826).
Antenna
Eight-Pin CELL MODULE
Connector
LOAD RESET
PROG
+ DC -
R B
, the Dealer Admin site
TM
TM
