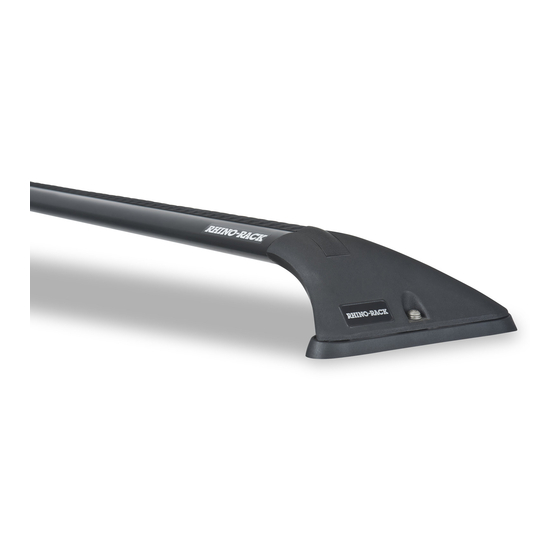

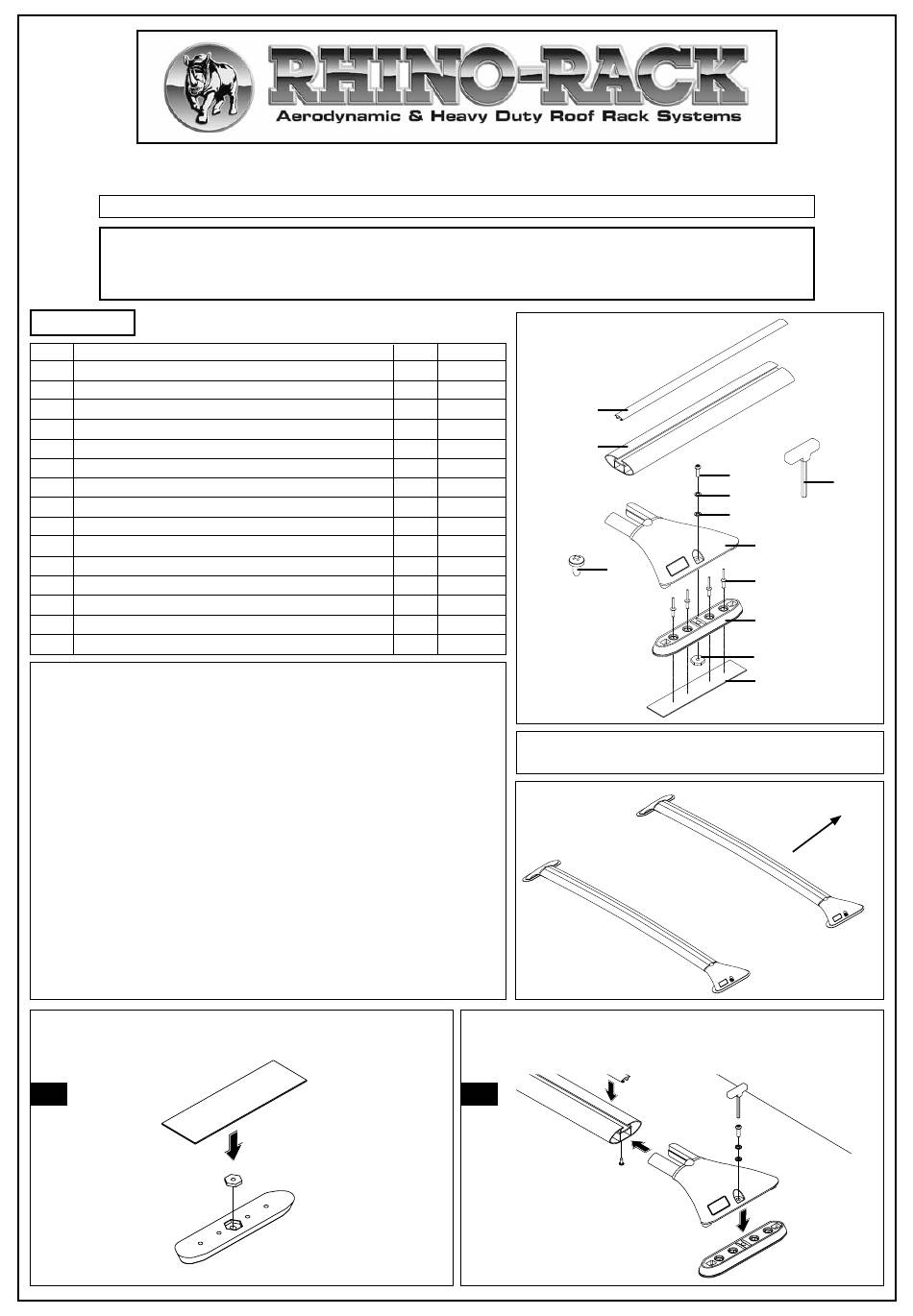

Rhino-Rack RSF Rhino Sportz Manual

Place these instructions in the vehicle's glove box after installation is complete.
Important:

Parts List

Item Component Name
1 Sportz Rubber Buffer
2 Sportz Crossbar
3 10G x 1/2" Self Tapping Screw
4 M6 x 20mm Button Head Security Screw
5 M6 Spring Washer
6 M6 x 12.5mm Flat Washer
7A Sportz Track Leg Left
7B Sportz Track Leg Right
8 Rivet
9A Sportz Fixed Mount Pad Left
9B Sportz Fixed Mount Pad Right
10 M6 x 21.43mm x 4.4mm Brass Hex Nut
11 PVC Foam Gasket
12 5mm Security Allen Key
13 Fitting Instruction

Tools Required:

Measuring tape
Marking pen
5mm Drill bit
Power or cordless drill
Drill stop
Vacuum cleaner
Masking tape
Phillips head screwdriver
Galvanised paint
Selleys Butyl Mastic
Stanley knife
Pneumatic or concertina type rivet gun
Centre punch
Rubber mallet
Security type allen key, provided in kit
Install nuts, apply gasket as shown. With stanley knife,
carefully trim gasket.
1
RSF Rhino Sportz - Fixed Mount
Please read these instructions carefully prior to installation.
Please refer to your fi tting instruction to ensure that the roof racks are installed in the
correct locations.
Check the contents of kit before commencing fi tment and report any discrepancies.
Qty. Part No.
2 -
2 -
4 B045
4 B062
4 W004
4 W003
2 M013
2 M014
16 H008
2 M029
2 M028
4 N009
4 C135
1
H011 & H013
1 RS67

Care Instruction:

Wash vehicle roof prior to installation.
Layout
Locate legs into crossbar, use rubber mallet if required.
Install screw, cross bar rubber and attach base as
shown.
2
1
2
4
5
6
3
12
7A & B
8
9A & B
10
11
FRONT
Page 1 of 3
