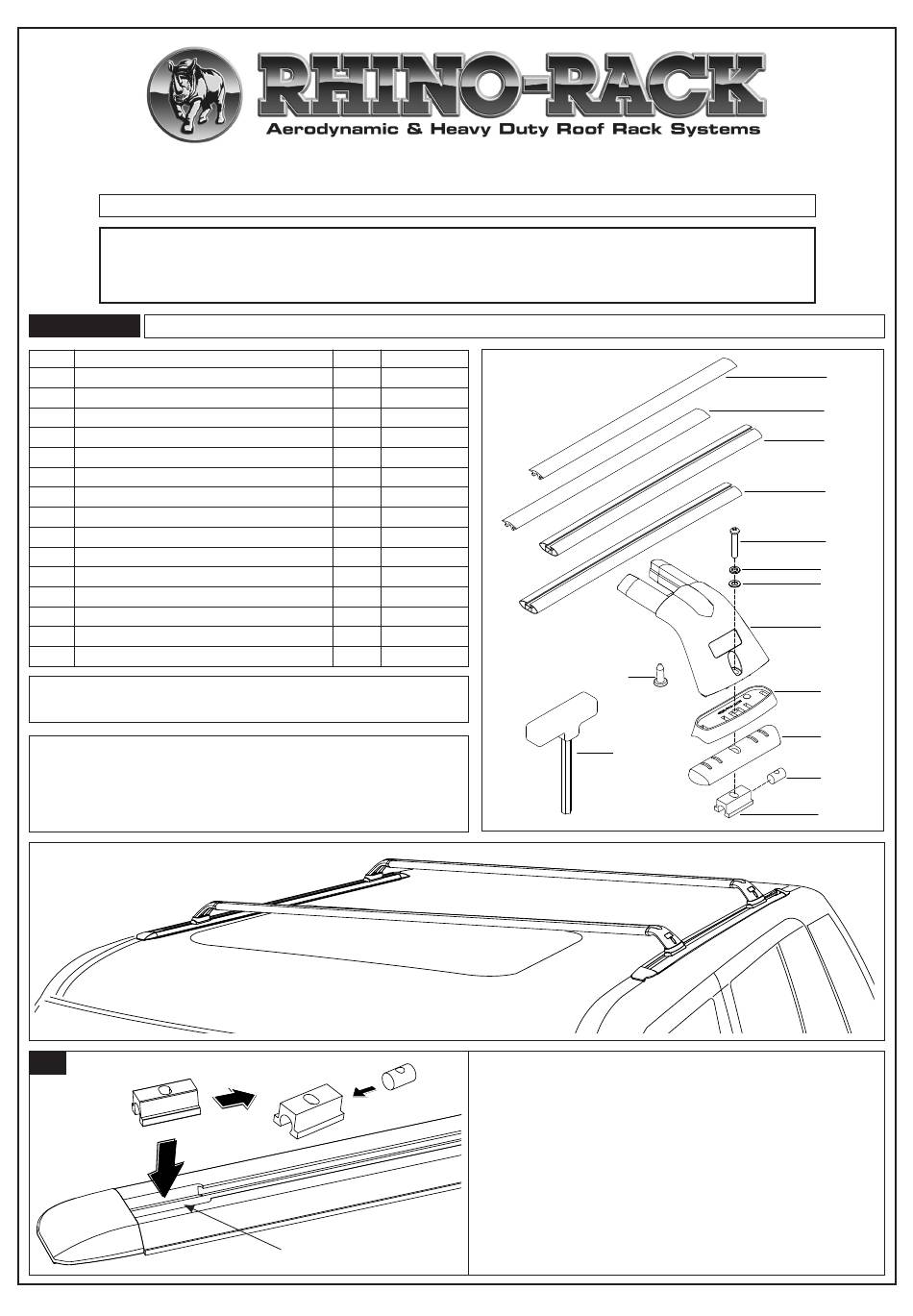

Rhino-Rack RSPT508 Instructions

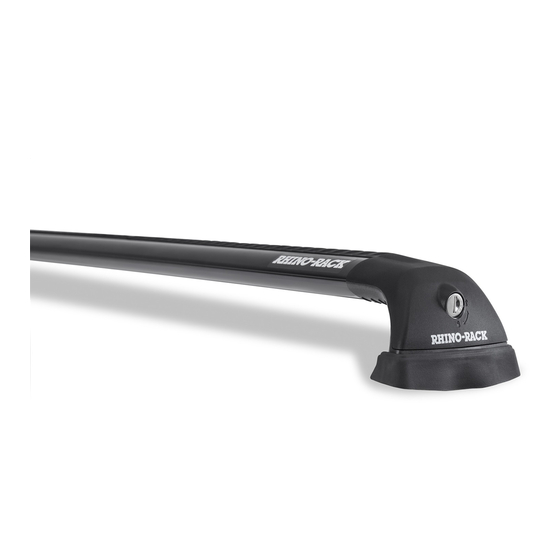

RSPT508 Range Rover Sport 2 Bar Sportz System
Place these instructions in the vehicle's glove box after installation is complete.
Important:

Parts List

Item Component Name
1 FRONT Buffer Strip 1060mm
2 REAR Buffer Strip 1045mm
3 FRONT Cross Bar 1060mm
4 REAR Cross Bar 1045mm
5 M6 x 35mm Security Screw
6 M6 Spring Washer
7 M6 x 12.5mm Flat Washer
8 RSP Sportz Leg
9 RSP Top Pad
10 RSP Bottom Pad
11 M6 x 16 Dowel Nut
12 Dowel Nut Housing
13 10G x 1/2" Pan Head Phillips Screw
14 5mm Security Allen Key
15 Fitting Instruction

Care Instruction:

Clean vehicle roof and gutter prior to fitting Rhino Tracks.
Tools & Materials Required.
5mm Security Allen key, provided in kit.
Phillips Head screw driver.
Measuring tape.

Layout

1
Please read these instructions carefully prior to installation.
Please refer to your fitting instruction to ensure that the roof racks are installed in the
correct locations.
Check the contents of kit before commencing fitment and report any discrepancies
Maximum carrying capacity: 75kg
Qty
1
1
1
1
4
4
4
4
4
4
4
4
4
1 SecKey-S
1
Slot at Rear of track
Part No.
R011
R011
A155
A155
B092
W004
W003
M094
M173
M172
N027
A341
B045
RS-294
Slide the Dowel Nut into the Dowel Nut Housing with
the thread facing up through the hole. Place the Dowel
Nut Housing into the slot of the track and slide along to
desired position.
13
14
1
2
3
4
5
6
7
8
9
10
11
12
Page 1 of 2
