Rhino-Rack RSP03 Rhino Sportz Installation Manual

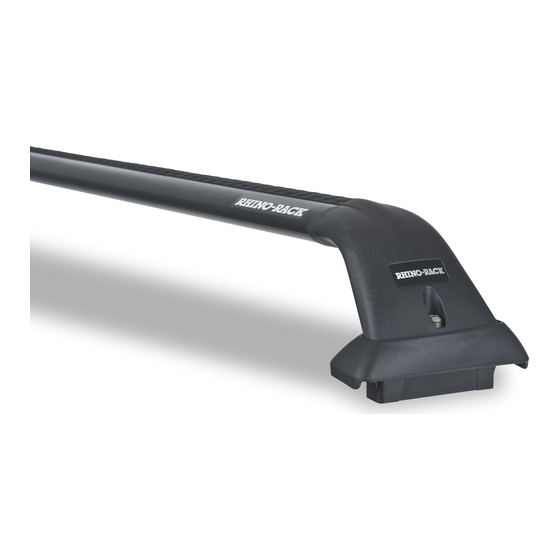

RSP03 Rhino Sportz - Toyota Prado 2003
Place these instructions in the vehicle's glove box after installation is complete.
Important:

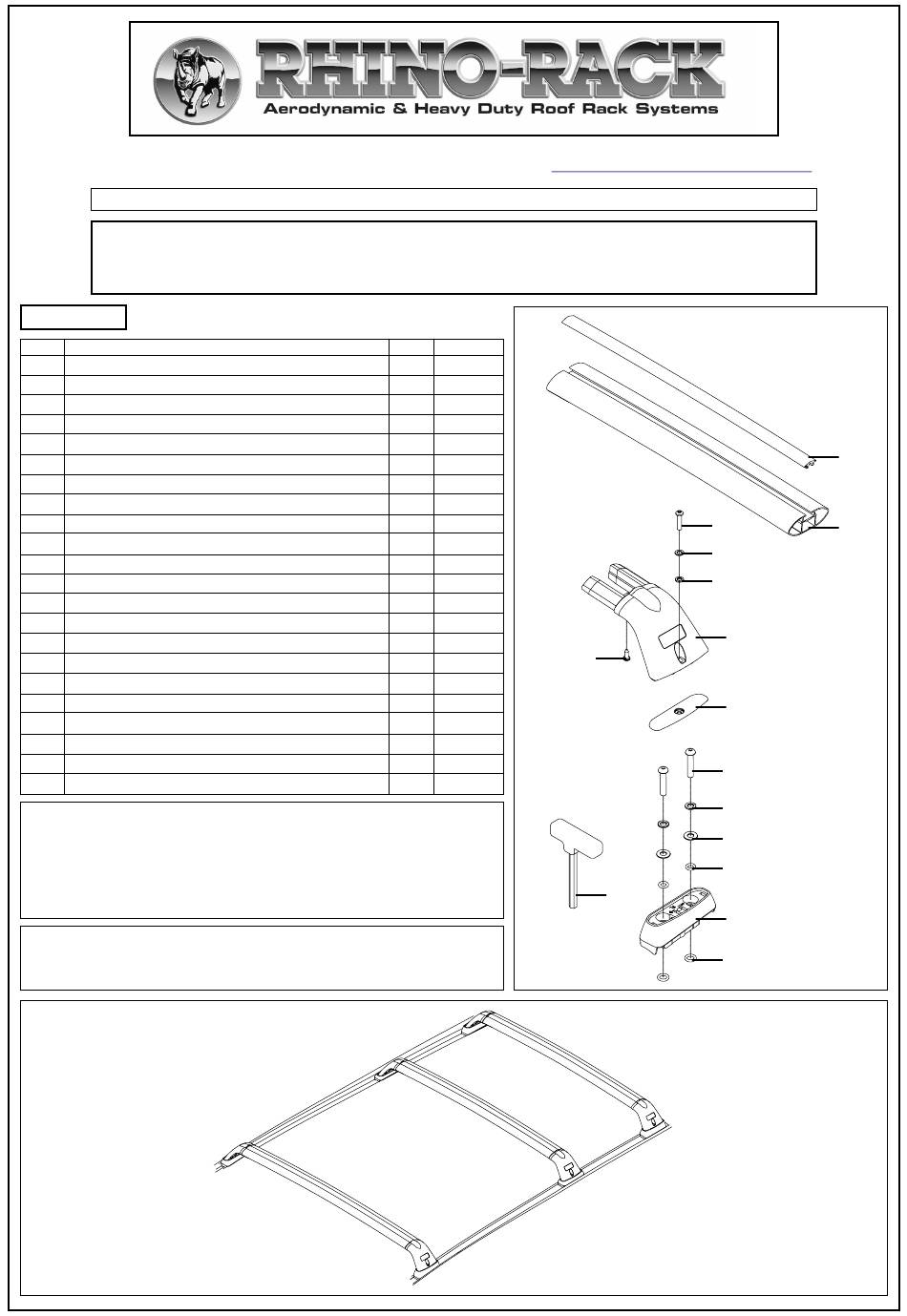

Parts List

Item Component Name
1 Sportz Rubber Buffer
2 Sportz Bar
3 M6 x 32mm Button Head Security Screw
4 M6 Spring Washer
5 M6 x 12.5mm Flat Washer
6 Sportz Narrow Base Short Leg
7 10G x 1/2" Pan Head Phillips Screw
8 Cover Plate Pad - RSP/RCP
9A M8 x 50mm Button Head Cap Screw
9B M8 x 40mm Button Head Cap Screw
10 M8 Spring Washer
11 M8 x 17mm Flat Washer
12 7mm x 4mm O-Ring
13A Toyota Prado Front Left Pad
13B Toyota Prado Front Right Pad
13C Toyota Prado Middle Left Pad
13D Toyota Prado Middle Right Pad
13E Toyota Prado Rear Left Pad
13F Toyota Prado Rear Right Pad
14 10mm x 3mm O-Ring
15 5mm Security Allen Key & Handle
16 Fitting instruction

Tools Required

Security type allen key, provided in kit
Phillips head screw driver
1/2" Spanner / Socket
Small Flat Blade Screwdriver

Care Instruction

Clean vehicle roof prior to fi tting the Rhino-Rack roof racks

Layout

Please read these instructions carefully prior to installation.
Please refer to your fi tting instruction to ensure that the roof racks are installed in the
correct locations.
Check the contents of kit before commencing fi tment and report any discrepancies.
Three Crossbar System
Qty. Part No.
3 R011
3 A155
6 B064
6 W004
6 W003
6 M094
6 B045
6 M126
8 B126
4 B127
12 W019
12 W020
12 C299
1 M111
1 M112
1 M113
1 M114
1 M115
1 M116
12 C088
3
H011&H013
1 RS52
3
4
5
6
7
8
9A&B
10
11
12
15
13A,B,C,D,E&F
14
1
2
