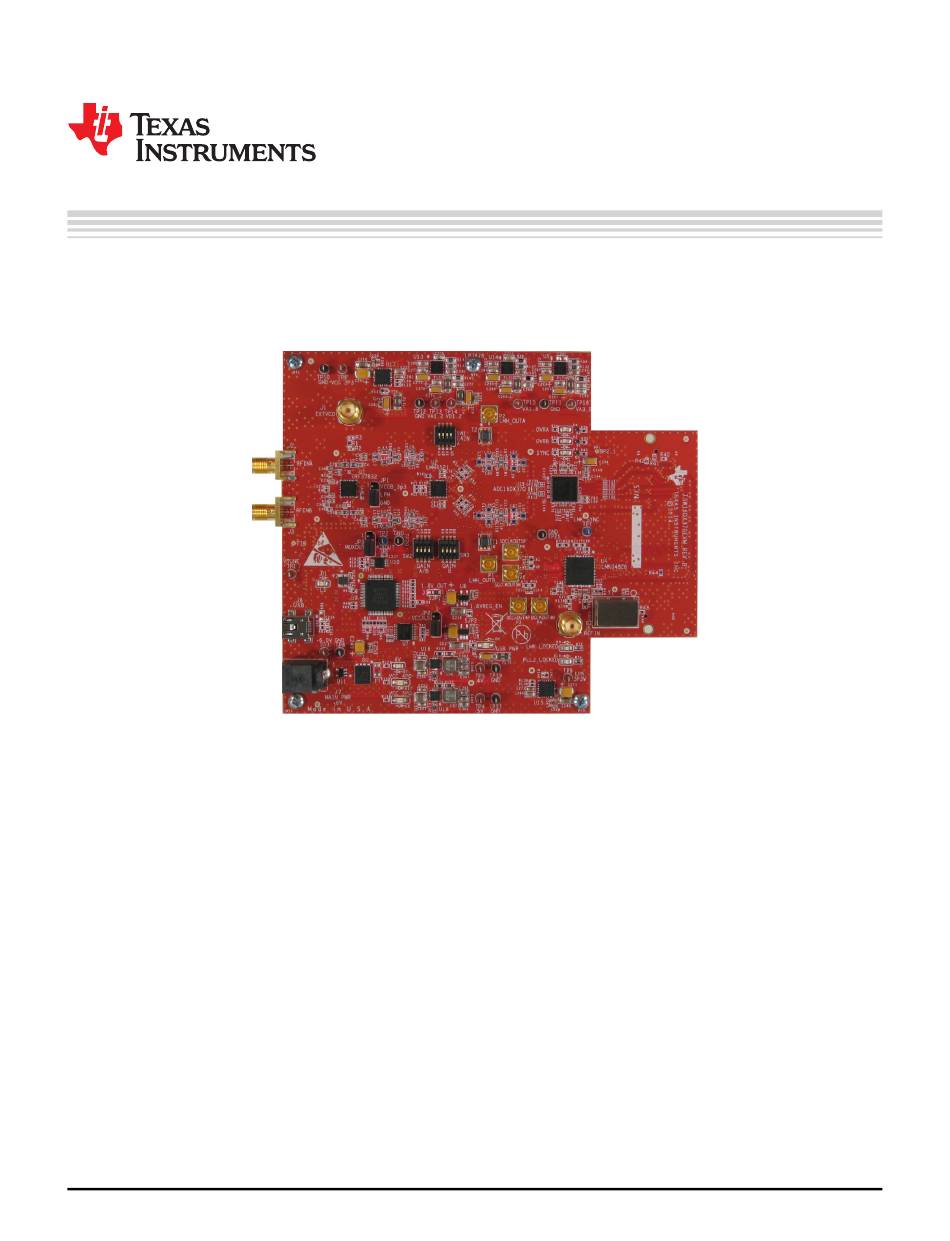

This user's guide describes the characteristics, operation, and use of TI's TSW16DX370EVM Rev B. The
equipment required, setup procedures, device configuration, and an evaluation and troubleshooting
section are also included.
Microsoft, Windows are registered trademarks of Microsoft Corporation.
SLAU617B – February 2015 – Revised August 2016
Submit Documentation Feedback
Copyright © 2015–2016, Texas Instruments Incorporated
SLAU617B – February 2015 – Revised August 2016
TSW16DX370EVM Rev. B
TSW16DX370EVM Rev. B
User's Guide
1
Advertisement
Related Manuals for Texas Instruments TSW16DX370EVM
Summary of Contents for Texas Instruments TSW16DX370EVM
- Page 1 SLAU617B – February 2015 – Revised August 2016 TSW16DX370EVM Rev. B This user's guide describes the characteristics, operation, and use of TI's TSW16DX370EVM Rev B. The equipment required, setup procedures, device configuration, and an evaluation and troubleshooting section are also included.
- Page 2 Troubleshooting Procedures ..................... EVM Jumper Settings ................Meaning of LEDs on the TSW14J56EVM ..............Required State of Switches on the TSW14J56EVM TSW16DX370EVM Rev. B SLAU617B – February 2015 – Revised August 2016 Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...

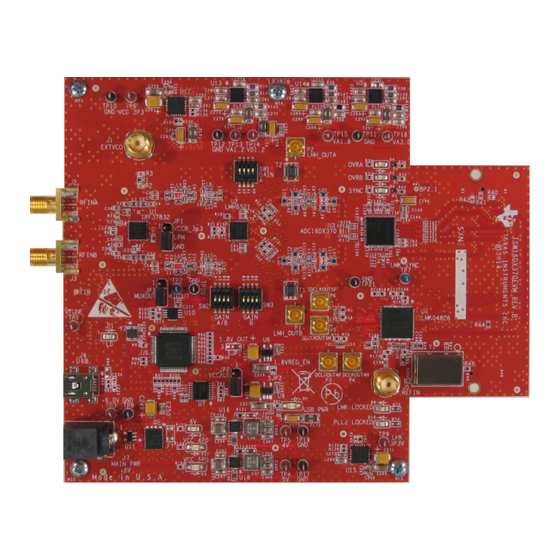

- Page 3 8. FTD245 Driver Installation Manual http://www.ftdichip.com/Support/Documents/InstallGuides.htm Introduction The TSW16DX370EVM is a reference design board used to evaluate the receiver IF subsystem solution with over 100-MHz usable bandwidth including the following products from Texas Instruments: • ADC16DX370 dual channel 16-bit analog-to-digital converter (ADC) sampling at 368.64 MSPS •...
- Page 4 • High Speed Data Converter Pro software • PC running Microsoft Windows 8, Windows 7, or Windows XP ® ® TSW16DX370EVM Rev. B SLAU617B – February 2015 – Revised August 2016 Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...
- Page 5 3-dB resistive attenuator, SMA, 50 Ω • Signal path cables, SMA or BNC Setup Procedure Figure 2. EVM Test Setup SLAU617B – February 2015 – Revised August 2016 TSW16DX370EVM Rev. B Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...
- Page 6 4. Turn the power switch of the TSW14J56EVM to the ON position. 5. Connect the power cable for the TSW16DX370EVM to the bench power supply and test the voltage and polarity at the cable output. The barrel connector core must be +6V relative to the outside shield.
- Page 7 1. Open the HSDP software 2. Press OK to confirm the serial number of the TSW14J56EVM device 3. Select the ‘TSW16DX370EVM’ device from the ADC select drop-down in the top left corner and Press YES to update the firmware. •...
- Page 8 The following settings are made in the HSDC Pro window (Figure 1. Verify that ‘TSW16DX370EVM’ is the selected device. 2. Verify the ‘ADC sampling rate (Fs)’ as ‘368.64M’. This value must be equal to the operating sampling rate of the device.
- Page 9 LEDs Table 2. Default State of LEDs on the TSW14J56EVM During Normal Operation Status Blinking Blinking FPGA_DONE SLAU617B – February 2015 – Revised August 2016 TSW16DX370EVM Rev. B Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...
- Page 10 The EVM has four (4) configurable devices, namely the ADC, LMH, LMX, and LMK. The Register Map for each device is provided in the respective device datasheet. TSW16DX370EVM Rev. B SLAU617B – February 2015 – Revised August 2016 Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...
- Page 11 Enables both LMH6521 channels and sets the attenuation to 24 dB Executes the following series of configuration scripts: LMK04828_configDemo.cfg ADC16DX370_configDemo.cfg LMX2581_configDemo.cfg LMH6521_configDemo.cfg SLAU617B – February 2015 – Revised August 2016 TSW16DX370EVM Rev. B Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...
- Page 12 Device Configuration www.ti.com Figure 5. Configuration GUI ADC CORE Tab Figure 6. Configuration GUI JESD240B Tab TSW16DX370EVM Rev. B SLAU617B – February 2015 – Revised August 2016 Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...
- Page 13 Device Configuration www.ti.com Figure 7. LMH6521 Tab Figure 8. LMK04828 MACRO CONFIG Tab SLAU617B – February 2015 – Revised August 2016 TSW16DX370EVM Rev. B Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...
- Page 14 Used for LMK04828 development ● Executes ‘LMK04828_config3.cfg’ script. ● By default, this script is the same script as LMK04828_config2.cfg ● Intended for editing TSW16DX370EVM Rev. B SLAU617B – February 2015 – Revised August 2016 Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...
- Page 15 Device Configuration www.ti.com Figure 9. LMK04828 PLL1 Config Tab Figure 10. LMK04828 PLL2 Config Tab SLAU617B – February 2015 – Revised August 2016 TSW16DX370EVM Rev. B Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...
- Page 16 Device Configuration www.ti.com Figure 11. LMK04828 SYSREF and SYNC Tab Figure 12. LMK04828 Clock Outputs Tab TSW16DX370EVM Rev. B SLAU617B – February 2015 – Revised August 2016 Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...
- Page 17 ● Requires OSCin reference frequency = 368.64 MHz which occurs for the default LMK04828 configuration ● CUSTOM script intended for editing and development SLAU617B – February 2015 – Revised August 2016 TSW16DX370EVM Rev. B Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...
- Page 18 Device Configuration www.ti.com Figure 14. LMX2581 PLL Config Tab TSW16DX370EVM Rev. B SLAU617B – February 2015 – Revised August 2016 Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...
- Page 19 Perform a generic read or write command to the device shown in the ‘Block’ drop-down box using the Cluster with Address and Write Data information Read/Write Register Buttons Figure 15. Low-Level Register Control Tab SLAU617B – February 2015 – Revised August 2016 TSW16DX370EVM Rev. B Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...
- Page 20 Verify that bandpass filters are used in the clock and input signal paths and that low-noise signal sources are used. TSW16DX370EVM Rev. B SLAU617B – February 2015 – Revised August 2016 Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...
- Page 21 Appendix A SLAU617B – February 2015 – Revised August 2016 EVM Jumper Settings The TSW16DX370EVM has three different jumpers with the following functions. Table 4. EVM Jumper Settings Jumper Function Default Setting TRF37B32 Low Power Mode Select Short 1-2: Low Power Mode enabled...
- Page 22 5 MHz are supported. Note that continuously running an SYSREF signal to the ADC during normal operating will degrade the spurious performance of the ADC. SLAU617B – February 2015 – Revised August 2016 Submit Documentation Feedback Copyright © 2015–2016, Texas Instruments Incorporated...
- Page 23 A.5.1 Signal Path Considerations The signal path of the TSW16DX370EVM includes two separate LC bandpass filters (BPF). These filters, in conjunction with the LO frequency and the ADC sampling rate set the frequency plan of this design which is intended for a ~100-MHz channel bandwidth and 276.48-MHz intermediate frequency (IF).
- Page 24 STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, or documentation (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein. Acceptance of the EVM is expressly subject to the following terms and conditions.
- Page 25 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 26 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿６丁目２４番１号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧くださ い。http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page SPACER EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
- Page 27 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2015, Texas Instruments Incorporated...
- Page 28 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
- Page 29 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments TSW16DX370EVM...
