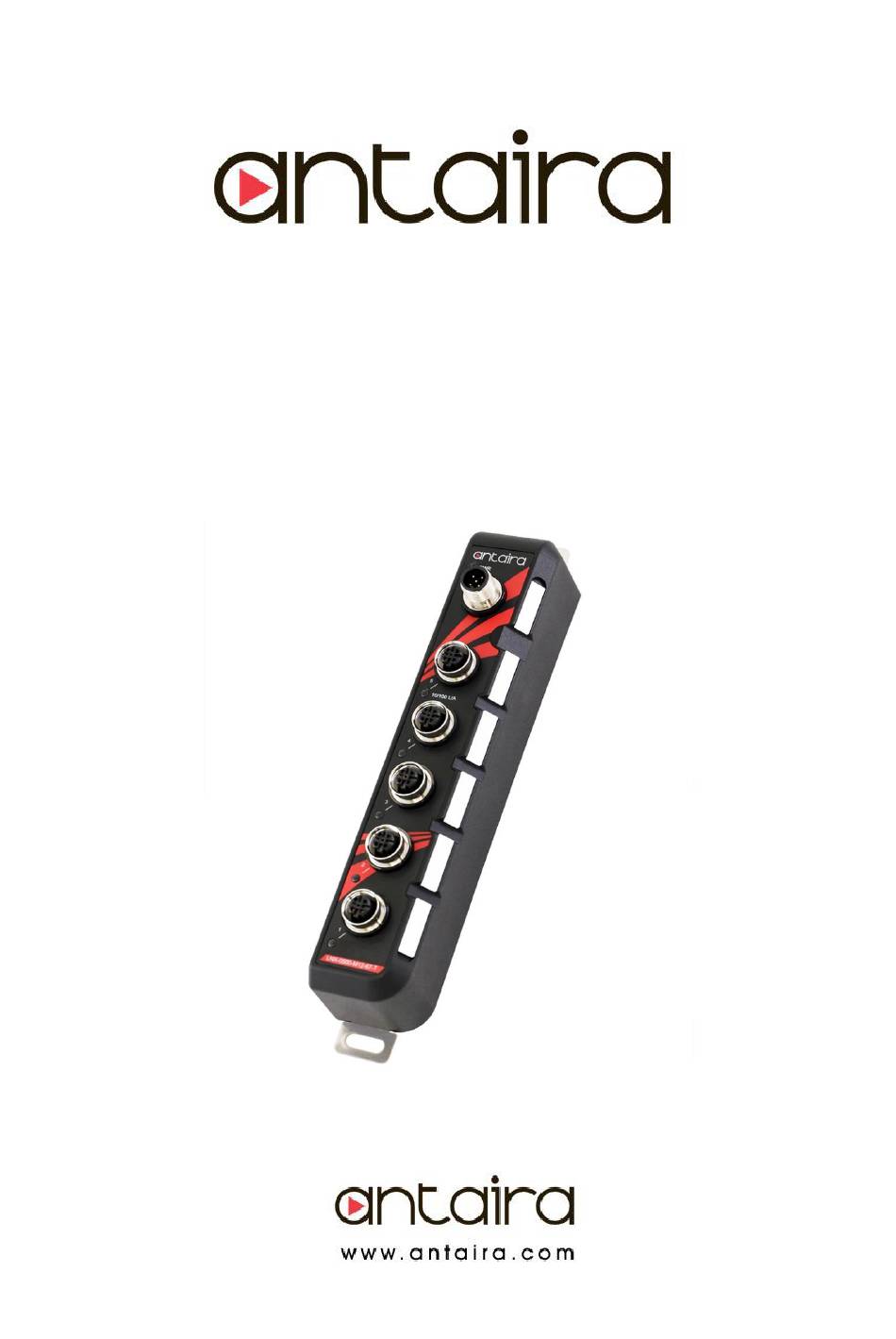

- Page 1 Antaira Technologies - Industrial Ethernet Switches LNX-0500-M12-67 Series User Manual V1.0 LNX-0500-M12-67 Series 5-Port M12 Industrial IP67 Waterproof Ethernet Switch, with 5*10/100Tx with M12-connector Version 1.0 (September 2018) User Manual...
- Page 2 LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Industrial Ethernet Switches User Manual This manual supports the following models: • LNX-0500-M12-67 • LNX-0500-M12-67-T Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNX-0500-M12-67 Series User Manual V1.0 Table of Contents 1. Overview ..............1 1.1 Key Features ............1 1.2 Package Contents ..........1 1.3 Safety Precaution ..........1 2. Hardware Description ..........3 2.1 Physical Dimensions .......... 3 2.2 Front Panel ............ -
Page 5: Overview

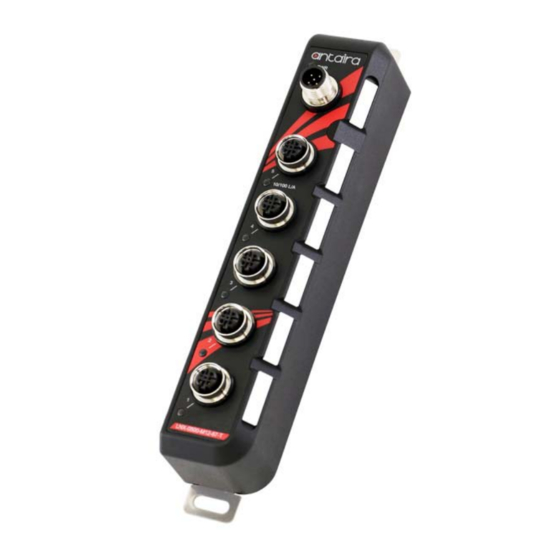

LNX-0500-M12-67 Series User Manual V1.0 1. Overview Antaira Technologies’ LNX-0500-M12-67 series is a 5-port 10/100Tx M12 IP67 industrial switch that meets the high-reliability requirements demanded by industrial applications. The LNX-0500-M12-67 series features a wide operating temperature of -10° to 70°C in the standard model and -40° to 75°C in the extended temperature model which allows this device to be used in various industrial environments. - Page 6 Antaira Technologies - Industrial Ethernet Switches LNX-0500-M12-67 Series User Manual V1.0 Warning Labels The caution label means that you should check the certain information in the user manual when working with the device. (Shown in Figure 1) Figure 1: Caution Label...
-
Page 7: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LNX-0500-M12-67 Series User Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNX-0500-M12-67 series: (W x H x D) is 37.13mm x 215.73mm x 32.8mm Figure 2.1... -
Page 8: Front Panel
Antaira Technologies - Industrial Ethernet Switches LNX-0500-M12-67 Series User Manual V1.0 2.2 Front Panel The front panel of the LNX-0500-M12-67 series can be seen below (Figure 2.2). Power LED M12 5-Pin A-Coded for Power Connection M12 4-Pin D-Coded for LED Link / Activity Status – 10/100Tx... -
Page 9: Grounding
Antaira Technologies - Industrial Ethernet Switches LNX-0500-M12-67 Series User Manual V1.0 2.4 Grounding Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. -
Page 10: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LNX-0500-M12-67 Series User Manual V1.0 Table 2.2 NOTE: “+” and “-” signs represent the polarity of the wires that make up each wire pair. Caution: 1. Please use with copper conductors only. 2. Use conductors with insulation rated for at least 60/75°C. - Page 11 Antaira Technologies - Industrial Ethernet Switches LNX-0500-M12-67 Series User Manual V1.0 Insert the positive and negative power wires into the power connector on the industrial Ethernet switch with pin4, pin1 (V1+, V1-) for power 1, and pin3, pin2 (V2+, V2-) for power 2.
-
Page 12: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNX-0500-M12-67 Series User Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting Follow the steps below to learn how to install the DIN-Rail on the industrial Ethernet switch and how to hang the switch. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch as shown in Figure 3.1. -
Page 13: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNX-0500-M12-67 Series User Manual V1.0 Figure 3.2 Install the Ethernet Switch on the DIN-Rail 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch to a wall using the screw holes as shown below in Figure 3.3. - Page 14 Antaira Technologies - Industrial Ethernet Switches LNX-0500-M12-67 Series User Manual V1.0 Figure 3.3 Wall Mounting Bracket Dimensions Caution: “Wall” means industrial control panel wall.
-
Page 15: Hardware Installation
LNX-0500-M12-67 Series User Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install LNX-0500-M12-67 series. Caution: This device is intended for indoor use and at altitudes up to 2000 meters. In addition, the environmental condition should be maximum relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity... -
Page 16: Maintenance And Service
Antaira Technologies - Industrial Ethernet Switches LNX-0500-M12-67 Series User Manual V1.0 4.2 Maintenance and Service • If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting. The initial installation should be done in a way that makes this as convenient as possible. -
Page 17: Network Application
Antaira Technologies - Industrial Ethernet Switches LNX-0500-M12-67 Series User Manual V1.0 5. Network Application This segment provides an example of an industrial M12 Ethernet switch application (Figure 5.1). Figure 5.1 Industrial M12 Ethernet Switch Application Example... -
Page 18: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses, or surges at the power outlet. Please contact Antaira for technical support service if the problem still cannot be resolved. •... -
Page 19: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNX-0500-M12-67 Series User Manual V1.0 7. Technical Specifications Table 7.1 has the technical specifications for Antaira Technologies’ LNX-0500-M12-67 series: IEEE 802.3 10Base-T Ethernet Standards IEEE 802.3u 100Base-TX Fast Ethernet Protocol CSMA/CD Technology Processing Type... - Page 20 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
