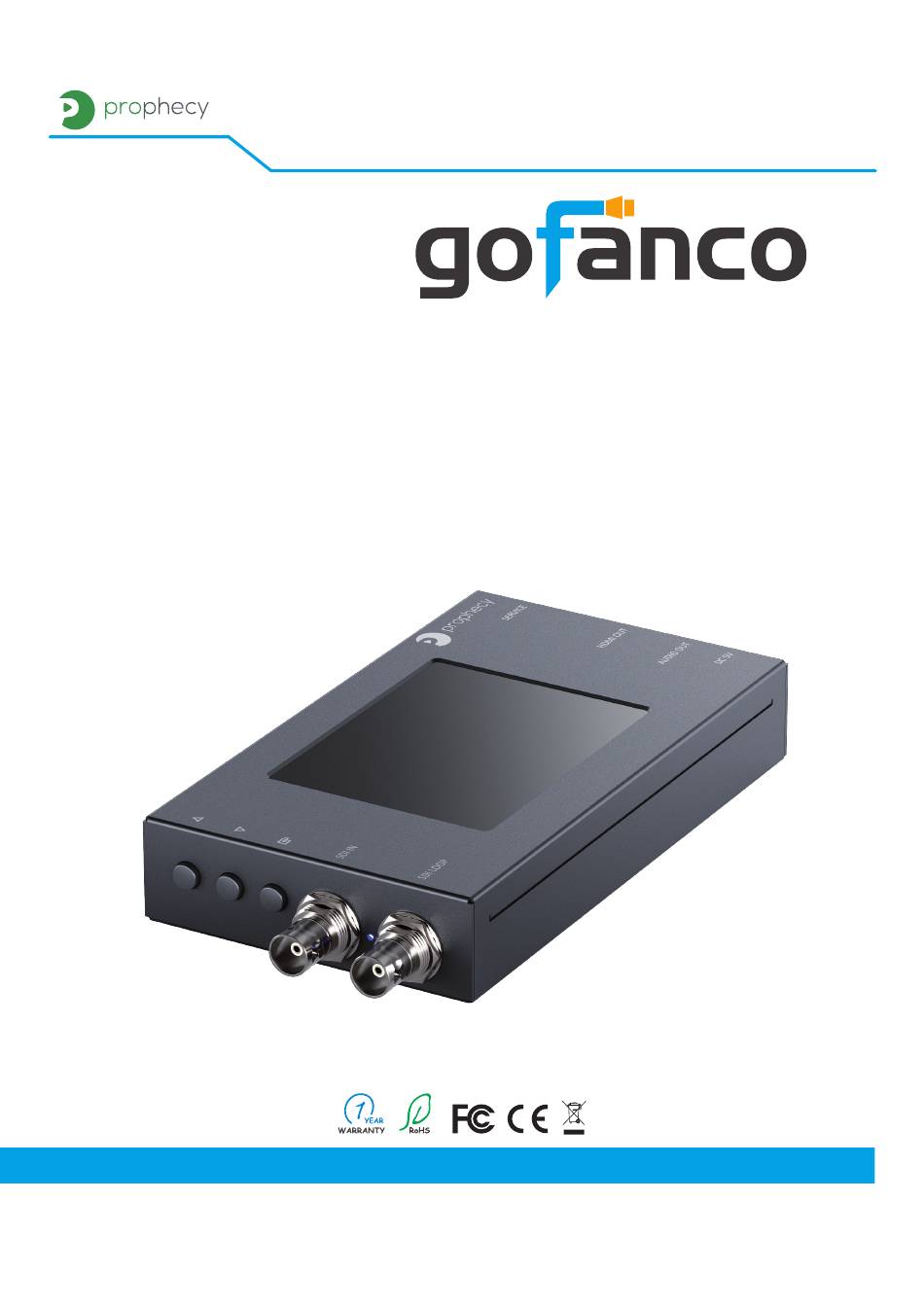

- Page 1 ® PRO-ScalerSDIHD 3G-SDI to HDMI converter with scaler and monitor User‘s Guide Made in Taiwan...
- Page 2 ® PRO-ScalerSDIHD Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Table Of Contents
However, like all electronic equipments, the PRO-ScalerSDIHD should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 4: Introduction
SDI monitor with multi-format and multi-pattern support. Not only can it receive SDI signals, the PRO-ScalerSDIHD can also bypass SDI input to SDI output. It is equipped three buttons and a 3.5” panel to ease the control. With a 3.5” panel, the output signal can be monitored and controlled through OSD, such as resolution and image adjustments. -
Page 5: Specification
® PRO-ScalerSDIHD 5. Specifications Item Description Technical SDI to HDMI Converter with 3.5” LCD monitor Role of usage SDI standards SD-SDI, HD-SDI & 3G-SDI Input Video bandwidth 2.970 Gbit/s, 2.970/1.001 Gbit/s [3G] 1080p @50/59.94/60Hz (4:2:2) Input Video support [HD] 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @24/30Hz [SD] NTSC @59.94Hz, PAL @50Hz... -
Page 6: Panel Description
® PRO-ScalerSDIHD 6. Panel Description 1. Push Button: OSD up or Volume up (for stereo out) 2. Push Button: OSD down or Volume down (for stereo out) 3. Push Button: OSD Menu or Selection 4. SDI In: Connect to a 3G/HD/SD-SDI source 5. -
Page 7: Osd Menu
® PRO-ScalerSDIHD 8. OSD Menu Bypass, 600x480, 800x600, 1024x768, 1152x864, 1280x768, 1280x1024, Output Format 1360x768, 1440x900, 1600x1200, 1680x1050, SD (480p, 576p, 480i, 576i), HD (720p, 1080i, 1080p) 1.Output Setup Disable, Diagonal, W-VRamp, W-HRamp, H-Ramp, Window, Gray, Color, Hatch, Cross, Test Pattern... -
Page 8: Resolution Specifications For Pro-Scalersdihd
® PRO-ScalerSDIHD 9. Resolution Specifications for PRO-ScalerSDIHD Input Output 480i [SD] 480i @ 60 576i 576i @ 50 720p 60/59.9/50 480p @ 60 1080i 60/59.9/50 576p @ 50 1080p 60/59.9/50/30/29.9/ [HD] 25/24/23.9 720p @ 50/59/60 1080i @ 50/59/60 1080p @ 23/24/25/29/30/50/59/60 [Other] 640x480 @ 60/72/75... -
Page 9: Firmware Update Steps
10. Firmware Update Steps 1. Remove the power adapter from the PRO-ScalerSDIHD. 2. Connect the PRO-ScalerSDIHD to a PC/laptop via micro USB cable. 3. Open update tool (NUC Firmware Updated) and load the firmware file. 4. Click connect, then plug the power adapter. -
Page 10: Limited Warranty
® PRO-ScalerSDIHD 11. Limited Warranty The SELLER warrants the PRO-ScalerSDIHD 3G-SDI to HDMI converter with scaler and mo- nitor to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good... - Page 11 ® PRO-ScalerSDIHD Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 ® Thank you for choosing gofanco www.gofanco.com Aug, 2020 Ver. A Copyright © by gofanco, LLC. All rights reserved.
