APPENDIX D: AUDIO CONNECTORS

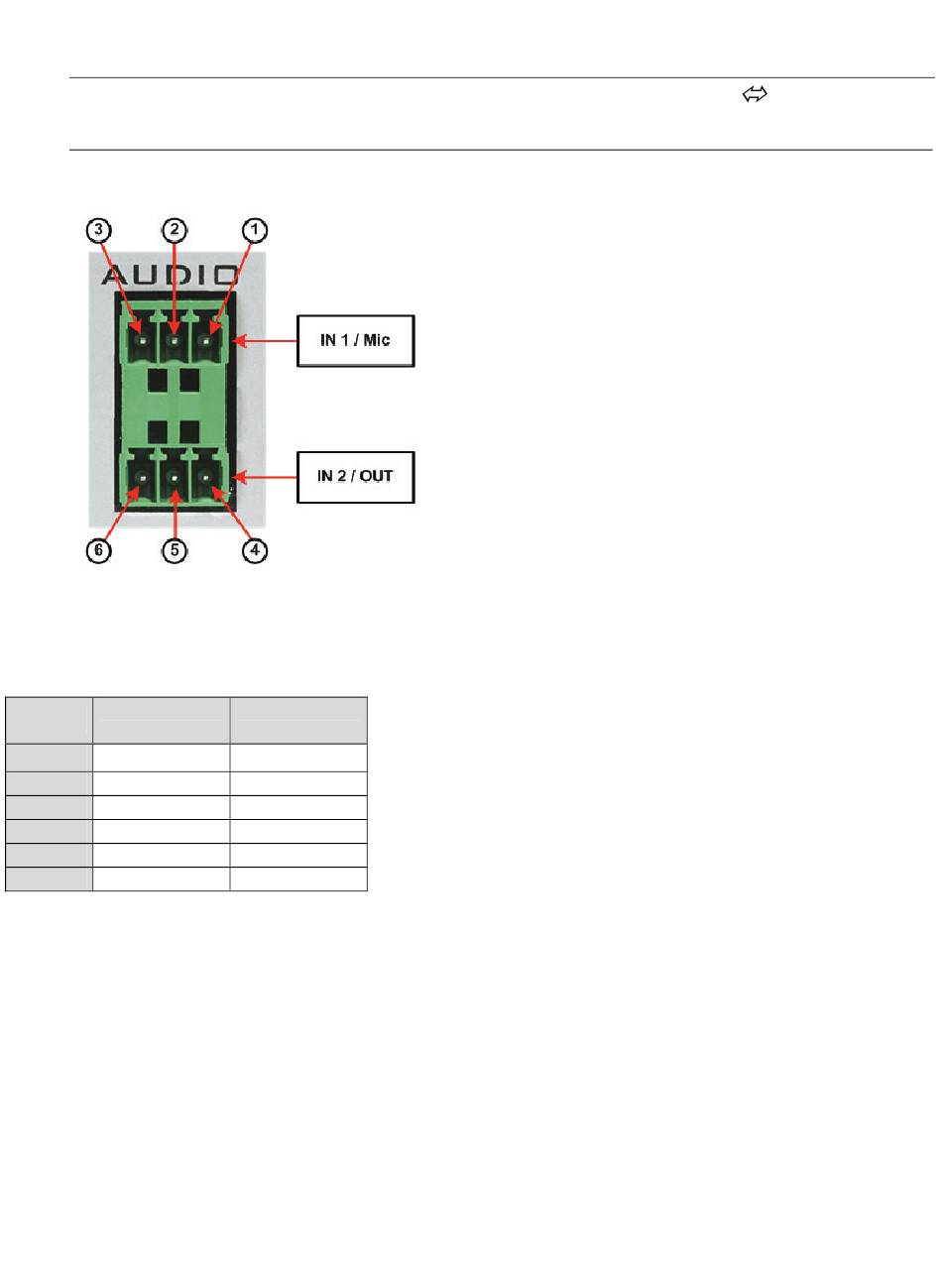

The audio inputs/outputs of PYKO-in come on a terminal block connector with two lines of three pins each
three points (= two counterparts).

Pinout

Stream
Pin
server
GND
1
IN 1- / Mic
2
IN 1+ / Mic
3
GND
4
IN 2-
5
IN 2+
6
Full-duplex
GND
IN- / Mic
IN+ / Mic
GND
OUT-
OUT+
Professional IP
PYKO-in
Audio Endpoint
