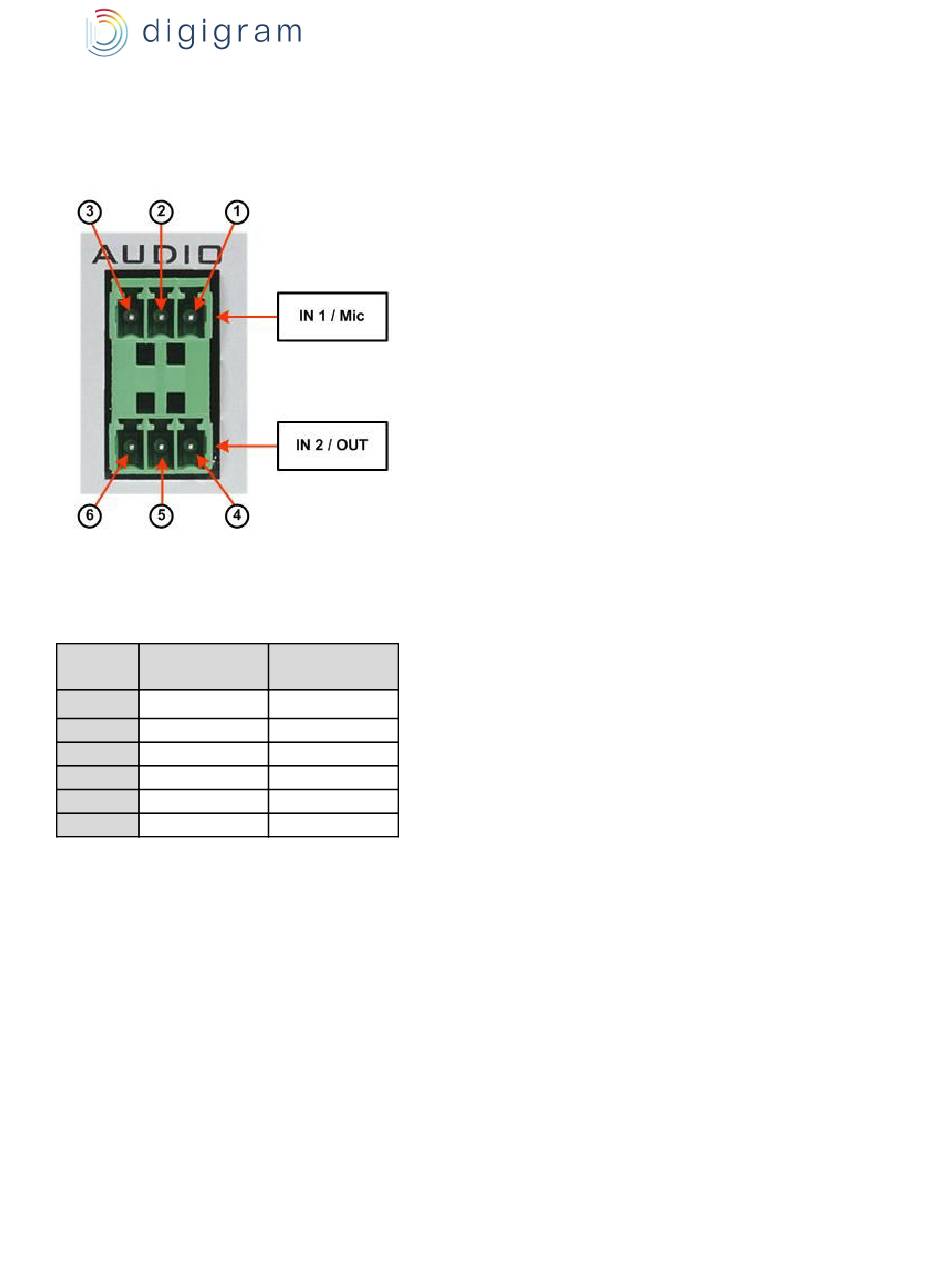

11. APPENDIX D: AUDIO CONNECTORS
The audio inputs/outputs of PYKO-in come on a terminal block connector with two lines of three pins
each three points (= two counterparts).
Pinout
Stream
Pin
server
1
GND
2
IN 1- / Mic
3
IN 1+ / Mic
4
GND
5
IN 2-
6
IN 2+
PYKO-in: Professional IP audio endpoint
Full-duplex
GND
IN- / Mic
IN+ / Mic
GND
OUT-
OUT+
