APPENDIX F: SERIAL PORT (RS232 ON DB9)

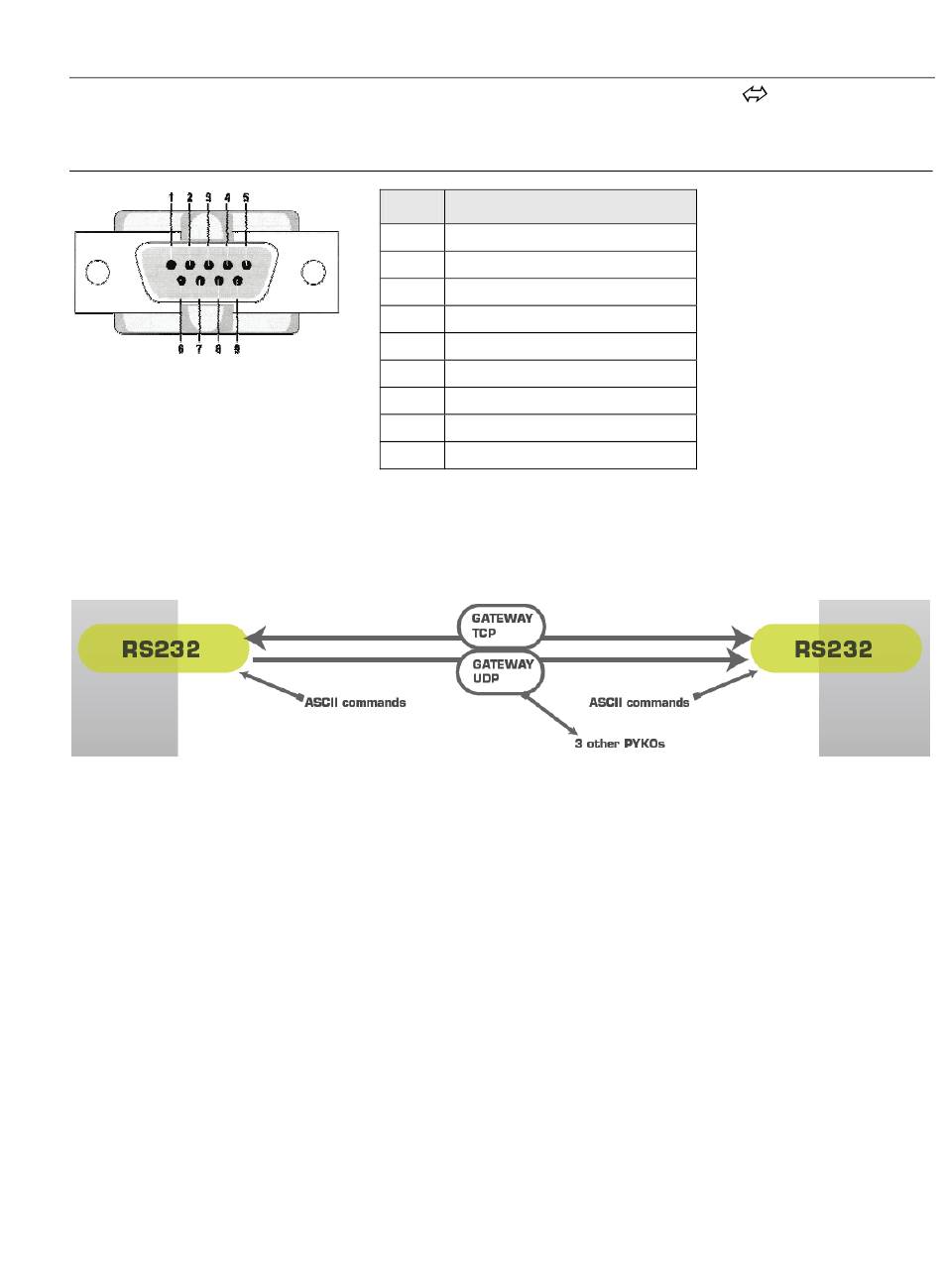

PYKO-in provides an RS232 serial port on a male DB-9 connector on its back panel. This port can be used for
remote control of PYKO-in through an external interface such as, e.g. Vity, AMX or Crestron, or for tunneling
purposes.
It is possible to use the RS232 in gateway mode, in multicast, and in multi-destination (up to 4 destinations)
Pin Description
1
not connected
2
RxD (received data)
3
TxD (transmitted data)
4
not connected
5
signal ground
6
not connected
7
RTS (request to send)
8
CTS (clear to send)
9
not connected
