HOOKE ROAD QP.BXG-038 Manual

Front bumper

Download this manual

QP.BXG-038

Front Bumper

Installation Time: about 2 hours by 2 men(3 men better)

Tools Required:

19mm Wrench & Socket.

INCLUDED COMPONENTS :

(1) Bumper

(2)the complete kit of bolts for installation

Installation Instructions:

STEP 1

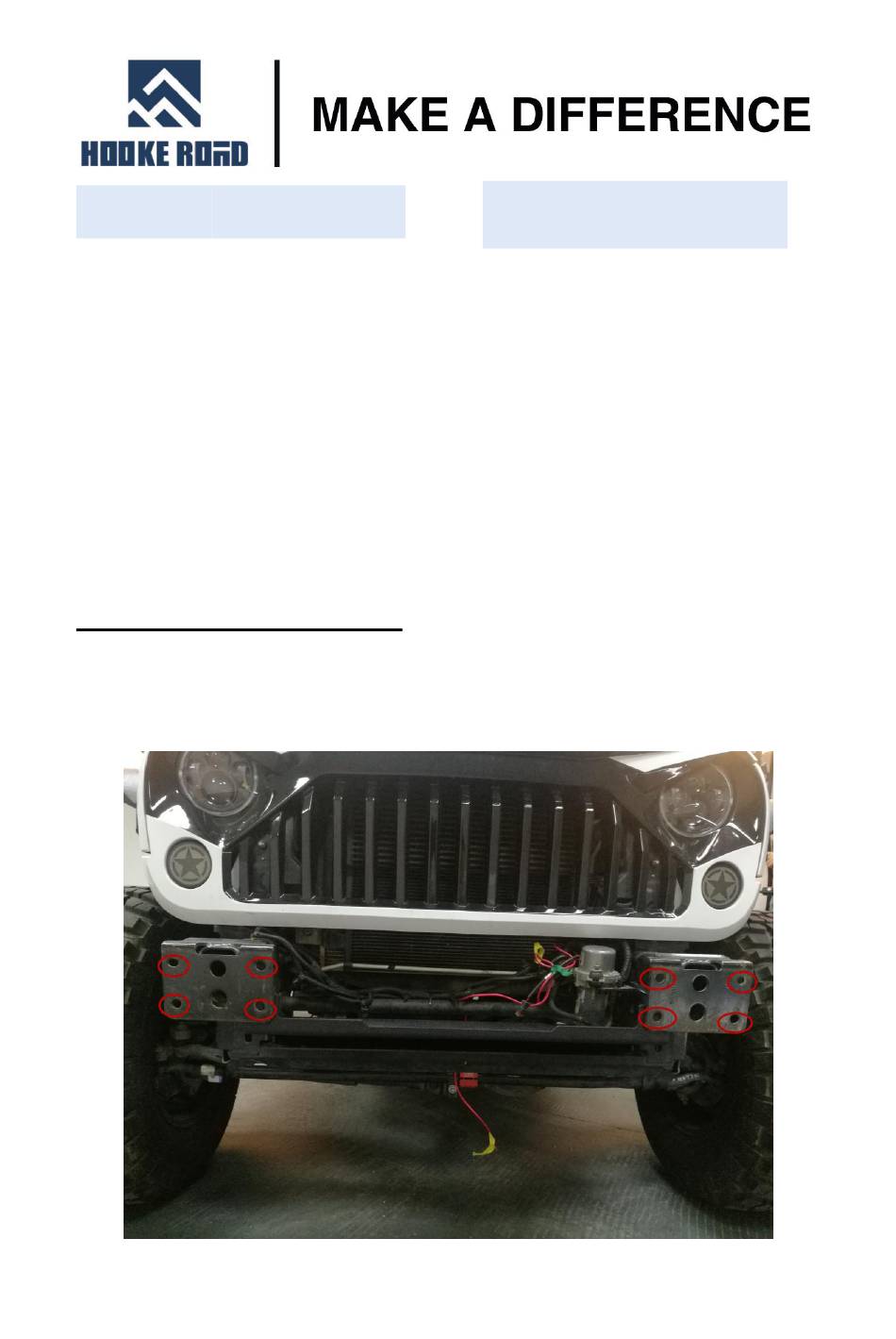

Clean and ready to install part of the front bumper.The red circle in the

picture is used to install the screws.
