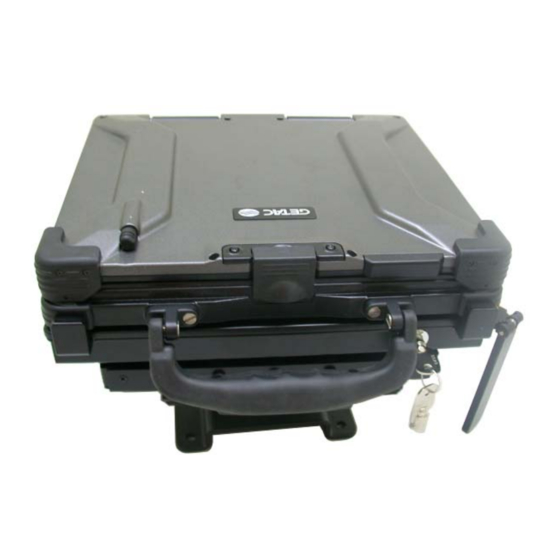

- Page 1 Getac W130 Vehicle Docking User’s Guide Part Number: 799001144013 (2005-09-14)
-
Page 2: Table Of Contents
1.8 Bottom-Side Components ..........7 1.9 Bottom-Side Mechanical Diagram....... 8 1.10 Left & Right SideViews..........9 2.0 Installation Instructions ..........10 2.1 Installing the Car DC Adapter ........10 2.2 Elactrical Guidelines............12 2.3 Engaging W130 with Vehicle Docking ......14... -
Page 3: Getting Started
& hardware features of your vehicle docking plus give you a basic overview of the operation system and installed applications. 1.2 Unpacking Check to be sure that your W130 Vehicle Docking package contains the following items: W130 Vehicle Docking Car DC Adapter x 1 pcs DC Adapter... -
Page 4: Taking A Look At The Vehicle Docking
Turns the Vehicle Docking power ON and Switch External Show the current status of the external Power DC Power-in. Indicator System Show the current status of the System Power Power conductive between Vehicle Indictor Docking and W130. Fuse 16Amp Fuse Lock Security & System protection Lock... -
Page 5: Front Side View Mechanical Diagram
1.4 Front Side View Mechanical Diagram. The Mechanical Diagram may provide a basic construction idea for the further installation with the vehicle pedestal. 1.5 Rear Components 1 2 3 4 5 6 7 8 9 Ref Component Description Power Connects the DC Car Adapter. Connector BNC Video Connects the Video device with BNC... -
Page 6: Top Components
Serial Port Connects a serial device. Serial Port Connects a serial device. VGA Port Connects the external monitor. Audio Output Connects a set of headphones, external Connector speakers with amplifier, an audio recording device, or an SPDIF device such as a digital speaker set for digital audio output. -
Page 7: Top Side View Mechanical Diagram
Ref Component Description Docking For connecting to W130 System Connector Guide Pin For orientating and engaging to W130. 1.7 Top Side View Mechanical Diagram... -
Page 8: Bottom-Side Components
Bottom-Side Components Ref Component Description Port Combine whole the External interface Replicator connectors. Damper For the shock absorber and fixing to the pedestal. Docking Connects the DC Car Adapter. Power-in Connector... -
Page 9: Bottom-Side Mechanical Diagram
1.9 Bottom-side Mechanical Diagram This mechanical diagram indicates the correct dimension for the Docking Adapter. The dimension for the Pedestal Adapter has to match the dimension of Docking Adapter precisely. (Metric: mm) Caution: The dampers are made by rubber in order to ensure the reliability, we strong suggest replace them in every two years. -
Page 10: Left & Right Sideviews
1.10 Left & Right Side Views Ref Component Description Docking Engages the W130 with Vehicle Docking Handle Guide Pin For orientating and engaging to W130... -
Page 11: Installation Instructions
2.0 Installation Instructions 2.1. Installing the Car DC Adapter. 1-1. To install the Car DC Adapter with DC Adapter Bracket. Caution: The power indicator (Green Light) has to face the top, Otherwise the power connector socket cannot match with socket hole: Correct Incorrect... - Page 12 1-2. To install Car DC Adapter assembly with Vehicle Docking by 4 Screws. Note: Base on the construction of Vehicle Pedestal, the Car DC Adapter Assembly can be installed to left side of the Vehicle Docking.
-
Page 13: Elactrical Guidelines
2.2 Electrical Guidelines With the mechanical installation complete, connect the power cables. 1. Plug the Car DC Adapter power cable into Port Replicator. Caution: “Port Replicator can only connect the power from Car DC Adapter”. - Page 14 2. Plug the DC Power Cable into the Car DC Adapter and Docking Power-in.
-
Page 15: Engaging W130 With Vehicle Docking
2.3 Engaging W130 with Vehicle Docking With assembled Vehicle Docking, the W130 can engage with the Vehicle Docking. Caution: “The Software of Vehicle Docking Driver has to be installed before engage the computer with Vehicle Docking. Please refer to the bundle Driver CD for the detail of the Software installation”. - Page 16 2. Push the Docking Handle all the way open. 3. Position W130 onto the Vehicle Docking against the front Guide Pins.
- Page 17 4. Pull the docking handle all the way back tightly to engage the Vehicle Docking and W130. 5. If the Vehicle Docking and computer properly engaged, then System Power indicator (Green Light) glows as well.
- Page 18 6. Secure with the Key Lock. Caution: For the system production, please ensure the “Lock” has been precisely latched then Docking and Computer can fully connect.
