Recommended Cross-Connect Routing - ADC Cross-Connect DSX-1 Operational Procedures Manual

A. All jumpers in the left-hand side of the cross-connect field
should enter and leave the bay from the left vertical
wireways.
B. All jumpers in the right-hand side of the cross-connect field
should enter and leave the bay from the right vertical
wireways.
C. All intrabay cross-connects should use the vertical rings
except when terminations are in the same panel.
D. All interbay cross-connects should use the horizontal
wireways.
E. All jumpers originating in the upper half of the cross-connect
field should route via the upper horizontal wireways.
F. All jumpers originating in the lower half of the cross-connect
field should route via the lower horizontal wireways.
UPPER
JUMPER
WIREWAYS
CROSS-
E
CONNECT
JUMPER
A
VERTICAL
JUMPER
WIREWAYS
B
LOWER
JUMPER
WIREWAYS

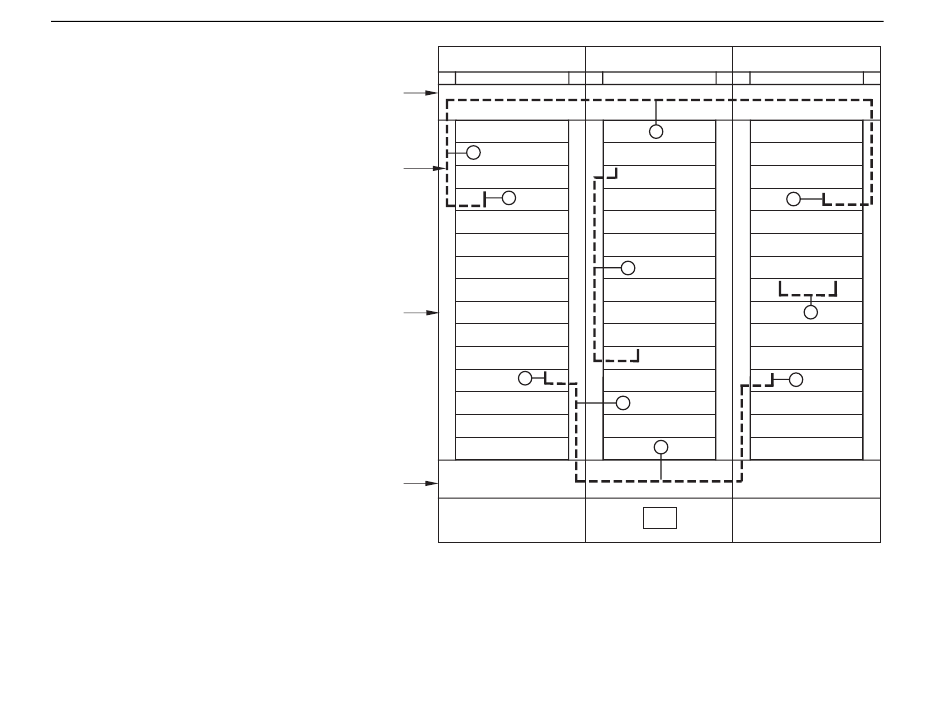

RECOMMENDED CROSS-CONNECT ROUTING

ADCP-80-514 • Issue 1 • January 1999
D
B
C
A
F
D
© 1999, ADC Telecommunications, Inc.
C
3354-A
Page 7
