ADC DSX-1 User Manual

Interbay patch module
Hide thumbs Also See for DSX-1:
Table of Contents

Advertisement

Quick Links

Download this manual
Content
INTRODUCTION ........................................................................... 1
Revision History ....................................................................... 1
List of Changes ....................................................................... 2
Admonishments ....................................................................... 2
1. GENERAL ............................................................................ 2
2. DESCRIPTION......................................................................... 2
3. APPLICATION AND OPERATION .......................................................... 5
4. INSTALLATION ........................................................................ 6
Power and Ground Connections ....................................................... 7
Interbay Interconnection Wiring........................................................ 7
5. SYSTEM INTEGRATION SERVICES ....................................................... 10
6. CUSTOMER SUPPORT SERVICES ........................................................ 10

INTRODUCTION

This manual describes the ADC DSX-1 and DSX-1C Interbay Patch Modules and their use in
multiple bay single lineups and in multiple bay multiple lineups.

Revision History

ISSUE
DATE
Issue 3
12/96
4-40001-4095
BANTAM JACK INTERBAY PATCH MODULE
REASON FOR CHANGE
Update to standard format. Changed title from DSX-1 and DSX-1C Interbay Module to DSX-1 and
DSX-1C Interbay Patch Module. Remove all information relating to Longframe modules.

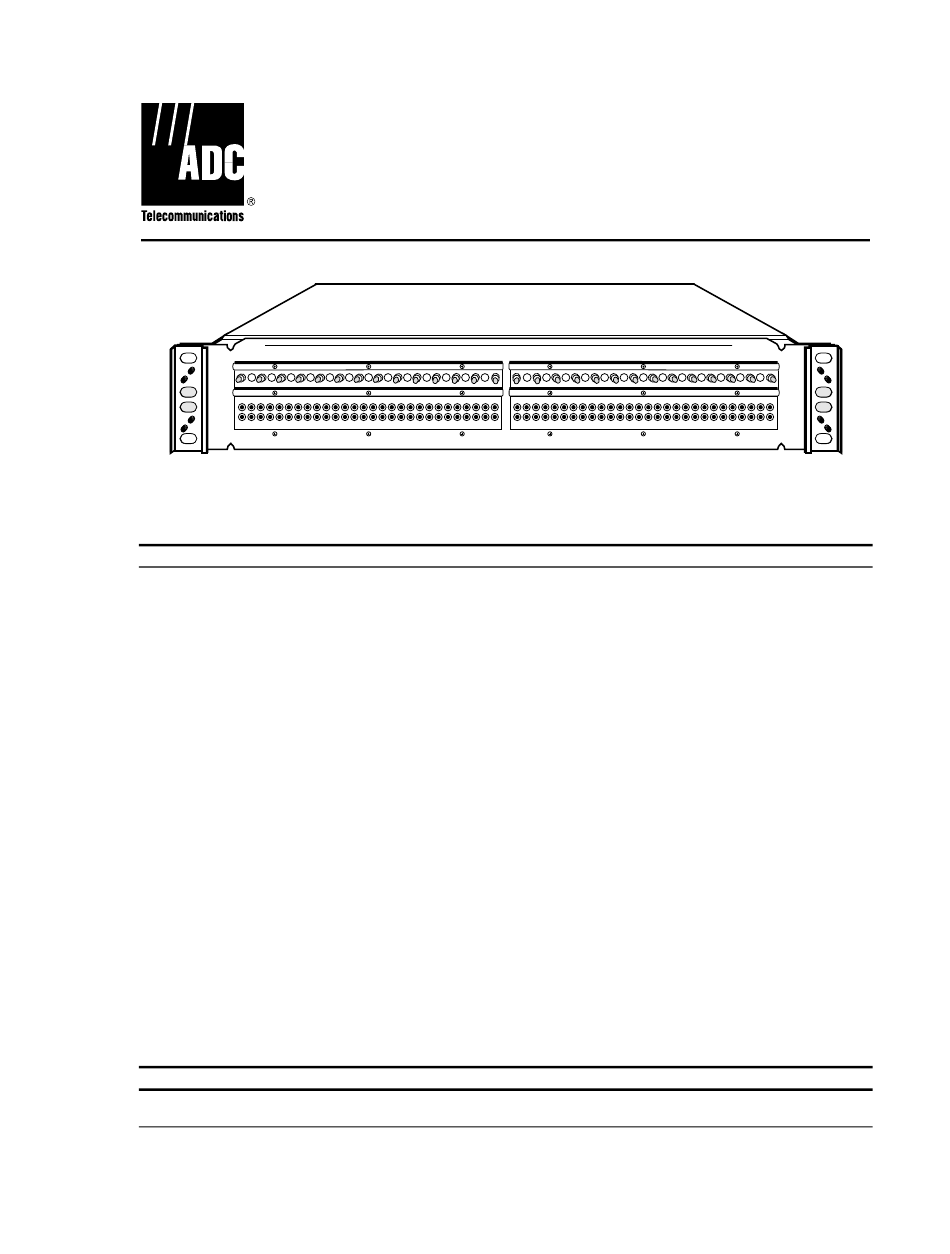

Issue 3, December 1996
DSX-1 and DSX-1C
Interbay Patch Module
User Manual
© 1996, ADC Telecommunications, Inc.
ADCP-80-324
8906-A
Page
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSX-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADC DSX-1

Summary of Contents for ADC DSX-1

  • Page 1: Table Of Contents

    5. SYSTEM INTEGRATION SERVICES ............10 6. CUSTOMER SUPPORT SERVICES ............10 INTRODUCTION This manual describes the ADC DSX-1 and DSX-1C Interbay Patch Modules and their use in multiple bay single lineups and in multiple bay multiple lineups. Revision History...

  • Page 2: List Of Changes

    1. GENERAL 1.01 This manual describes the ADC DSX-1 and DSX-1C Interbay Patch Module and its use in multiple bay single lineups, and in multiple bay multiple lineups DSX Systems. The Module is described both physically and functionally, and simplified schematic diagrams are included to show interconnecting cabling and circuit patching operations.
  • Page 3 IN L OUT R CIRCUIT 1 CIRCUIT 14 CIRCUIT 15 LED INDICATOR CIRCUIT 28 BANTAM INTERBAY MODULE LEFT RIGHT JACKS JACKS 8438-A Figure 2. Front View of Bantam Jack Interbay Patch Module Module Page 3 © 1996, ADC Telecommunications, Inc.
  • Page 4 INTERBAY CABLING Figure 5. Interbay Patch Setup to the Right PATCH PATCH CORDS CORDS 8763-B BUSY INDICATOR DARK BUSY INDICATOR LIT INTERBAY CABLING Figure 6. Interbay Patch Setup Using Left and Right Jacks Page 4 © 1996, ADC Telecommunications, Inc.

  • Page 5: Application And Operation

    It is recommended that Interbay Patch Modules are installed and wired as shown in Figure 7. As shown, typically the modules are installed in maintenance bays in each DSX-1 system lineup. For simplicity only two circuits on each module are shown in multiples between modules within the lineup and two circuit multiples between modules in other lineups.

  • Page 6: Installation

    4.01 Installation of Interbay Patch Modules in various DSX-1 bays involves the interconnection of the circuits on the terminal blocks at the back of the modules and connection of battery and battery return leads for the LED indicators. Office power to the Interbay Patch Module should be fused at 0.5 Amp.

  • Page 7: Power And Ground Connections

    Figure 8. Typical Bantam Interbay Module Power Terminal Strip A. Power and Ground Connections 4.02 A typical DSX-1/1C Interbay Patch Module power terminal strip is shown in Figure Connect each module to the fuse module as follows: Connect the –48V terminal on the module to a NEG (–) terminal on the fuse module (white wire).
  • Page 8 Specific wire-wrap terminals are defined on each installation drawing. A typical installation drawing is shown in Figure 9. Interbay Patch Modules are normally located in every fourth bay of DSX-1 and DSX-1C systems as shown in Figure Page 8 © 1996, ADC Telecommunications, Inc.
  • Page 9 CIRCUITS CIRCUITS 1 – 14 15 – 28 MTCE MTCE MTCE MTCE MTCE TRIPLE LINEUP 8766-C MTCE = MAINTENANCE BAY WITH INTERBAY PATCHING PANEL. Figure 10. Typical DSX1/1C Bay Arrangement Showing Interconnection Wiring Page 9 © 1996, ADC Telecommunications, Inc.

  • Page 10: System Integration Services

    Issue 3, December 1996 5. SYSTEM INTEGRATION SERVICES 5.01 ADC offers the following system integration services. For calls originating in the U.S.A. or Canada, dial 1-800-366-3891, extension 3000. For calls originating outside the U.S.A. or Canada, dial 612-946-3000. Technical Assistance Center •...
  • Page 11 Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages.

This manual is also suitable for:

Dsx-1c
