Step 1.
Patch from the DSX MON OUT jacks of the Equipment to DSX IN jacks of Maintenance Line at each office.
Step 2.
Patch from the DSX OUT jacks of Maintenance Line to DSX IN jacks of Equipment at each office.
Step 3.
Terminate the DSX OUT jack of the Equipment at each office. To remove patches without service
interruption, reverse these steps in the exact sequence.
Caution: For in-service patching, each step must be completed at both offices before proceeding to the next step.
Note: Bridging Repeaters are located in the Office Repeater Bay as part of the Maintenance Line.

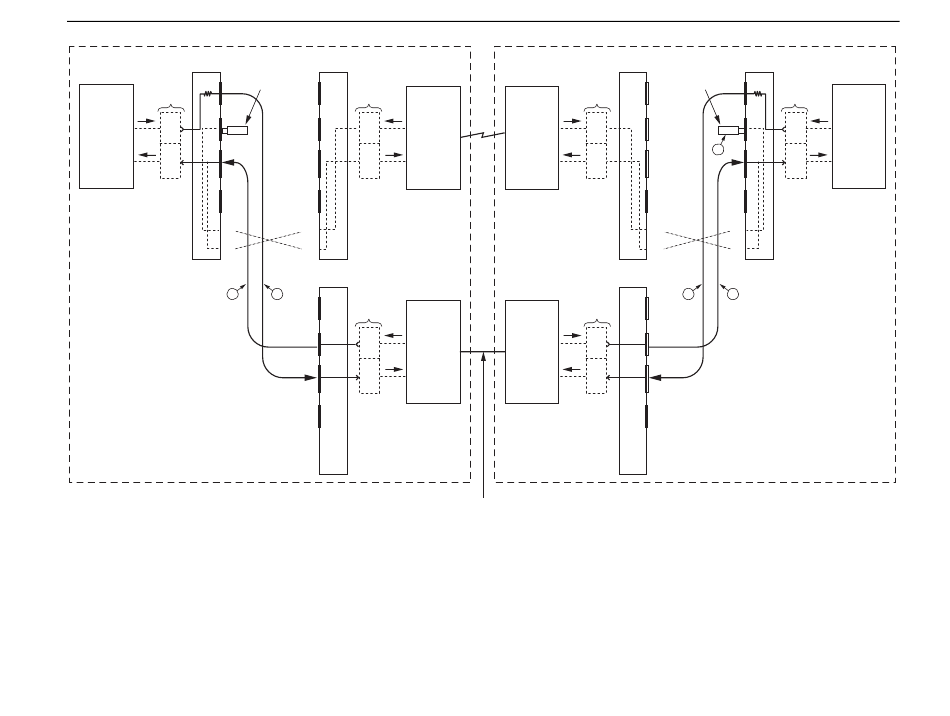

RESTORATION USING A MAINTENANCE LINE
