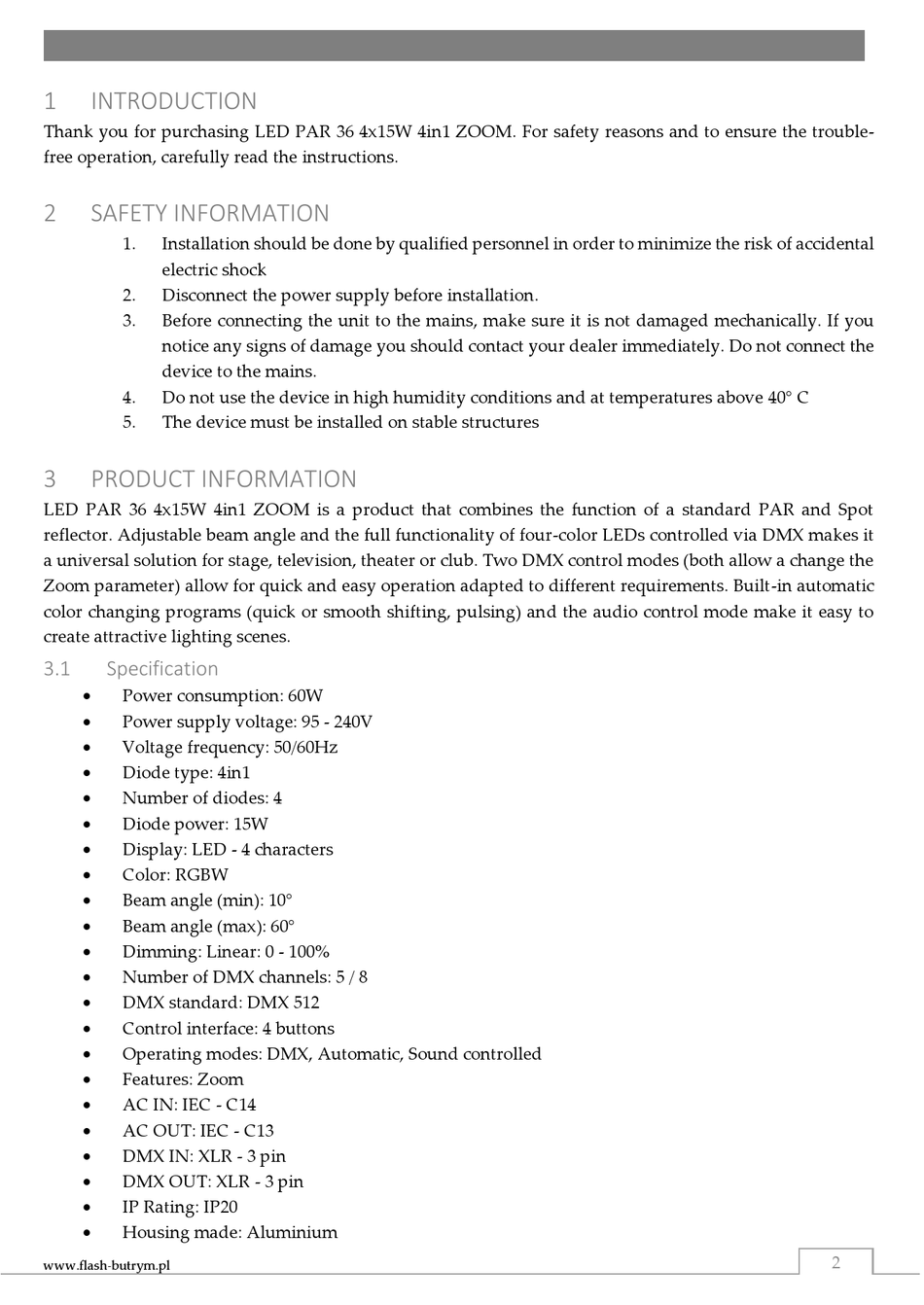

INTRODUCTION

Thank you for purchasing LED PAR 36 4x15W 4in1 ZOOM. For safety reasons and to ensure the trouble-
free operation, carefully read the instructions.
2

SAFETY INFORMATION

1. Installation should be done by qualified personnel in order to minimize the risk of accidental
electric shock
2. Disconnect the power supply before installation.
3. Before connecting the unit to the mains, make sure it is not damaged mechanically. If you
notice any signs of damage you should contact your dealer immediately. Do not connect the
device to the mains.
4. Do not use the device in high humidity conditions and at temperatures above 40° C
5. The device must be installed on stable structures
3

PRODUCT INFORMATION

LED PAR 36 4x15W 4in1 ZOOM is a product that combines the function of a standard PAR and Spot
reflector. Adjustable beam angle and the full functionality of four-color LEDs controlled via DMX makes it
a universal solution for stage, television, theater or club. Two DMX control modes (both allow a change the
Zoom parameter) allow for quick and easy operation adapted to different requirements. Built-in automatic
color changing programs (quick or smooth shifting, pulsing) and the audio control mode make it easy to
create attractive lighting scenes.
3.1

Specification


Power consumption: 60W

Power supply voltage: 95 - 240V

Voltage frequency: 50/60Hz

Diode type: 4in1

Number of diodes: 4

Diode power: 15W

Display: LED - 4 characters

Color: RGBW

Beam angle (min): 10°

Beam angle (max): 60°

Dimming: Linear: 0 - 100%

Number of DMX channels: 5 / 8

DMX standard: DMX 512

Control interface: 4 buttons

Operating modes: DMX, Automatic, Sound controlled

Features: Zoom

AC IN: IEC - C14

AC OUT: IEC - C13

DMX IN: XLR - 3 pin

DMX OUT: XLR - 3 pin

IP Rating: IP20

Housing made: Aluminium
