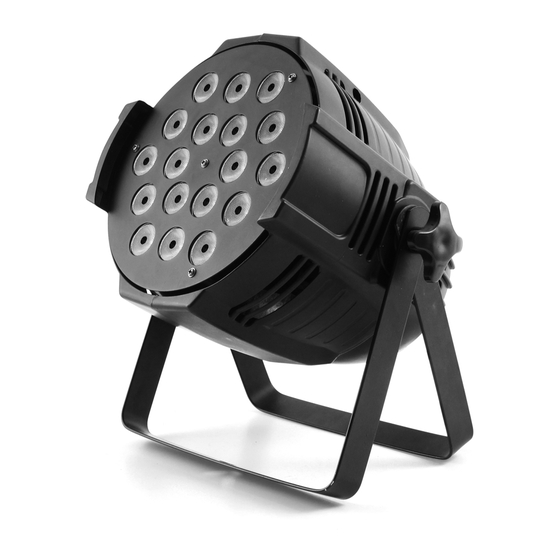

LED PAR 18x 10W RGBW 4in1
Aluminium single cast v.III
F7000048B
USER MANUAL / INSTRUKCJA OBSŁUGI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F7000048B and is the answer not in the manual?

Questions and answers

Summary of Contents for Flash F7000048B

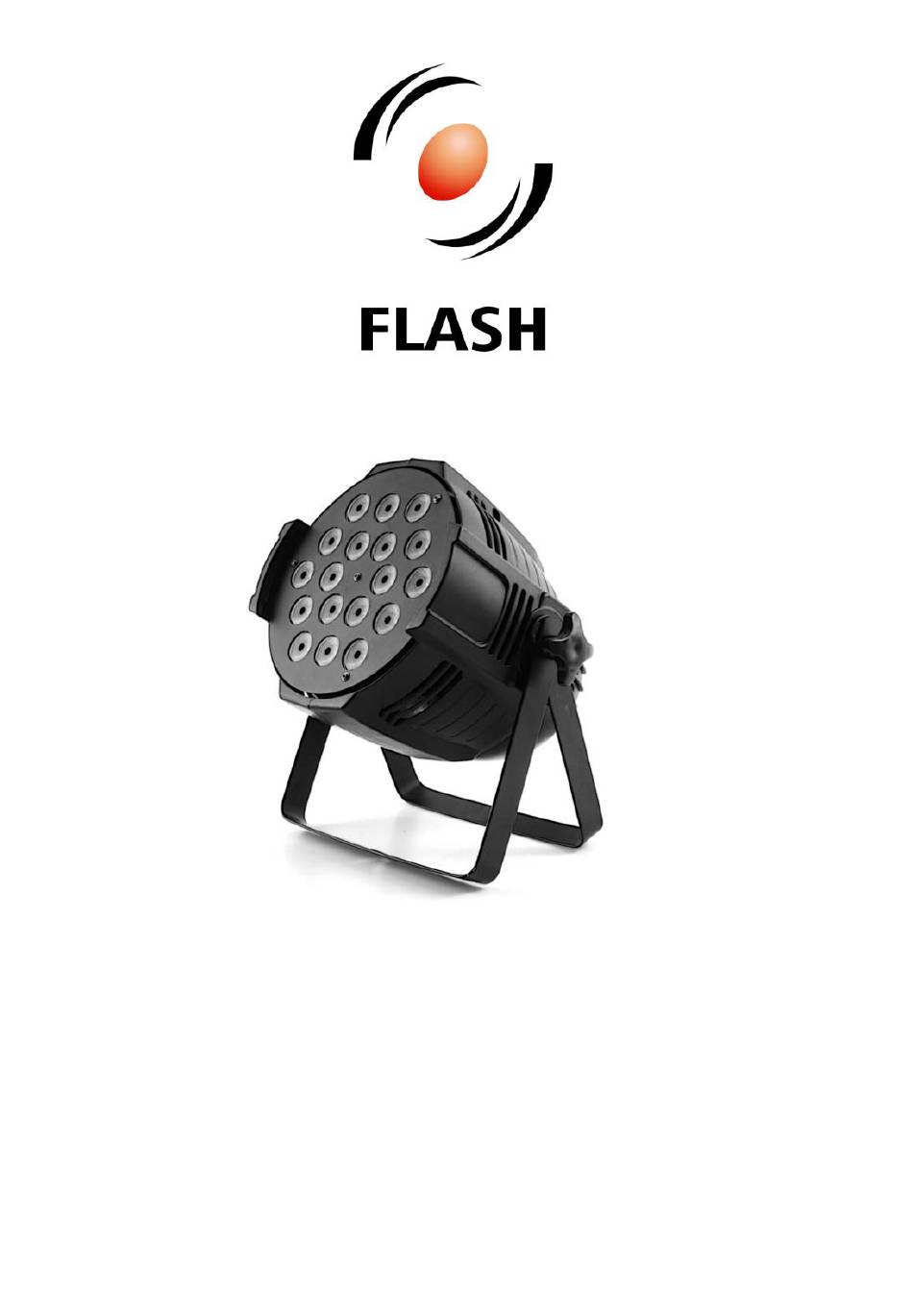

  • Page 1 LED PAR 18x 10W RGBW 4in1 Aluminium single cast v.III F7000048B USER MANUAL / INSTRUKCJA OBSŁUGI...
  • Page 2: Table Of Contents

    LED PAR 18x 10W RGBW 4in1 Aluminium single cast v.III F7000048B Table of Contents Introduction ..............................2 Safety information ............................2 Product information ............................2 Specification ..............................2 Installation ................................ 3 Connections ..............................3 Connecting DMX signal..........................3 Voltage specification ..........................3 Connecting power supply ........................
  • Page 3: Introduction

    DMX IN: XLR - 3 pin  DMX OUT: XLR - 3 pin  IP Rating: IP20  Housing made: Aluminium  Cooling: Active  Height [cm]: 35  Width [cm]: 25  Depth [cm]: 25  Weight [kg]: 3 www.flash-butrym.pl...
  • Page 4: Installation

    LED PAR 18x 10W RGBW 4in1 Aluminium single cast v.III F7000048B INSTALLATION After removing the packaging, check if the device was not damaged during transport. Before connecting to the mains, make sure that the device is securely mounted. The manufacturer is not responsible for damage caused by unstable mounting.
  • Page 5: Operation Manual

    0-255: Slow to fast CH 7 Speed 0-255: Slow to fast 0-50: Open CH 1 – CH 5 51-100: Procedure select color 101-150: Procedure gradual change CH 8 Macro 151-200: Procedure pulse change 201-250: Procedure jump change 251-255: Sound-activated open www.flash-butrym.pl...
  • Page 6: Wprowadzenie

    LED PAR 18x 10W RGBW 4in1 Aluminium single cast v.III F7000048B WPROWADZENIE Dziękujemy za zakup urządzenia LED PAR 64 18x10W RGBW Aluminum Cast. Ze względów bezpieczeństwa oraz w celu zapewnienia bezawaryjnej pracy urządzenia należy dokładnie zapoznać się z instrukcją. ZASADY BEZPIECZEŃSTWA Instalacja powinna być...
  • Page 7: Instalacja

    UWAGA! W przypadku uszkodzenia przewodu nie należy dokonywać samodzielnej naprawy. Wymiana lub naprawa może być wykonana jedynie w serwisie producenta lub przez osobę z odpowiednimi uprawnieniami. www.flash-butrym.pl...
  • Page 8: Instrukcja Użytkowania

    LED PAR 18x 10W RGBW 4in1 Aluminium single cast v.III F7000048B INSTRUKCJA UŻYTKOWANIA Panel sterowania Panel sterowania wyposażony jest w wyświetlacz oraz w 4 przyciski sterujące o następujących funkcjach: MENU – wejście do menu głównego DOWN – wybór opcji, edycja parametru UP –...
