LED PAR 36 4x15W 4in1 ZOOM F7000200
Cooling: Passive
Height [cm]: 23
Width [cm]: 23
Depth [cm]: 34
Weight [kg]: 4,5
Weight with packaging [kg]: 6
4

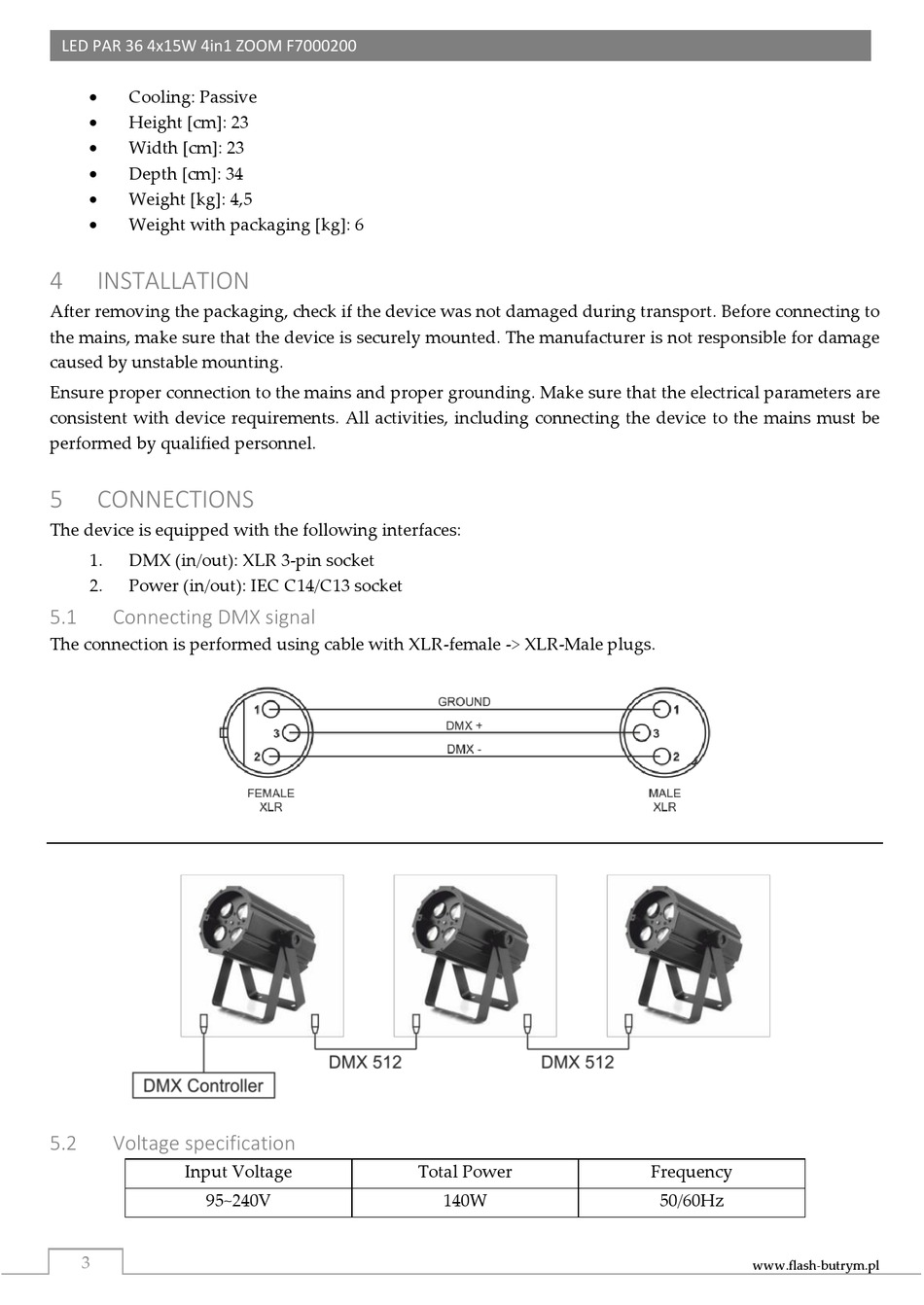

INSTALLATION

After removing the packaging, check if the device was not damaged during transport. Before connecting to
the mains, make sure that the device is securely mounted. The manufacturer is not responsible for damage
caused by unstable mounting.
Ensure proper connection to the mains and proper grounding. Make sure that the electrical parameters are
consistent with device requirements. All activities, including connecting the device to the mains must be
performed by qualified personnel.
5

CONNECTIONS

The device is equipped with the following interfaces:
1.
DMX (in/out): XLR 3-pin socket
2.
Power (in/out): IEC C14/C13 socket
5.1

Connecting DMX signal

The connection is performed using cable with XLR-female -> XLR-Male plugs.
5.2

Voltage specification

Input Voltage
95~240V
3
Total Power
140W
Frequency
50/60Hz
