Summary of Contents for AmScope DM745-HDM9-3MP

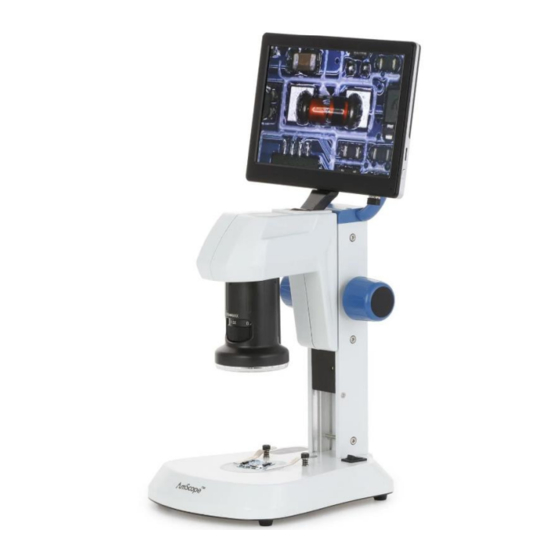

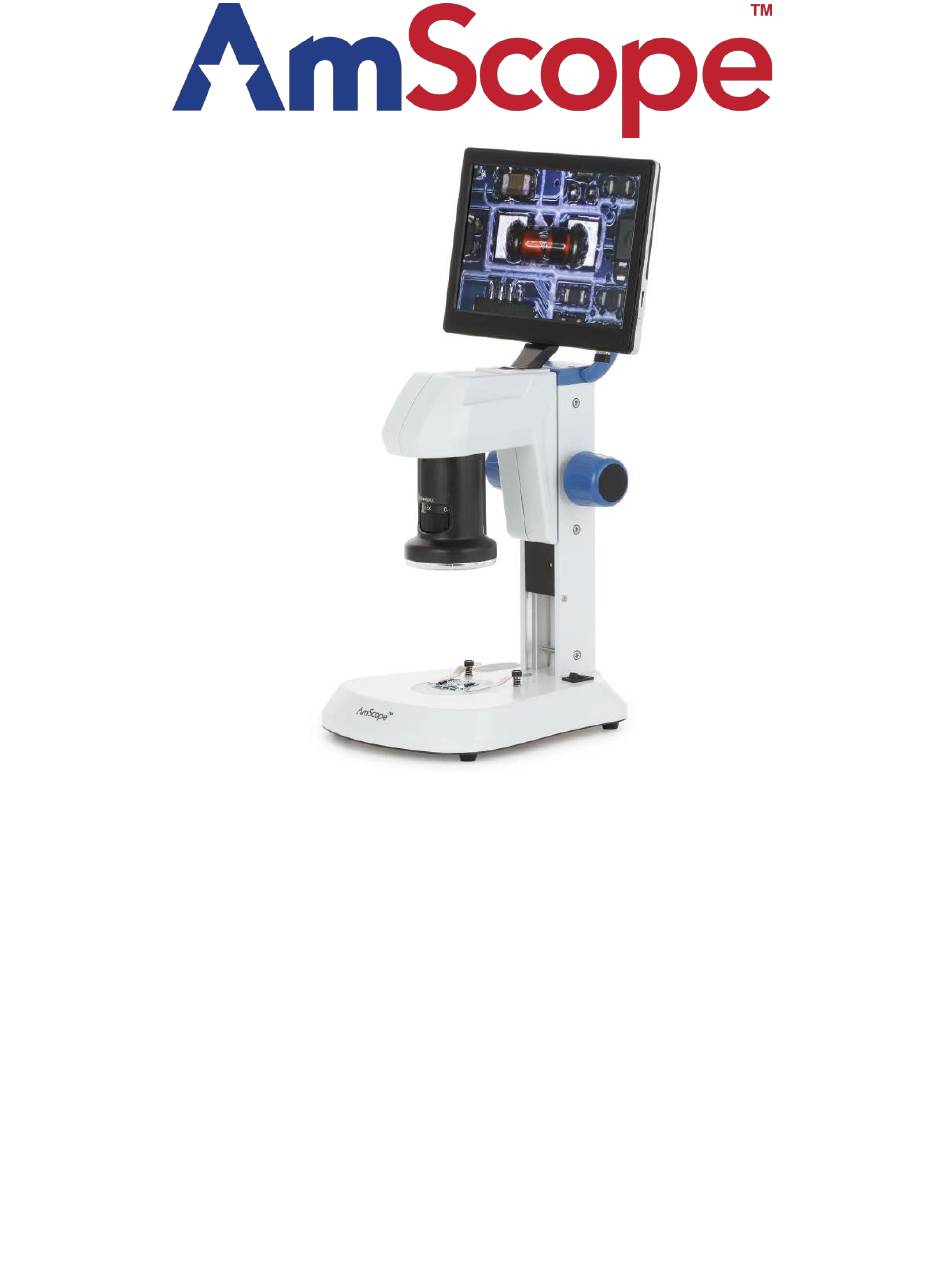

- Page 1 DM745-HDM9-3MP Digital Microscope for Industrial Inspection with 0.7X-4.5X Zoom and 9" Screen Product Manual v0.9.20221024...
- Page 2 Notices AmScope reserves the right to change the specifications of the hardware and software at any time without notice. Continuous efforts aremade to improve performance and reliability, which can result in changes to design and compatibility. Please contact AmScope for any concerns regarding such changes.
-
Page 3: What's In The Box
8.8X~56X Native Resolution 1024 x 600 Aspect Ratio 16:9.375 Brightness 400 lumens What’s In The Box The DM745-HDM9-3MP standard outfit includes: • One microscope with track stand and monitor • One USB wireless mouse • One AC power adapter •... -
Page 4: Operation
DM745-HDM9-3MP User Manual 1. Assembly Digital Peripherals The microscope has one USB port on the right underhand side of the monitor. This is used to connect the included mouse. The microscope also has one micro SD card slot on the right side of the monitor, labelled TF-Card. - Page 5 DM745-HDM9-3MP User Manual Magnification 2.2a Zoom Dial The zoom dial controls the magnification of the microscope by adjusting the internal zoom mechanism. The dial can be rotated in a continuous movement from the 0.7X setting to the 4.5X setting. Rotating the dial to the right will decrease the magnification, and rotating the dial to the left will increase the magnification 2.2b...
- Page 6 DM745-HDM9-3MP User Manual 2.2c Monitor Magnification Since the image displayed on the monitor is larger than the camera’s sensor, the monitor is considered to have its own magnification referred to as monitor magnification. The magnification factor is calculated by dividing the diagonal of the on-screen image by the diagonal of the camera’s sensor.
- Page 7 DM745-HDM9-3MP User Manual The DM745-HDM9-3MP uses internal software to manage camera and display settings, as well as to perform image- capture and measuring functions. All of these functions are accessed from the display. The software has four major menus including the main toolbar, the settings menu, the measurement toolbar, and the calibrations menu.
- Page 8 DM745-HDM9-3MP User Manual Calibration The calibration section is used to select precalibrated magnification profiles or to define custom profiles. A magnification profile defines the relationship between camera pixels and real units of measure such as millimeters. Once this relation- ship is defined, any shape drawn on the screen will provide accurate measurements by translating the number of pixels into the desired unit of measure.
-
Page 9: Main Toolbar
DM745-HDM9-3MP User Manual Main Toolbar The Main Toolbar contains display setting options, simple primary functions, and shortcuts to access settings and measurement menus. It also includes a display for time and date, as well as a means to set this data. -
Page 10: Measurement Toolbar
DM745-HDM9-3MP User Manual Measurement Toolbar The Measurement Toolbar contains measurement and calibration options, as well as simple measurement export functions. Panel Function Description Point: marks cursor click location with a cross marker and pixel location Free line: draw along an arbitrary measurement path. - Page 11 DM745-HDM9-3MP User Manual Notes: add text Page 11...
- Page 12 DM745-HDM9-3MP User Manual Additional Measurement Tools The additional measurement tools section provides the tools necessary for managing measurement settings, capturing, and exporting measurements. Panel Function Description Color: select a measurement or label color Line width: change the line width of shapes and labels Clear screen: removes all measurement label elements.
- Page 13 DM745-HDM9-3MP User Manual 3.10 The Exp&Col&Freq Panel The Exp&Col&Freq panel provides controls for manipulating camera settings which can optimize image quality for specific subjects. Panel Function Description Auto Exposure: automatically adjusts exposure settings. Bright: adjust the brightness of the image.
- Page 14 DM745-HDM9-3MP User Manual 3.11 The Pict&Overlay Panel The Pict&Overlay panel provides controls for manipulating picture and overlay settings which can adjust image stylization and highlight certain elements. Panel Function Description Contrast: adjust the contrast of the image. Saturation: adjust the colour saturation of the image.
-
Page 15: Image Exposure
4. Image Exposure Manual Exposure The brightness setting is used to manually control the amount of light captured by the imaging device. Manual control is preferable when imaging light or dark specimens which do not appear properly exposed when using auto exposure. Auto Exposure Auto exposure automatically adjusts the brightness of the image by calculating an average of light levels in the viewable area.
