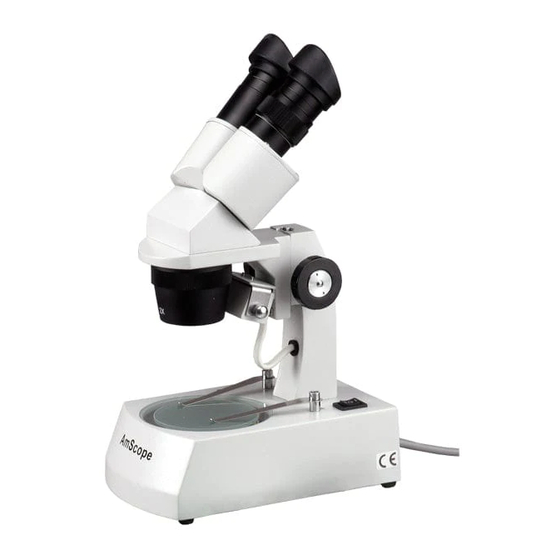

- Page 1 SE300 Series User’s Manual...
-
Page 2: Table Of Contents
SE300 Series Table of Contents Before Use..................3 Introduction ......................3 Safety Precautions ....................4 Parts ....................5 SE303-P & SE304-P ..................SE305-P & SE306-P ..................SE305R-P & SE306R-P ..................SE307-P & SE308-P ..................SE305-A & SE306-A ..................Definition of Parts ..................... -
Page 3: Before Use
Before Use Introduction Congratulations on the purchase of your new AmScope microscope! This manual is designed for the SE300 series microscopes. Please take a few minutes to familiarize yourself with the features and functions of your new mi- croscope. If you’ d like more information on microscopes, parts, or accessories, please visit our website at: www.iScopeCorp.com... -
Page 4: Safety Precautions
SE300 Series Before Use Safety Precautions 1. As the microscope is a precision instrument, always handle it with care, avoiding impact or abrupt movement during transportation. Do not shake the package. 2. Do not place the microscope in direct sunlight or in high heat. Keep it indoors in a dry and clean place with temperatures between 32-100 degrees F (0-40 degrees C), and in maximum relative humidity of 85%. -
Page 5: Parts
SE300 Series Parts SE303-P & SE304-P Eyeguards Eyetubes Diopter Pillar Stand Lock-screw Objective Focusing Housing Knob Top Light Stage Clips Stage Plate Fig 1: SE303-P & SE304-P... -
Page 6: Se305-P & Se306-P
SE300 Series Parts SE305-P & SE306-P Eyeguards Eyetubes Diopter Pillar Stand Lock-screw Objective Focusing Knob Housing Top Light Glass Stage Plate Bottom Light Fig 2: SE305-P & SE306-P... -
Page 7: Se305R-P & Se306R-P
SE300 Series Parts SE305R-P & SE306R-P Reversed Head Lock-screw Focusing Knob Top Light Bottom Light Fig 3: SE305R-P & SE306R-P... -
Page 8: Se307-P & Se308-P
SE300 Series Parts SE307-P & SE308-P Pillar Stand Focus Knob Top Light Bottom Light Fig 4: SE307-P & SE308-P... -
Page 9: Se305-A & Se306-A
SE300 Series Parts SE305-A & SE306-A Arm Stand Focusing Knob Top Light Bottom Light Fig 5: SE305-A & SE306-A... -
Page 10: Definition Of Parts
SE300 Series Parts Definition of Parts Continuous Zoom A microscope head with a knob to change magnification through a range Dimmer Controls the amount of light that escapes from the illumination source Diopter Allows the focus to be perfected for both eyes, independent of each other... -
Page 11: Getting Started
Check carefully to ensure that all parts and accessories are intact. Check the packing list to ensure that you’re received all items. Please note that this can vary depending on which model you’ve purchased, and is generally listed on www.amscope.com at the items’ details page for your specific model. -
Page 12: Operation
SE300 Series Operation Setting Up 1. Once you have placed your sample on the table or base below the objective, center the sample as best as possible. A slide is neither needed nor required for a stereo microscope, although they can be used if desired. -
Page 13: Attaching A Camera
Attaching a Camera If you have an AmScope MD series camera, you only need the 30.5mm adapter that comes with it to attach it to SE300 series microscope. However, you may need an adapter if you have a non-AmScope brand camera. -
Page 14: Maintenance/Precautions
Doing so will void your warranty unless by advisement of one of our technicians to do so. - After use, cover the microscope with the provided dust cover. - Keep your AmScope microscope in a dry, clean location in order to prevent rust or other damages. -
Page 15: Specifications
SE300 Series Specifications SE300 Series Specifications... - Page 16 SE300 Series Specifications SE300 Series Specifications continued...
-
Page 17: Electrical System
SE300 Series Specifications Electrical System There are two options for electrical systems for this series of microscope. Both equipped with 12V/10W lamps. 1. 220V~240V power supply: 220V~240V ±10%, 50Hz This electrical system is CE and GS certified 2. 100V~120V power supply: 100V~120V ±10%, 60Hz This electrical system is UL certified. -
Page 18: Troubleshooting
SE300 Series Troubleshooting Common Issues (Optical) Symptom Cause Solution OPTICAL ISSUES Obstructions are Stains, dust, or dirt has accumulated on the speci- Clean the slide or use a new specimen if sample is destroyed observed in the field of view... -
Page 19: Common Issues (Mechanical)
SE300 Series Troubleshooting Common Issues (Mechanical) Symptom Cause Solution MECHANICAL ISSUES Unable to move the The slide is not secured correctly Adjust the slide and utilize the stage clips specimen smoothly No gem clip used Try using the gem clip for small items...
