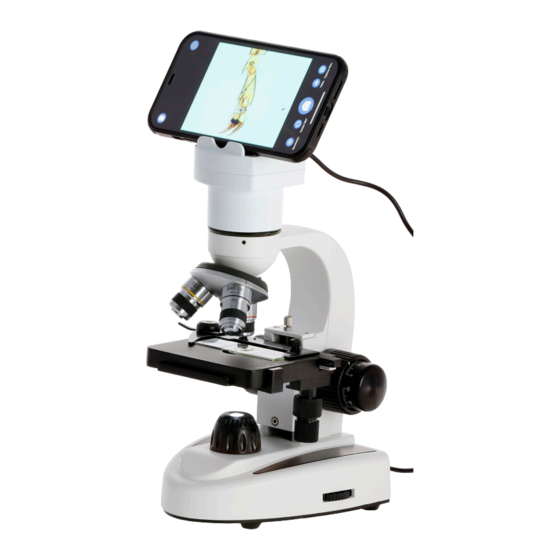

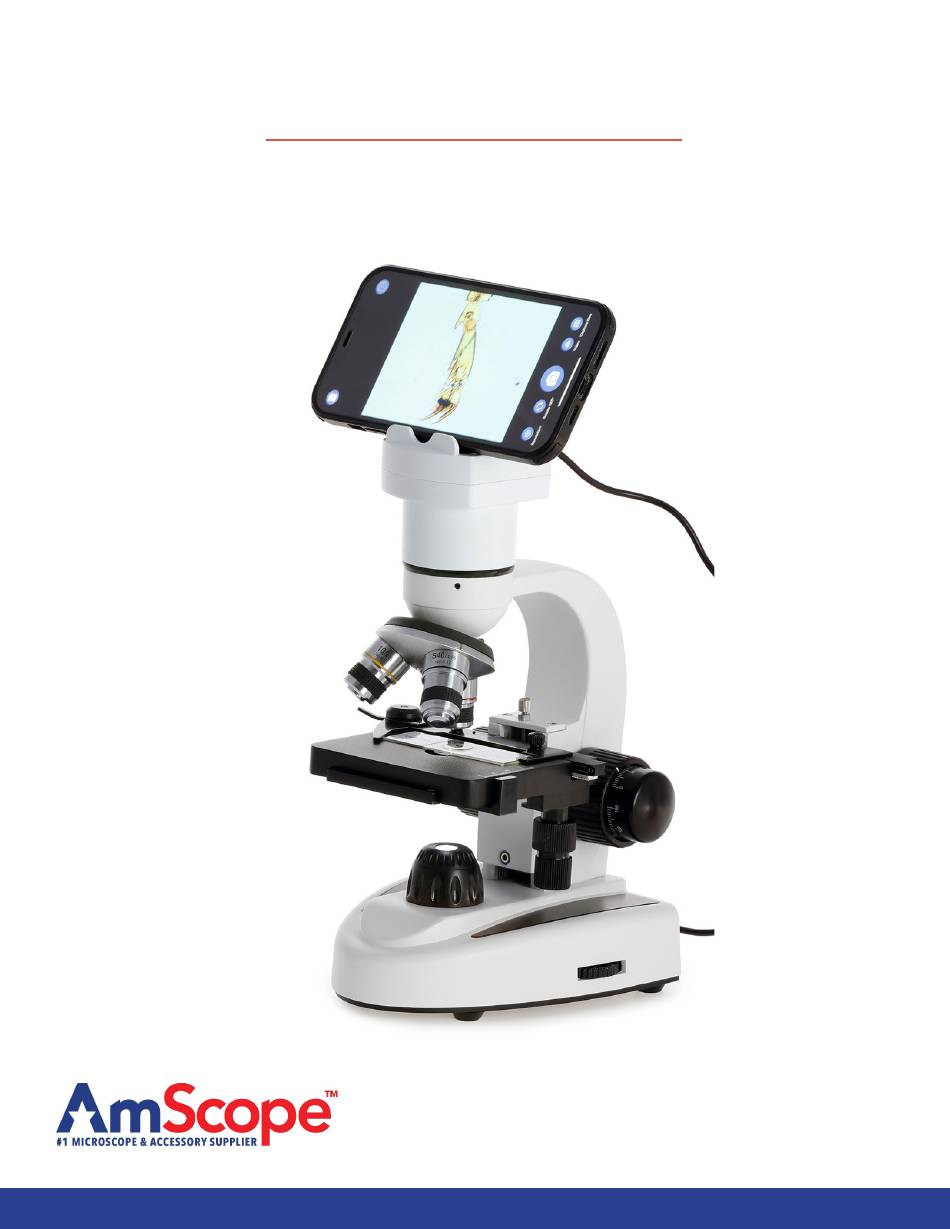

- Page 1 AmScope DM Series DM150-W user manual...
-
Page 2: Introduction
INTRODUCTION Thank you for purchasing the AmScope DM150-W Full HD Digital Compound Microscope. Please read this manual carefully before using this product to ensure correct and safe use. • The content of this manual is subject to change without notice. -
Page 3: Table Of Contents
3.1 The Specimen Stage ....................... 11 3.2 Power ............................11 3.3 Mounting a specimen ......................11 3.4 Illumination ..........................11 3.5 Locating the specimen, and focusing ................11 - 12 Specifications..............................13 Customer Solutions ........................... 14 Warranty ..............................14 Notes ................................15 amscope.com... -
Page 4: Notes On Handling And Safety
• Impacts, even small ones, can affect the precision of the objective. Handling the LED Note: The LED illumination system is not designed to be user-serviced. Contact AmScope for any concerns or service requirements. • Despite being energy-efficient, the LED illumination system emits heat. Avoid touching the field lens or lamp- housing. - Page 5 Moving and assembling • The AmScope microscope is a relatively heavy system. Consider this when moving and installing the system. • Always lift the digital microscope by holding the handle/arm in combination with the base of the microscope.
-
Page 6: Components Of The Compound Microscope
COMPONENTS OF THE MICROSCOPE The names of the several parts are indicated in the picture: Smartphone Rest Objective Turret Objective Stage Lens Height Limiter Coarse Focus Stage Fine Focus Illuminator Stage Controls Illuminator Brightness Control amscope.com... -
Page 7: Unpacking The Microscope
• 20.32mm RMS mounting thread • 160mm mechanical tube-length • 45mm parfocal distance stands for Deutsches Institut für Normung which is a German standards organization. Microscopes and objective lenses which are DIN compliant will use the aforementioned specifications amscope.com... -
Page 8: Downloading & Connecting To The App
DM-WIFI- and is followed by four numbers. Connect and allow a moment for any prompts to pop up and allow them. Navigate back to the DM WiFi app as you will not be taken back automatically after you have connected. You can now begin viewing subjects from the microscope onto your smart device screen. amscope.com... -
Page 9: Navigating The App
SECTION 2: DOWNLOADING, CONNECTING TO, & USING THE APP 2.3 Navigating the APP Video Gallery Photo Gallery Minimize Specimen View Settings Menu - Change Language, View Version Info Change Video Resolution Rotate Screen Take a Picture Record Video Galleries amscope.com... -
Page 10: Operating The Microscope
Batteries are not included. If using rechargeable AAA batteries, the microscope will recharge the batteries when plugged into an AC outlet using the included power adapter. amscope.com... -
Page 11: The Specimen Stage
Sliding the specimen towards the front of the microscope will result in the viewed image moving in the opposite direction. Use the knobs until the specimen appears to be centered under the objective lens. This will be the starting point. amscope.com... - Page 12 When doing so, it is advisable to watch the lens as it is set in place to ensure it will not collide with the specimen. Slight adjustments to focus should be made at each magnification, as well as the illuminator’s brightness. amscope.com...
-
Page 13: Specifications
Double-layer with caliper Stage Dimensions 95mm x 105mm Transmitted Illumination Variable-intensity 1W LED Condenser .65 Single lens Sub-stage Condenser-holder Rack and pinion Magnification Corrections Numerical Aperture Immersion Medium Cover-glass Thickness achromatic 0.10 0.17mm achromatic 0.25 0.17mm achromatic 0.65 0.17mm amscope.com... -
Page 14: Customer Solutions
Monday through Friday, excluding holidays. In the unlikely event that your microscope requires returns or exchange, write or call the AmScope Customer Ser- vice first, before returning the microscope, provide a detailed description of the problem, as well as your name, address, and daytime telephone number. -
Page 15: Notes
NOTES amscope.com... - Page 16 Phone : 1-888-950-2888 (toll free) | Fax : 949-271-4795 | Email: info@amscope.com Our Office Hours are Monday to Friday, from 5:00am to 6:00pm Pacific Time www.amscope.com © 2021 AmScope. All Rights Reserved. UM-420-07-21...
