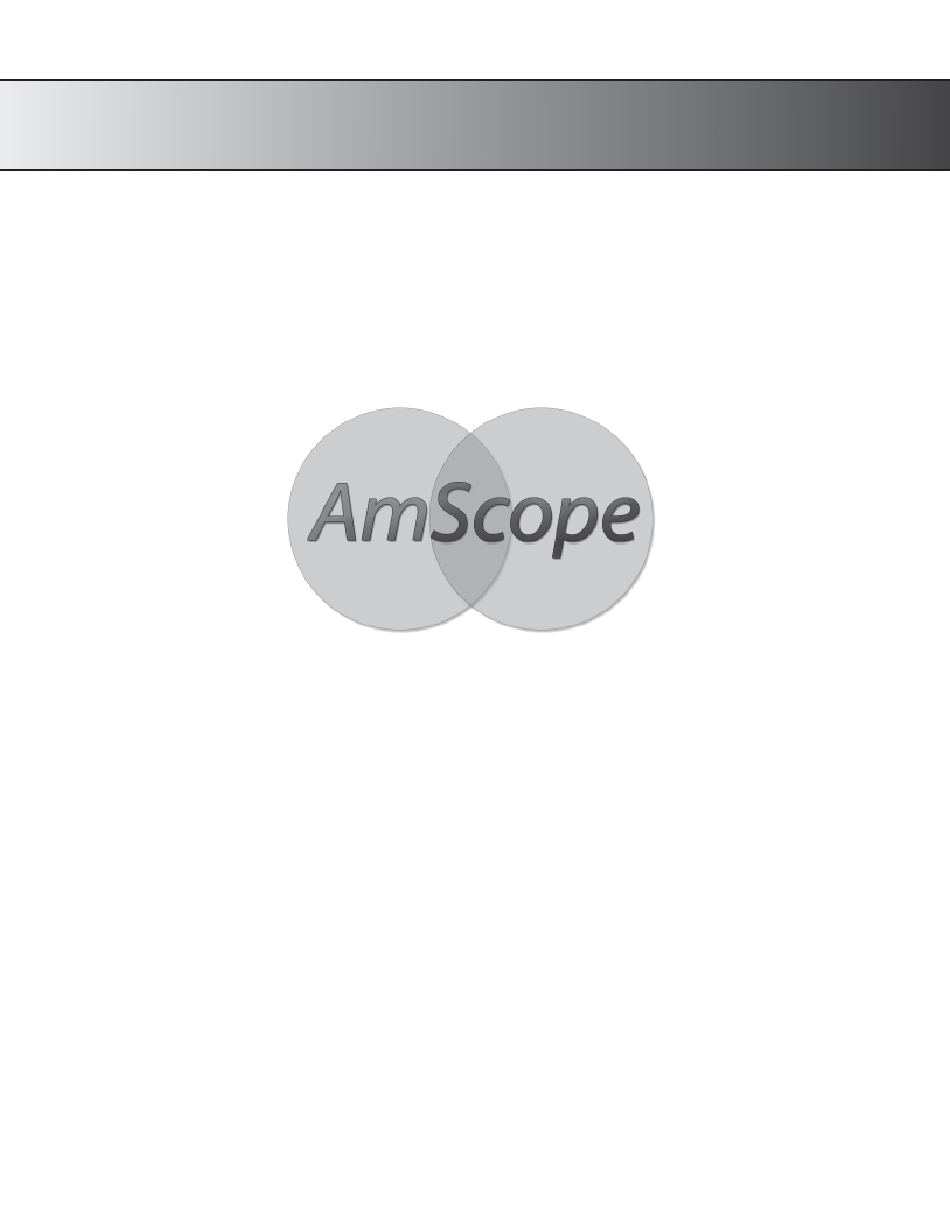

- Page 1 LED-144 Series User’s Manual...
- Page 2 LED-144 Series Table of Contents Before Use ................................3 Introduction ............................. 3 Safety Precautions .......................... 4 Models ..............................5 LED-144 ..........................5 LED-144A..........................5 LED-144S ..........................6 Assembly ............................7 Adjusting Light ..........................7...

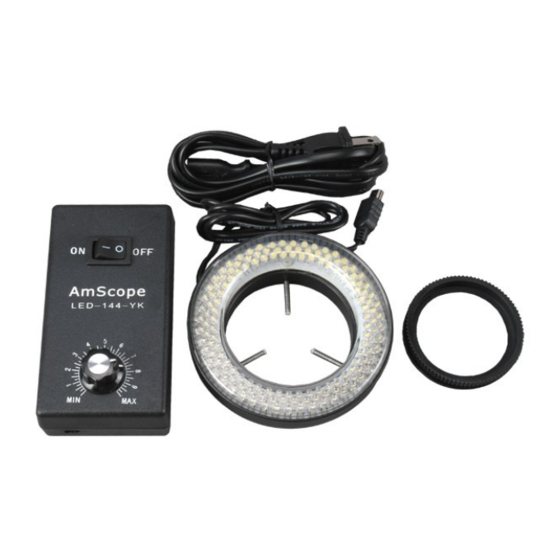

- Page 3 Before Use Introduction Congratulations on the purchase of your new AmScope microscope! This manual is designed for the LED-144 series microscope ring light with adapter. With variable intensity control, it provides cool, even, intense and focused shadow-free illumination. It is an ideal durable cool light source for all stereo microscopes, especially for gemological, coin and gem/jewelry microscopes.
- Page 4 LED-144 Series Before Use Safety Precautions 1. As the microscope is a precision instrument, always handle it with care, avoiding impact or abrupt movement during transportation. Do not shake the package. 2. Do not place the microscope in direct sunlight or in high heat. Keep it indoors in a dry and clean place with temperatures between 32-100 degrees F (0-40 degrees C), and in maximum relative humidity of 85%.
- Page 5 LED-144 Series LED-144 LED-144A...
- Page 6 LED-144 Series LED-144S...
- Page 7 LED-144 Series Assembly The ring light has 2-1/2" (64mm) inside and 4" (100mm) outside diameters. It works with power supplies from a 110-220V and comes with a 1-7/8" (48 mm in diameter) ring adapter. 1. Screw the ring adapter into the base of your microscope’s objective.
