EtherWAN EG97000 Series Installation Manual

EG97000 Series Layer 3 Hardened Managed Ethernet Switch
Installation Guide
1
Unpacking
Open the carton and unpack the items. Your
package should include:
EG97000 Ethernet switch
2 Mounting brackets
12 Mounting screws
1 Console cable
1 AC Power Cord (optional)
Quick install guide
If any items are missing or damaged, notify your
EtherWAN representative. If possible, save the
carton and packing material in case you need to
ship or store the switch in the future. The full
product manual can be downloaded from:
https://www.etherwan.com/support/product/E
G97000-series
2
What Else You Need
Shielded twisted pair cables and corresponding
shielded RJ45 connectors
Appropriate SFP cable and SFP modules for SFP
ports
EG97000
12/18/2018
3
Select a Location
Installation: Rack-mount. Use the enclosed screws
and brackets to mount the switch in an open or
enclosed rack.
Select a power source within 6 feet (1.8 meters).
Choose a dry area with ambient temperature
between -40 and 75ºC (-40 and 167ºF).
Be sure there is adequate airflow.
4
Connect to the Data Ports

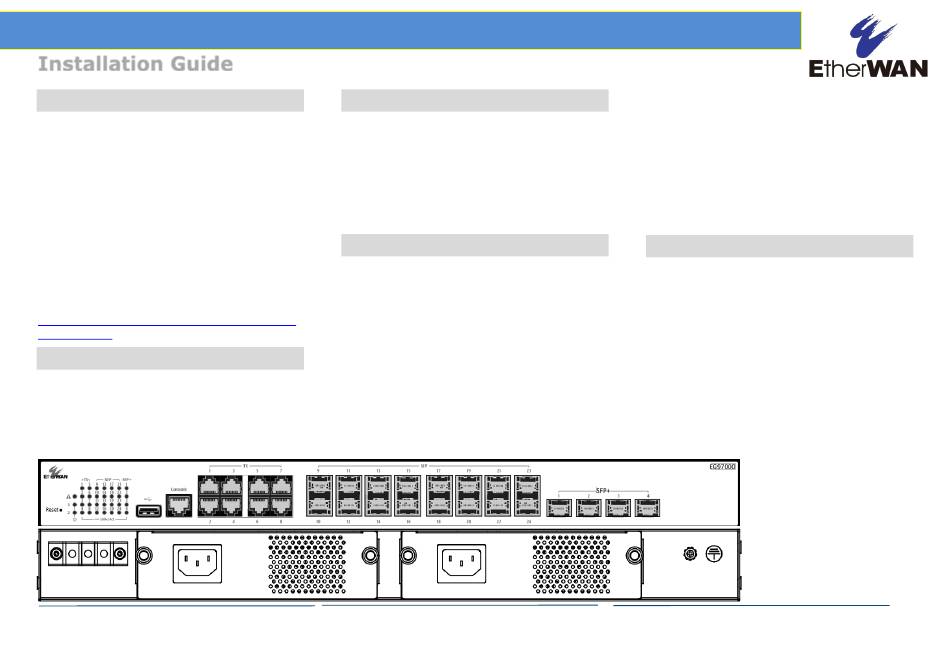

The EG97000 has the following ports:
8 x 10/100/1000 Mbps copper ports
16 x 100/1000 SFP slots
4 x 1/10G SFP+ slots
1 x RJ-45 Management port
1 x USB port
100/1000BASE-TX Ports
Ports 1 to 8 are gigabit copper ports and can be
connected to routers, other switches, or end
devices.
Copyright 2018 EtherWAN Systems, Inc.
All Rights Reserved
1 Gbps SFP Slots
Ports 9 – 24 are 1 Gbps SFP slots, for connection
with stackable switches to form multiple fiber
interconnections. Use appropriate SFP tranceivers.
1/10 Gbps SFP+ Slots
SFP+ ports 1 – 4 are for uplink connection to core
networks. Ensure that the same type of transceiver
is used at both ends of the link and that the correct
type of fiber cable is used.
5
Connect Power
Terminal Block
If your EG97000 comes with AC power cables,
connect the cables into the power modules at the
back of the switch. If your switch comes with a DC
or AC terminal block (no cable), then connect the
switch to a suitable power supply using 12 to 24
AWG wire. Redundant power supply is supported.
However, only one power input is required to
operate the switch. Input voltage is 48 VDC or 100 –
240 VAC, depending on model.
Page 1
W70G-EG97000Q1
