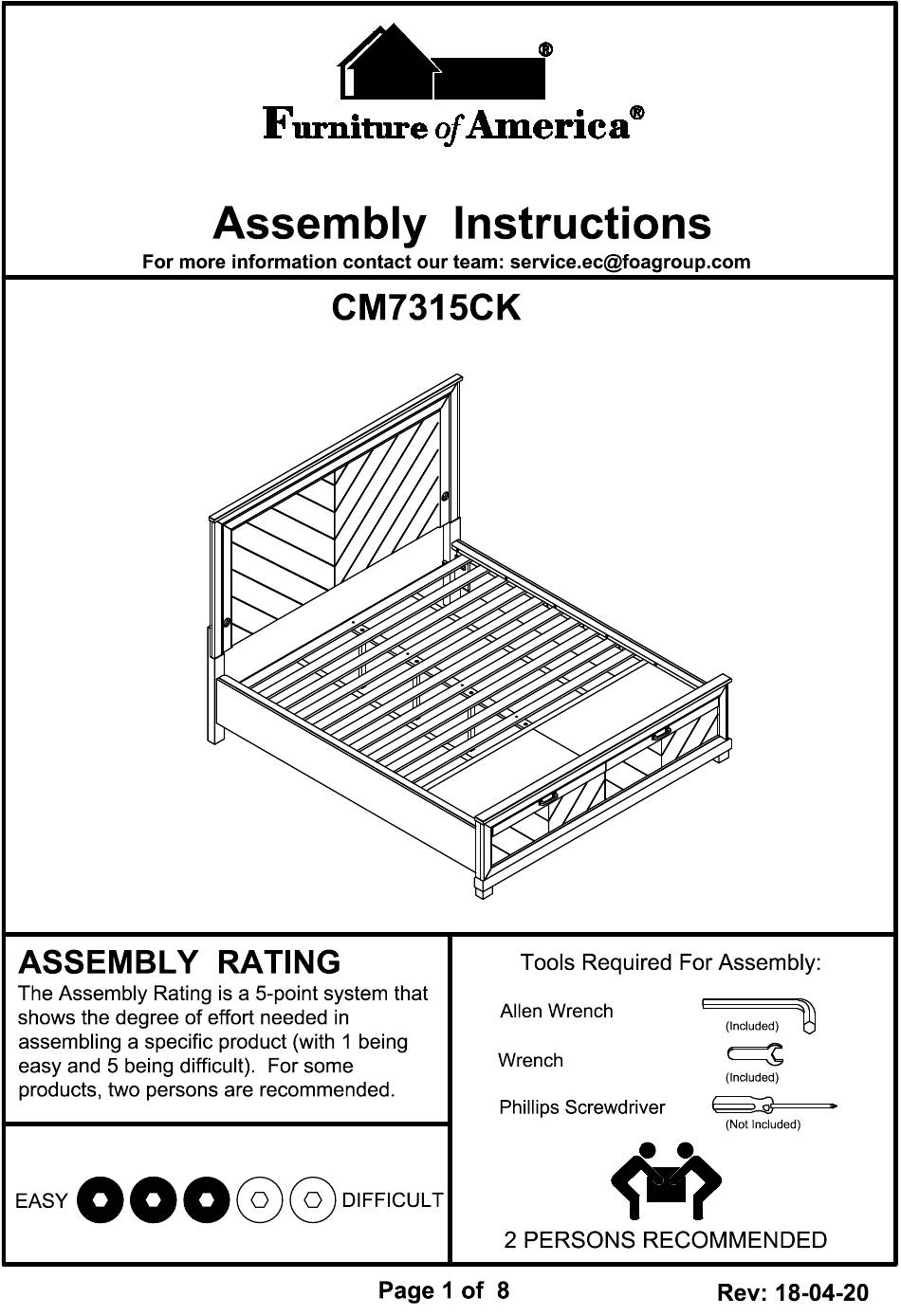

Assembly Instructions
EASY
DIFFICULT
Page 1 of 8
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product
(with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
CM7 315CK
2 PERSONS RECOMMENDED
Tools Required For Assembly:
Allen Wrench
(Included)
Phillips Screwdriver
Wrench
(Included)
(Not Included)
Rev: 18-04-20
For more information contact our team: service.ec@foagroup.com
Advertisement
Related Manuals for Furniture of America CM7315CK
Summary of Contents for Furniture of America CM7315CK
- Page 5 2) Align HB legs (#2R/L) to the holes of the headboard (#1), then secure by using bolts (#A) with washers (#B,C). 1) Align HB support (#5) to the holes of the HB legs (#2R/L), then secure by using bolts (#A) with washers (#B,C).
- Page 6 Align slat center support (#9) to the holes of the slat kit (#6), then secure by using screws (#E). Attach slat support legs (#8) to the holes of the slat center support (#9). Adjust the leveler of the support legs (#8) according to ground level.
- Page 7 Attach threaded studs (#F) to the holes of the headboard (#1) and footboard (#3), then align side rails (#4) to the threaded studs (#F) of the headboard (#1) and footboard (#3). Secure by using washers (#I) and hex nuts (#G). Align slats to the side rails, then secure by using screws (#E).
- Page 8 Align top bed rails (#10) to wash side rails, then secure by using bolts (#K) with washers (#L,M). Place dusty panels (#11) to the bed frame.
