Traction Drive (Operating Table Version Mb/Mbw) - Trumpf TruSystem 7000 Instruction Manual

Travel Behavior
21.5

Traction drive (operating table version MB/MBW)

90

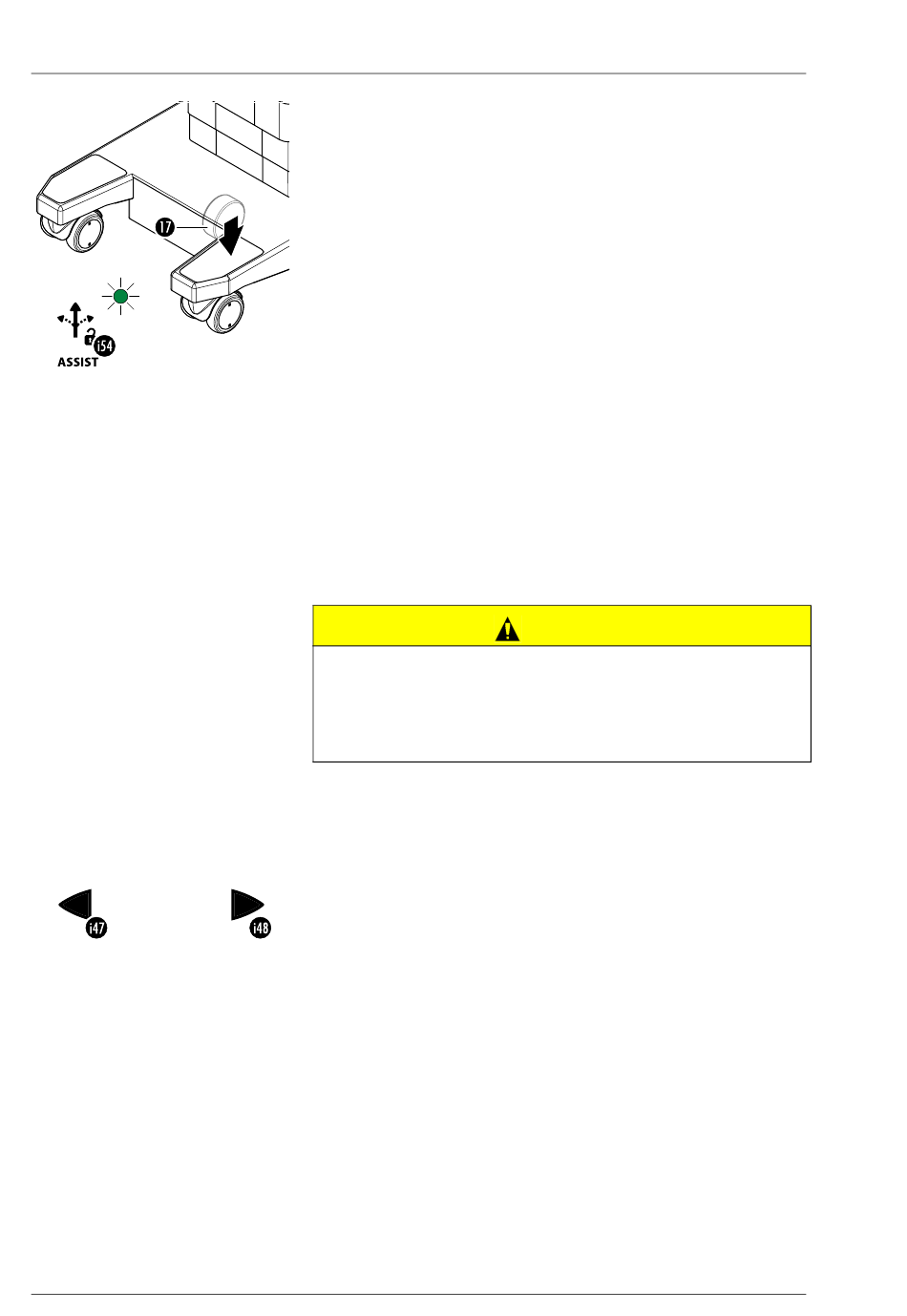

The signal will sound intermittently until the additional
wheel [17] in the middle under the running gear is extended.
Indicator [i54] on the column keypad lights up. The
appropriate status pictograms are visible in the remote control
display.
3. The operating table can be rotated in place or moved.
The operating table traction drive, variant MB/MBW, is located on
the 5th wheel in the center under the running gear. It assists the
operator when moving the operating table, particularly with heavy
patients. For safety reasons, the traction drive can only be controlled
using the wired remote control. The speed of the traction drive can
be set individually (refer to section 20 on page 86).
Risk of personal injury. Hazard to the patient!
Monitor and check operating table travel. A defect or malfunction
in the running gear electronics can result in brake support failure. If
necessary, apply the operating table brakes manually (by hand).
1. Set running gear assistance (refer to section 21.4 on
page 89). The travel direction keys are visible on the remote
control.
2. Press and hold the button [i47] or key [i48] on the remote
control until the operating table reaches the target destination.
The operating table may not be pushed actively while in the
driving mode. The speed in driving mode will be automatically
regulated by the motor brake. Actively pushing will increase
the brake resistance and can damage the electronics on the
operating table.
The operating table starts to move slowly in the direction required.
It will achieve its maximum speed after approximately 2 seconds.
Instruction manual Operating table TruSystem 7000 – 1 730 263 – 11/2016
CAUTION!
